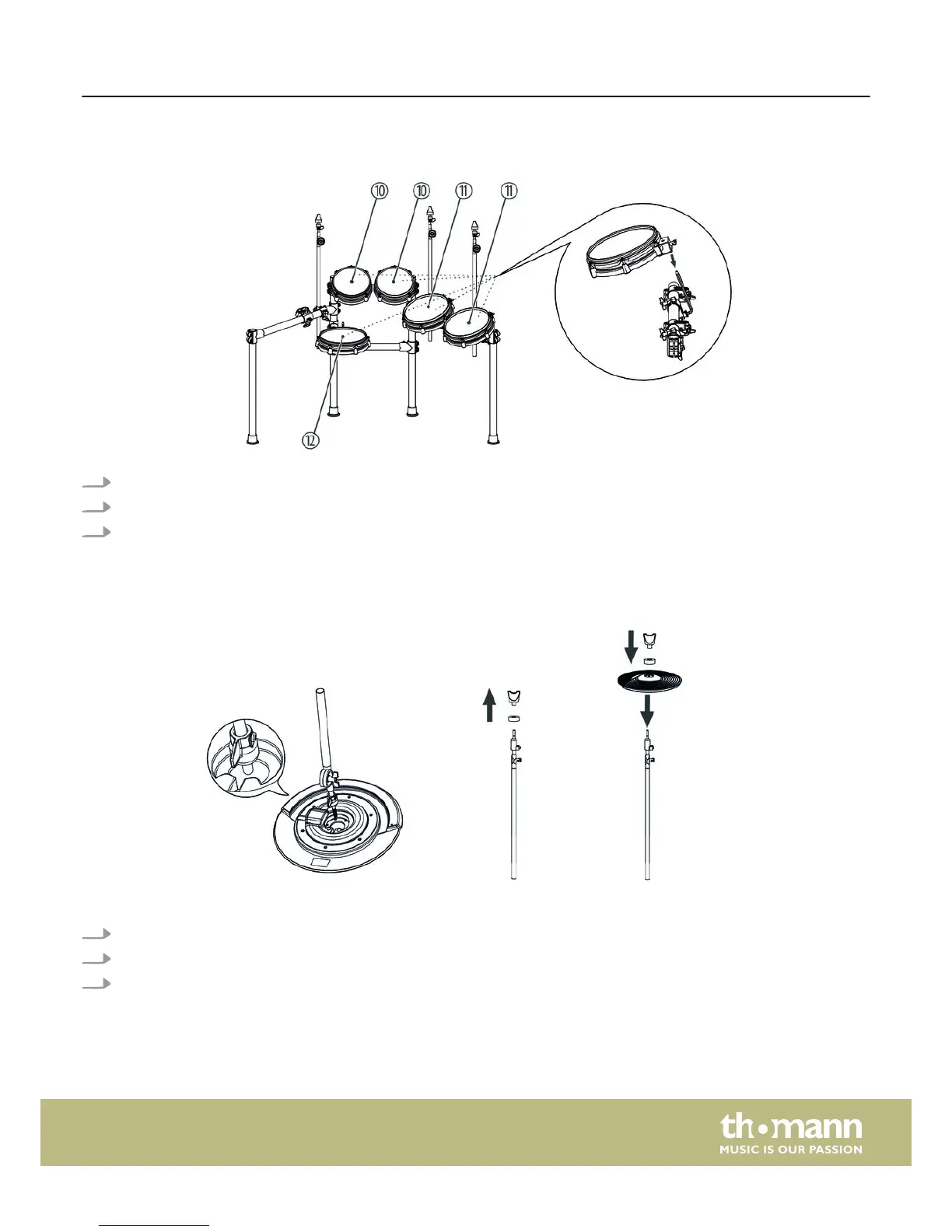

Mounting pads on the rack
1. Attach the mounting brackets to the pads (10, 11, 12). Tighten the wing nuts on the pads by hand first.
2. Then slide the plastic ends of the mounting brackets up to the stop into the designated clamps on the rack.
3. Align the pads on the rack to meet your needs, then tighten the wing nuts of the pad brackets and the bolts of the pad
clamps on the rack evenly.
Mounting cymbals on the rack
1. Unscrew the wing nuts from the cymbal holders and take the felt washers off the holders.
2. Place the cymbals as shown in the figure on the holders.
3. Place the felt washers on the cymbals and fix the cymbals with the associated wing nuts on the holders.
Assembly
MPS-850
11
