Assembling the rack
CAUTION!
Danger of cuts on hands and fingers
When connecting the parts, take care for sharp edges on the metal tubes, screws etc.

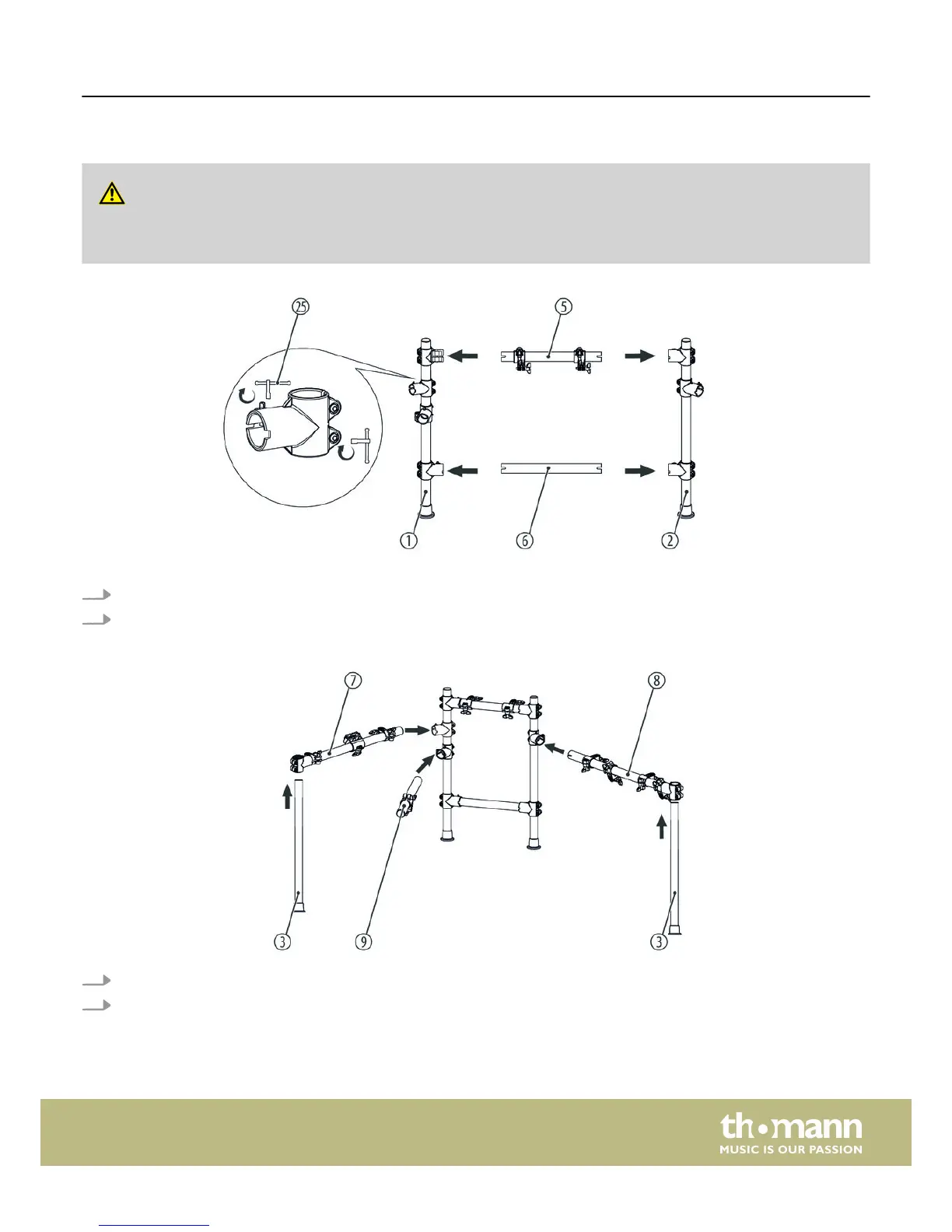

1. Attach the horizontal connection tubes (5, 6) to the lateral support tubes (1, 2).
2. Then tighten the mounting screws with the drum key (25).
1. Attach the two side crossbeams of the rack (7, 8, 9) in the provided mounting clamps.
2. Attach the crossbeam support tubes (3) in the provided mounting clamps. Make sure that the ends of the support tubes (3)
are resting on the floor.
Assembly
MPS-850
9
