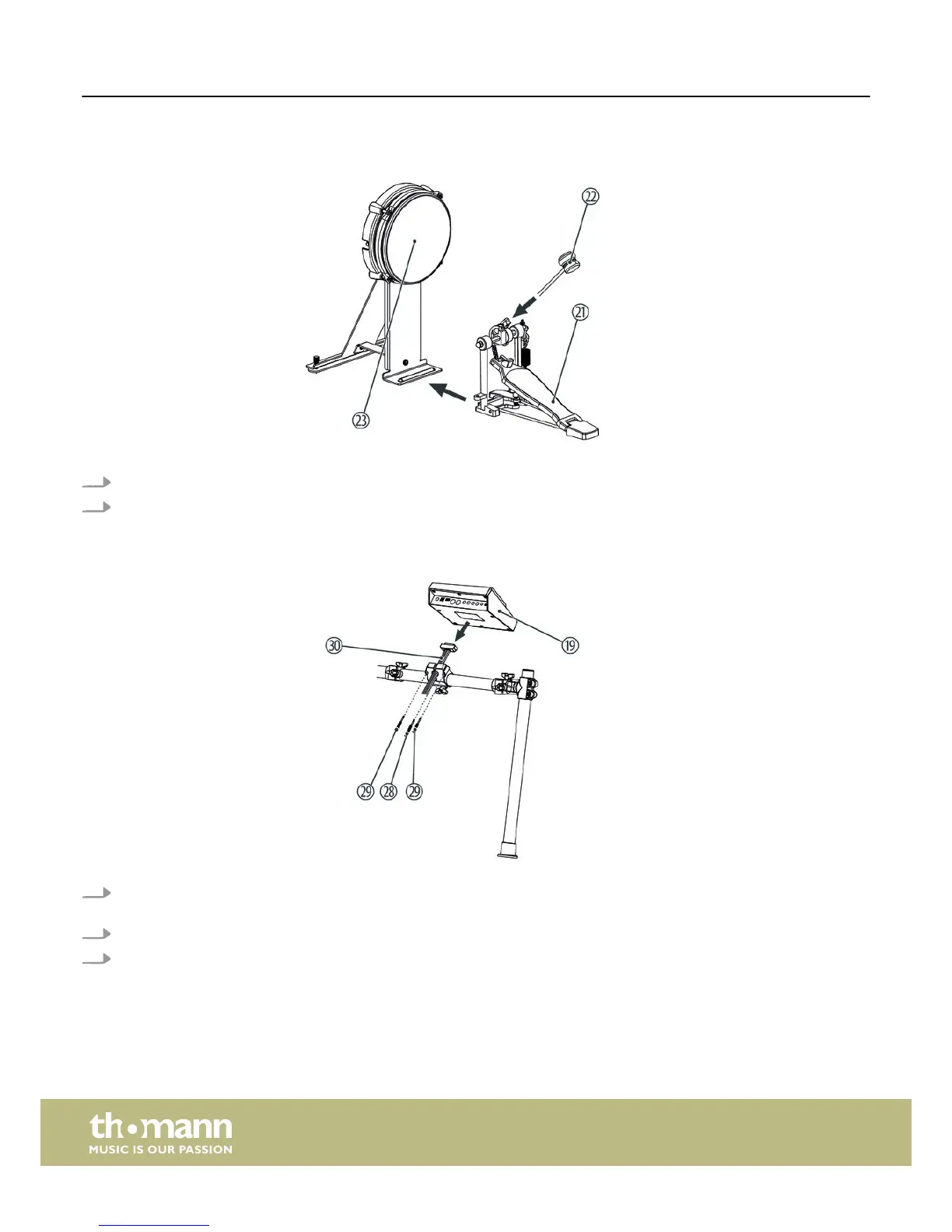

Setting up the bass drum pedal
1. Snap the two metal rods into the holes provided on the frame of the bass drum pedal.
2. Place the beater (22) into the hole provided on the rotary head of the pedal (21) and tighten the clamp with the drum key.
Mounting the drum module on the rack
1. Put the e-drum module (19) up to the stop into the free clamp of the crossbeam. Thread the multi-cable (30) through the
clamp and insert the sub-D connector into the corresponding socket of the drum module.
2. Tighten the thumb screws (28, 29) on the clamp.
3. Align the module and tighten the wing nut of the clamp.
Assembly
