thomann Stairville DMX Invader 1024 NET - Connections in DMX Mode

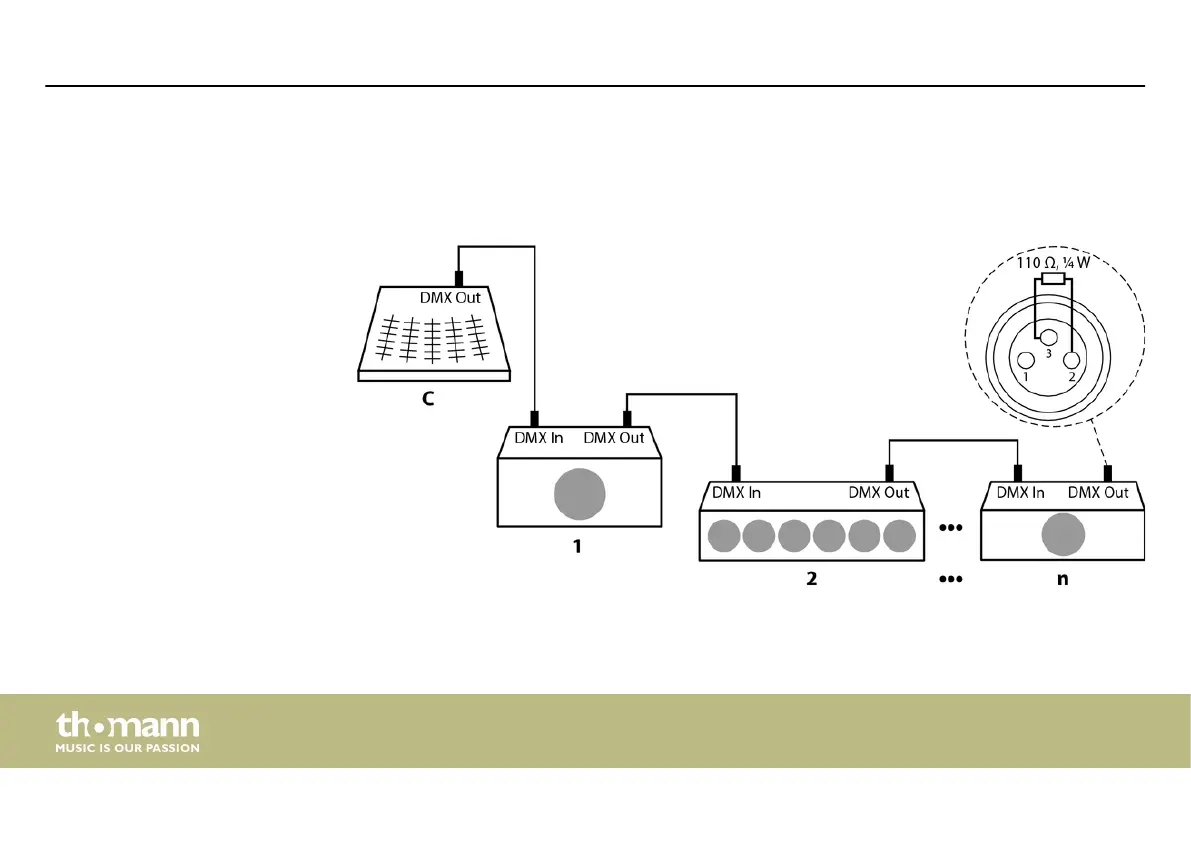

Connect the DMX output of the device (C) to the DMX input of the rst DMX device (1). Con‐
nect the output of the rst DMX device to the input of the second one, and so on to form a
daisy chain. Always ensure that the output of the last DMX device in the daisy chain is termi‐
nated with a resistor (110 Ω, ¼ W).
Connections in DMX mode
Installation
DMX controller
18
