DRIVE MOTOR 2.12

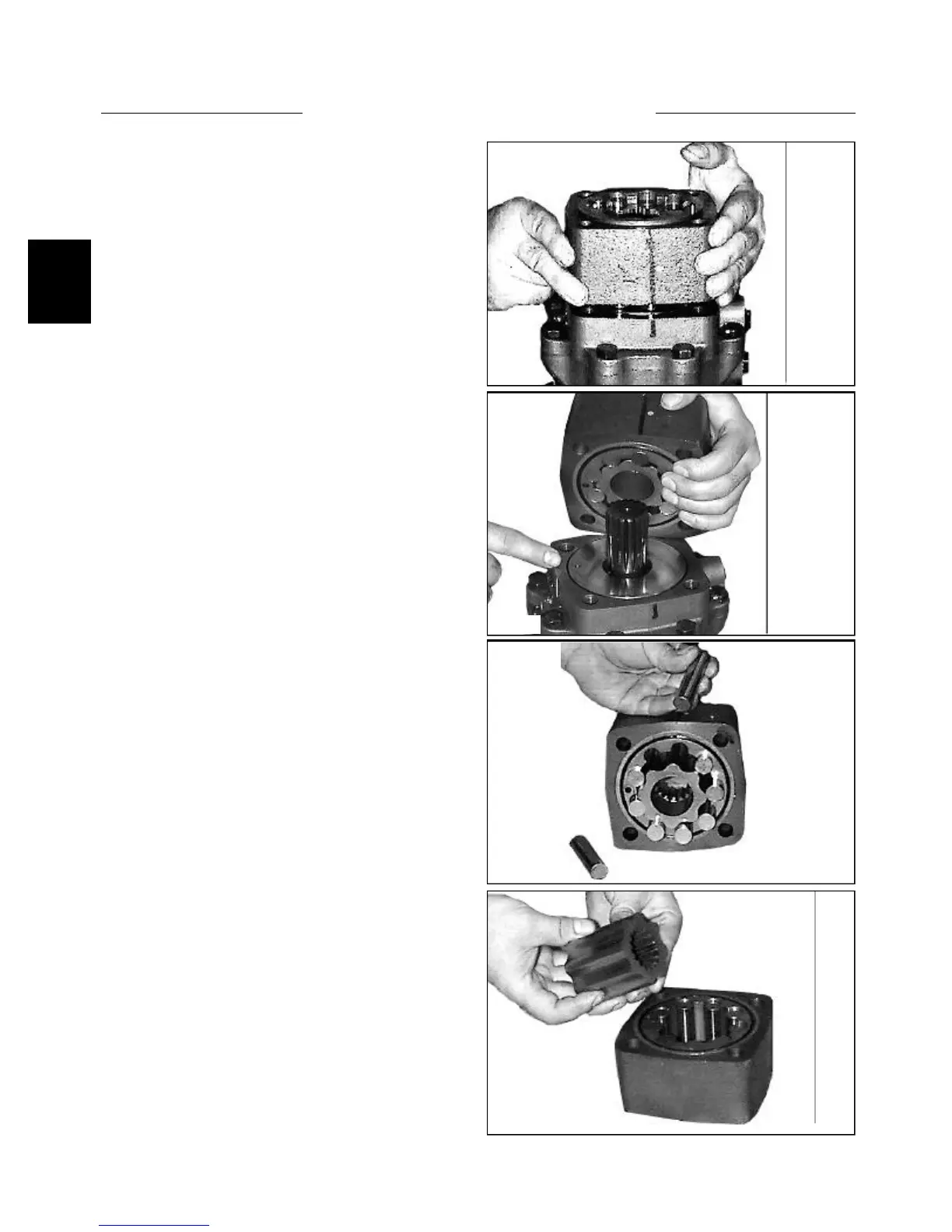

13 Separate the geroler section from the rest of the
motor. (fig. C2300, C2303) Place your fingers between
the sections as you lift the geroler section to prevent the
rollers and gear from spilling out.
C2303
C2300
C2301
C2302
Disassembly (cont’d)
14 Inspect the gears and rollers for wear such as scratch-
es and pitting. (fig. C2301, C2302) Replace worn parts as
required. Do not mix the position of the rollers in the ger-
loer section housing.
