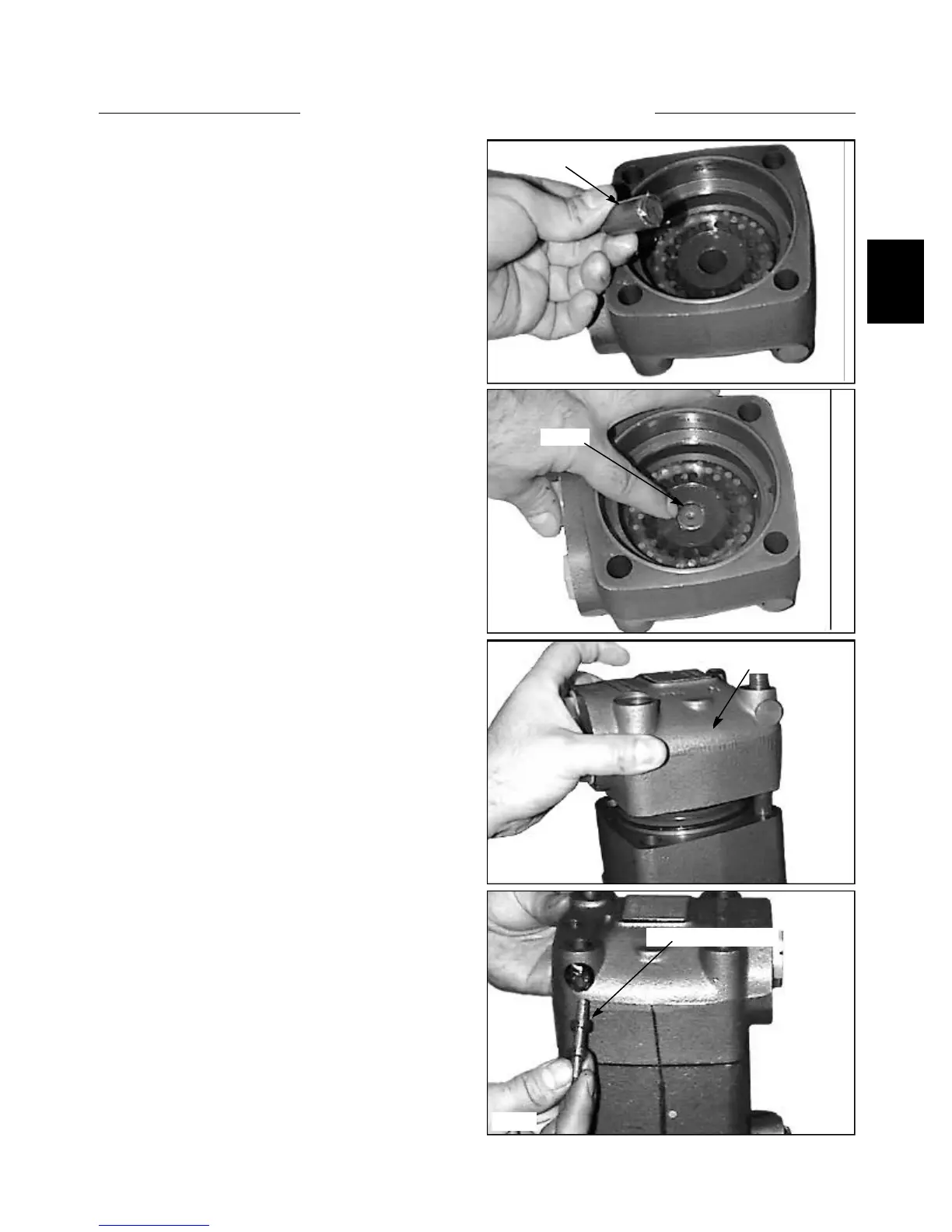

Assembly (cont’d)
DRIVE MOTOR 2.12
22 Apply petroleum jelly to the spacer. (fig. C2337)
Install the spacer to the valve housing. (fig. C2338)
23 Install the valve housing to the drive motor. (fig.
C2339).
24 Install the shuttle valve piston. (fig. C2294).
Shuttle valve piston
Valve housing
Spacer
Spacer
