AXLE ASSEMBLY 3.6
9 Place the axle sprocket into the final drive housing
with the hub facing toward the bearing race area. (out-
side)

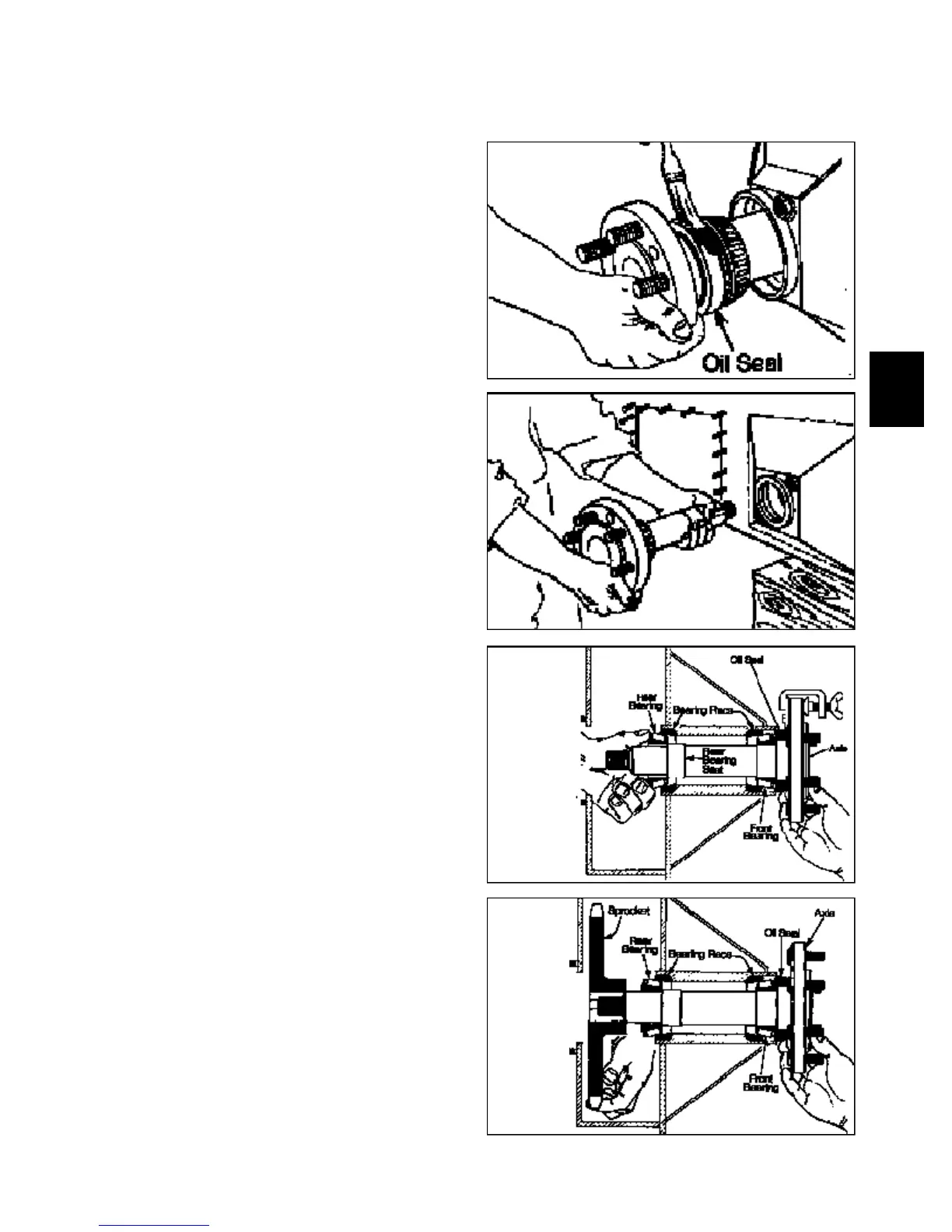

10 Apply gasket sealant to the outer edge of the axle oil
seal. (fig. C212) Take care, make sure none gets on the
bearing surface.
C220
C225
C212
C226
13 Start the axle into the drive sprocket. Place the axle
washer and castle nut onto the threaded end of the axle.
12 Place the rear (inside) axle bearing onto the axle.
11 Guide the axle into the final drive housing. (fig.
C220)
