2-38

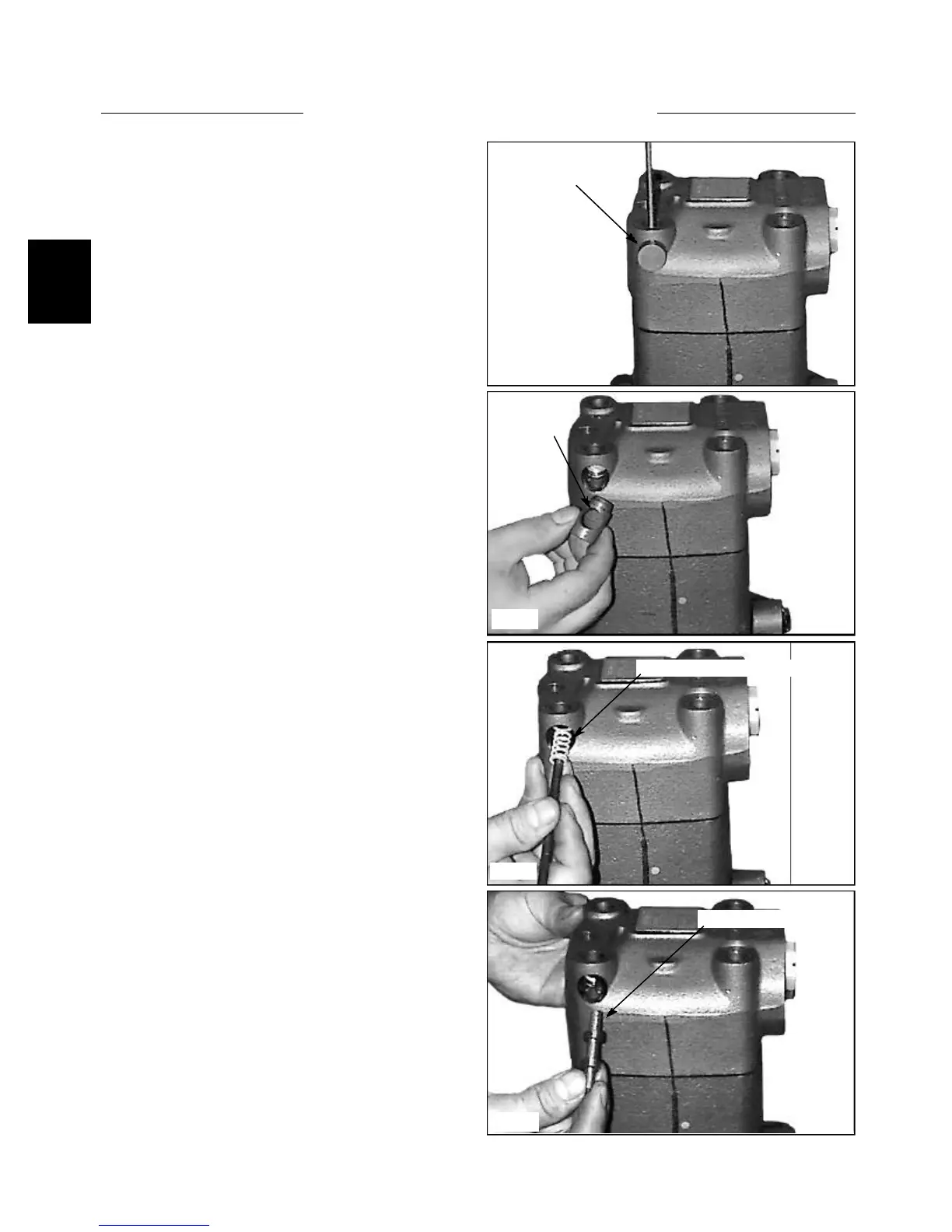

6 Insert a small screwdriver into the mounting holes of
the valve housing assembly and remove the 2 shuttle
valve plugs, one each side. (fig. C2291, 2293)
DRIVE MOTOR 2.12
C2291
C2292
C2294
C2293
Shuttle
valve plug
Disassembly (cont’d)
Remove shuttle
valve plugs
Shuttle valve springs
Shuttle valve poppet
8 Push out the shuttle valve poppet using the screw-
driver. (fig. C2294)
7 Insert a small screwdriver into the shuttle valve plug
hole and retrieve the springs. (fig. C2293) There is one on
either side.
