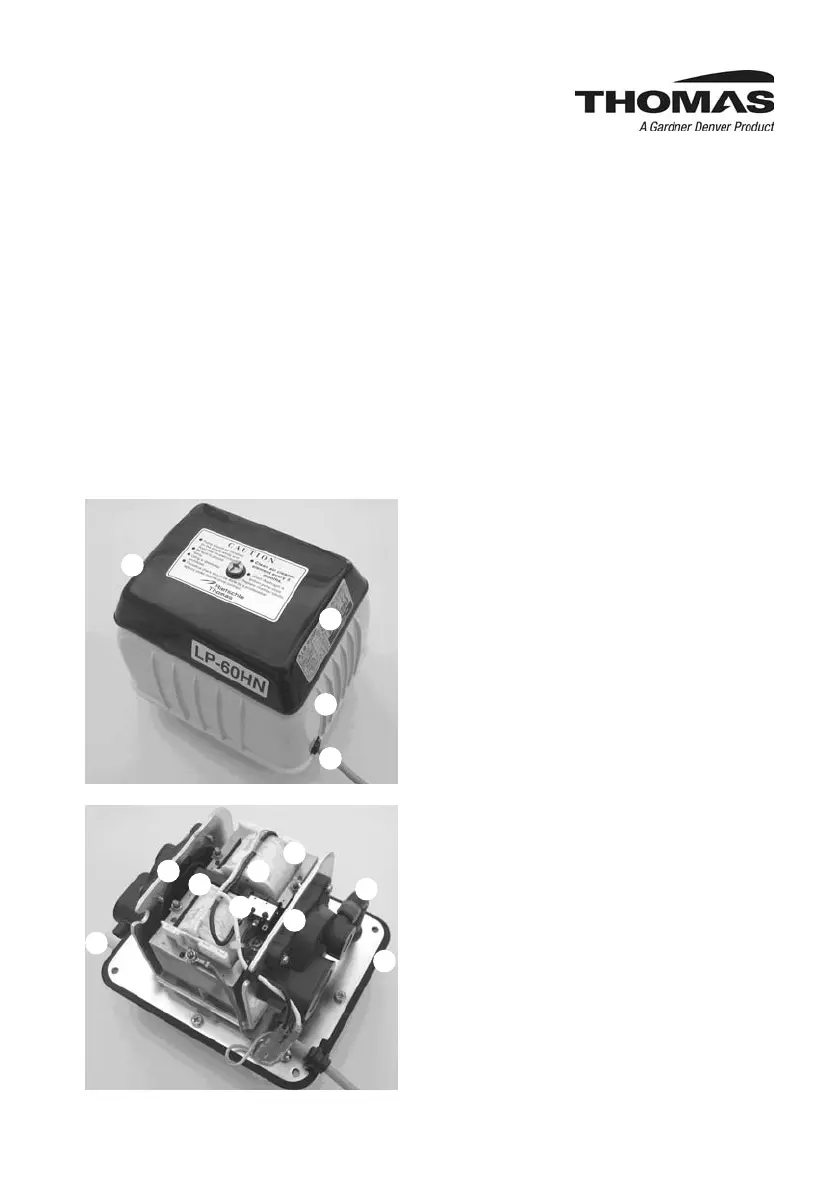

Description of Linear Diaphragm Pump
The following text describes model LP-60HN.
The driving unit (coil, iron core and armature) is open, as in models LP-30A, LP-40A,
LP-60HN and LP-60EN.
Models LP-80HN, LP-100H, LP-120H, LP-80E, LP150HN, LP-200HN, LW-200, LW-
240, LW-300, LW-350 and LW-400 employ a closed driving unit.
Integrated diaphragm protection switches are another feature that differs through the
series. These differences are presented in the faults chapter.
1 Filter cover
2 Label
3 Housing
4 Cable with plug
5 Lower housing
6 Outlet port
7 Diaphragm
8 Armature
9 Coil
10 Iron core
11 Diaphragm protection switch
12 Chamber block
13 L-Tube pieces
14 Lower housing gasket
1
2
3
4
5
6
7
8
9
10
11
12
13
14
