TS 970 Transfer Switch
PM163 REV 0 20/02/05 20 Thomson Power Systems

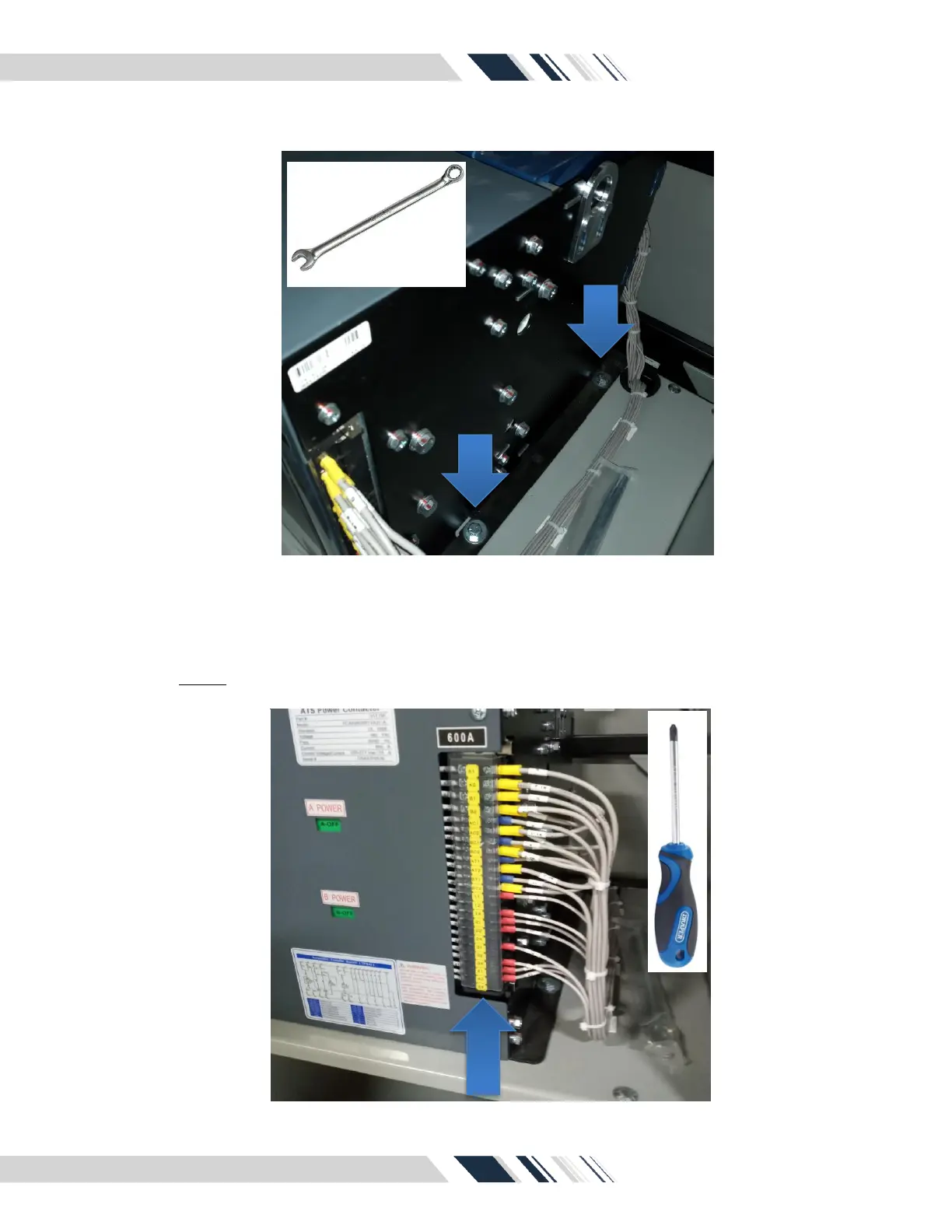

2. Remove all bolts, washers and nuts holding the base of the power contactor using a 3/8”
wench tool.
3. Disconnect all control wiring by loosening all wire terminals of the power contactor. Use a
cross screw driver. Ensure all wires are successfully removed.
NOTE: Please note wire locations before disconnecting for proper re-installation.
