TS 970 Transfer Switch
PM163 REV 0 20/02/05 21 Thomson Power Systems

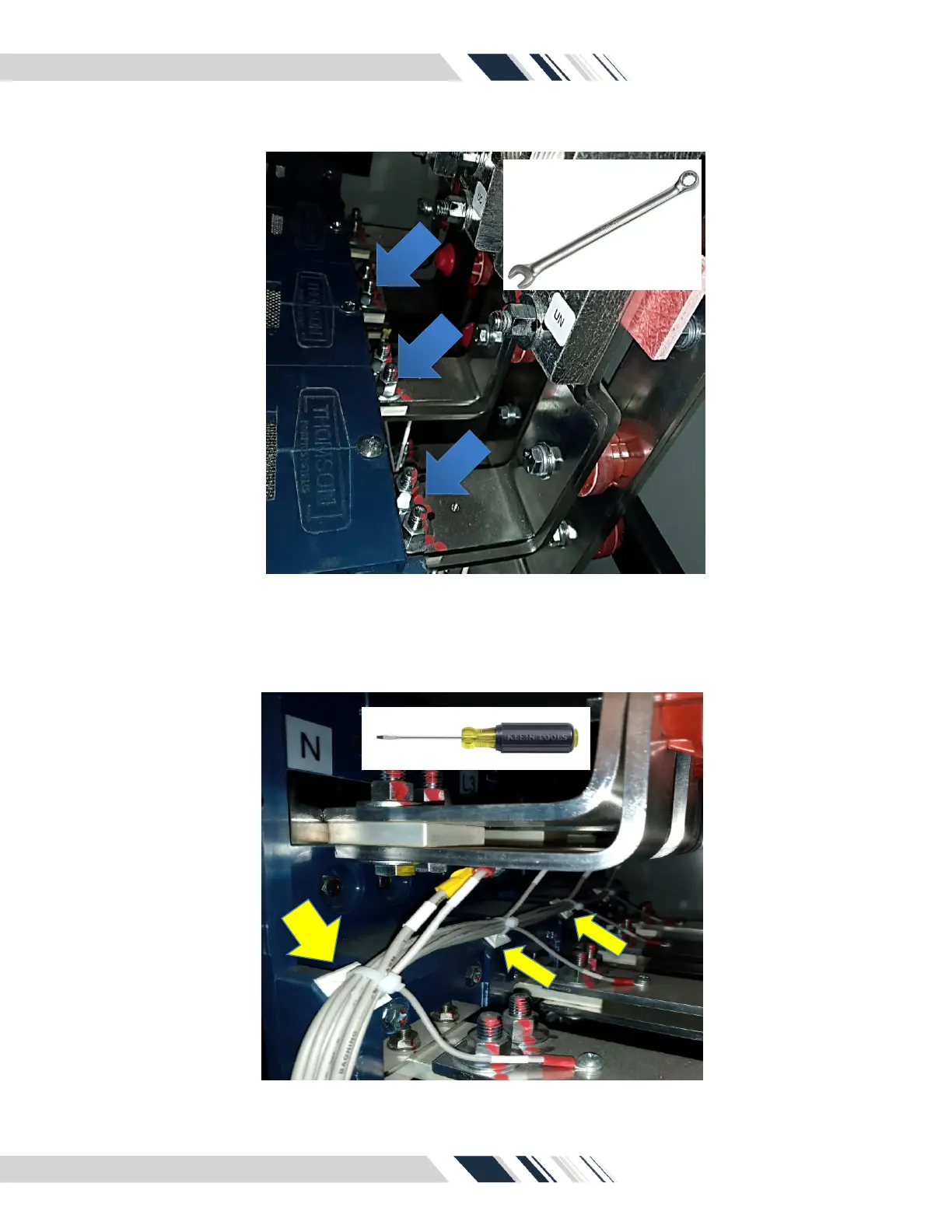

4. Remove all bolts holding the busbars to the power contactor as shown in figure below. Use
a 3/8” wrench.
5. Using a flat screw driver, de-attach all sticky pads from the power contactor to release it
from the harness.
STEP 4
STEP 5
