Installation Instructions
26
10. Electrical Installation
Power Supply Cord Kit
Electrical Requirements, Connection & Grounding Guidelines
** The Plug is not included in the package. Please purchase this plug from your local appliance store.
**
This appliance is manufactured ready to be installed with a 4-wire cord set.
A 3-Pole, 4-Conductor Cord Kit with NEMA Type 14-50R, 50 Amperes dedicated circuit and marked
for use with ranges is recommended by the manufacturer for Thor Kitchen Dual Fuel Ranges.
HRD3088U and HRD3606U require a minimum of 30 Amperes with 220 Volts;
HRD4803U requires a minimum of 0 Amperes with 220 Volts.

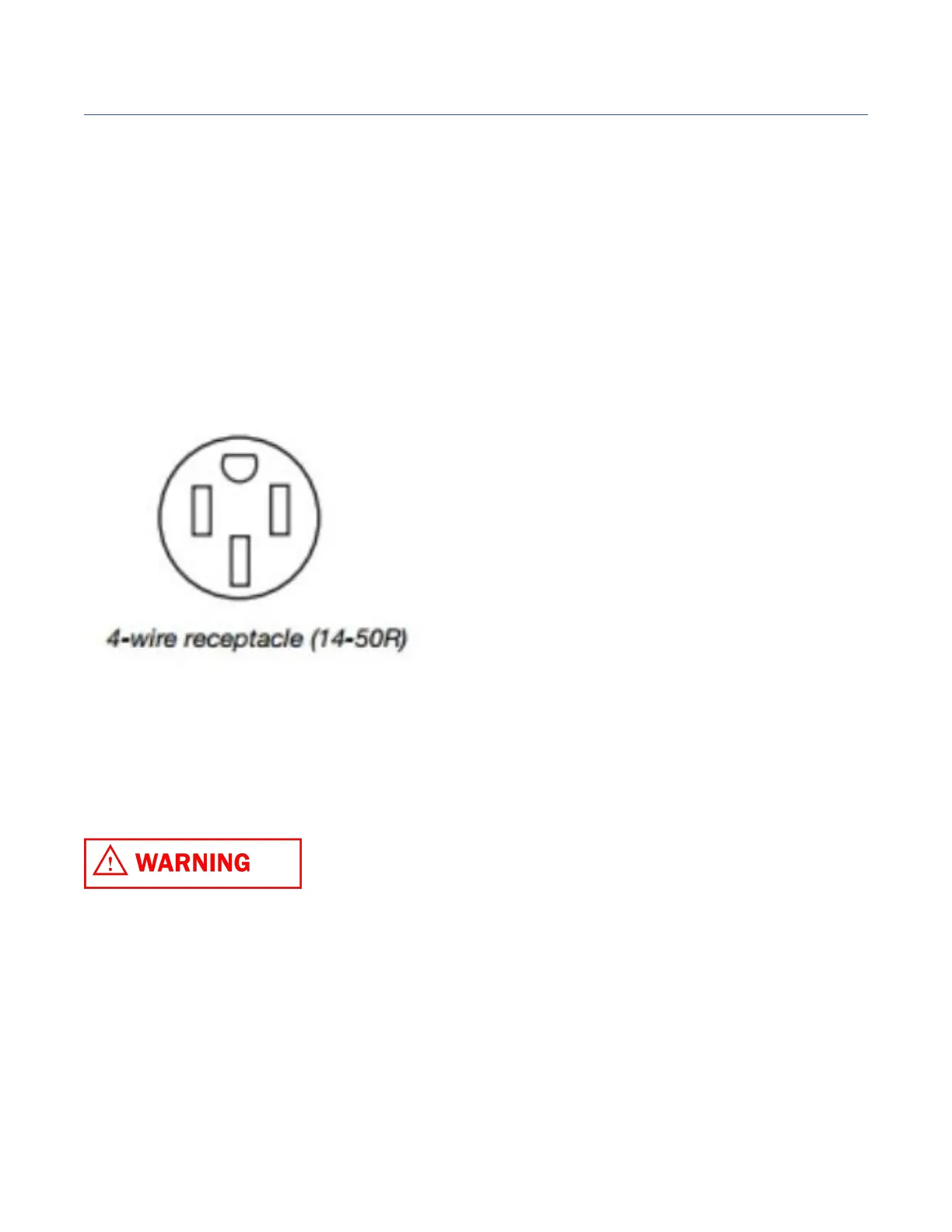

We recommend A 3-Pole, 4-Conductor Cord Kit with NEMA Type 14-50R.
Risk of fire or electrical shock exists if an incorrect size range cord kit is used, the Installation
Instructions are not followed, or the strain relief bracket is discarded.
Terminal on end of wires must be either closed loop or open spade lug with upturned ends. Cord must
have strain-relief clamp.
