Installation Instructions
28
Electrical Connection

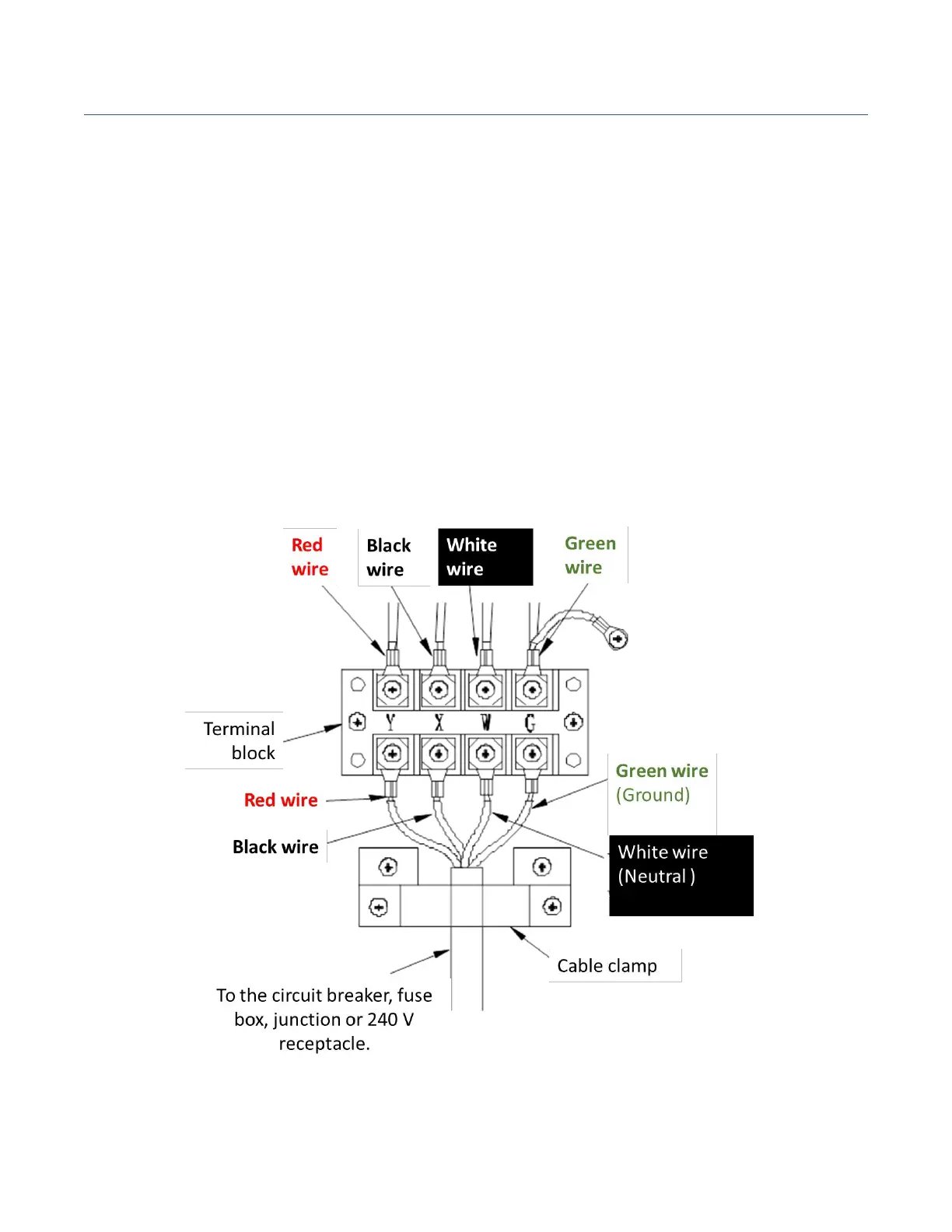

Four Conductor Wire Connection to Range
1. Remove the screws at the lower end of the rear access cover and take it down to expose range
terminal connection block.
2. Remove the screws to lose the cable clamp and pass through the four-conductor wire from the
bottom of the range.
3. Loose the screws on the terminal block and connect the wire to terminals, after then, tighten
the screws of cable clamp and terminal block, please make sure that match the wire and
terminals by color.
4. Put back the terminal cover and tighten the screws.
