Replacing the Burner Parts
44
15. Replacing the burner parts

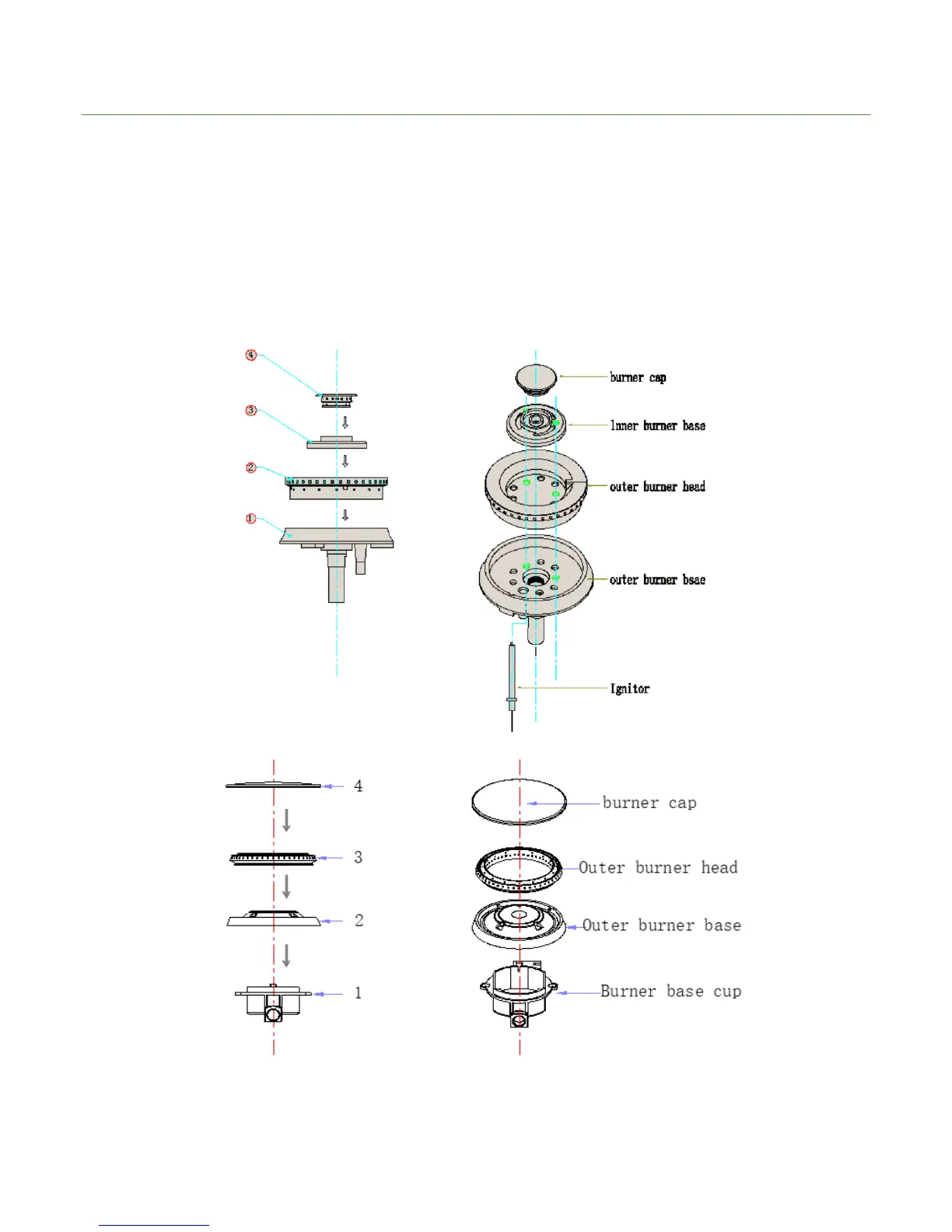

This diagram shows how to replace the burner parts. When replacing the burners, make sure that
the two locating pins on the bottom of the brass flame spreader are properly aligned with the
locating pin holes on the top of the simmer ring.
Incorrect alignment will produce a potentially dangerous flame and poor burner performance such
as sparking/clicking.
