Correct Position for Dual Burner
Here’s the procedure to check the condition for our current burner design. The procedure helps the
electrode to sense the flame correctly.
Step 1

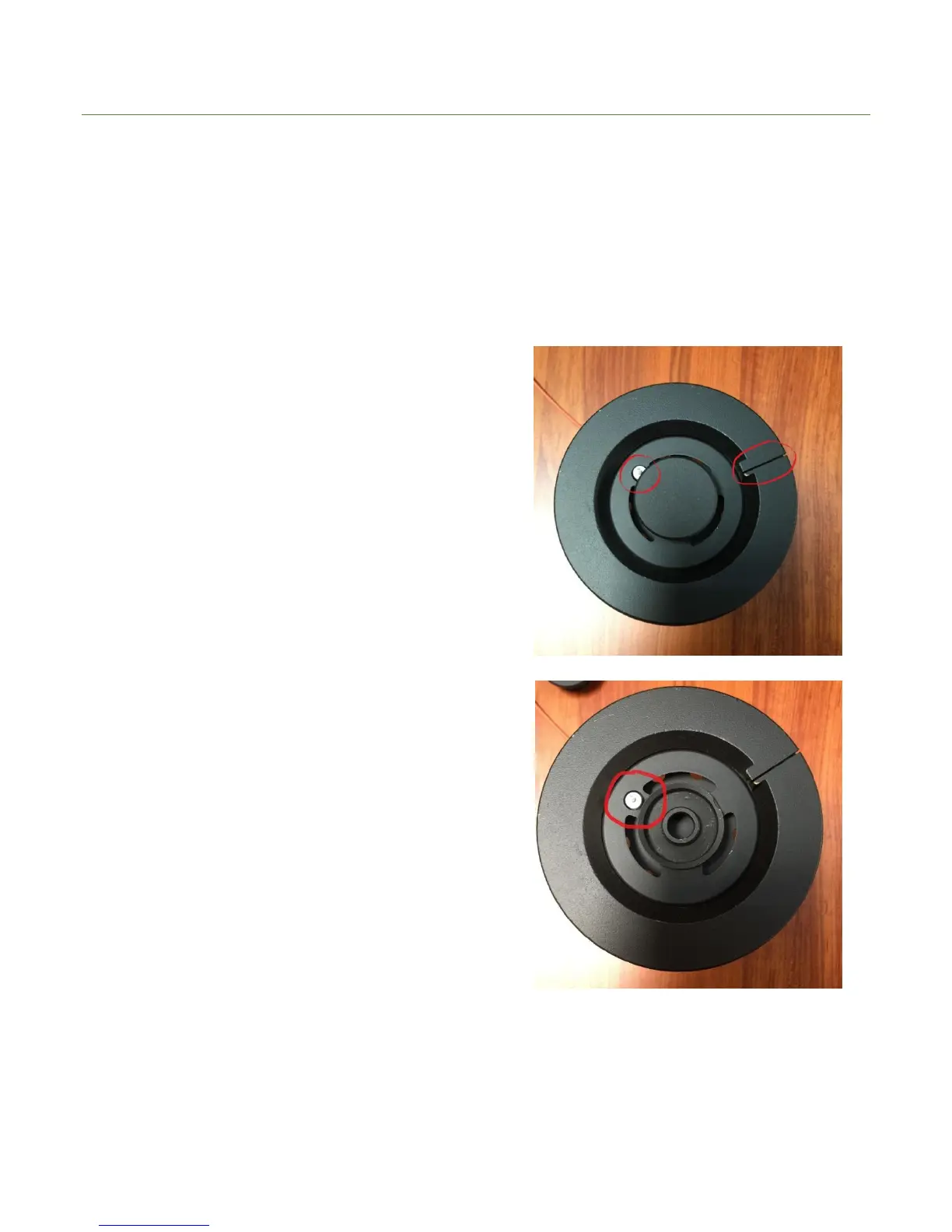

Make sure the Burner Design is correct. Our current
design for the burner is has the electrode on the left
side (10 o’clock) and cross-over on the right side (2
o’clock).
There are four parts for the dual burners.
They are burner cap, flame ring base, flame ring and
burner base.
Step 2
Make sure the electrode is going through the hole on
the flame ring and it is vertical to the surface of flame
ring base.
