Controls and Operations

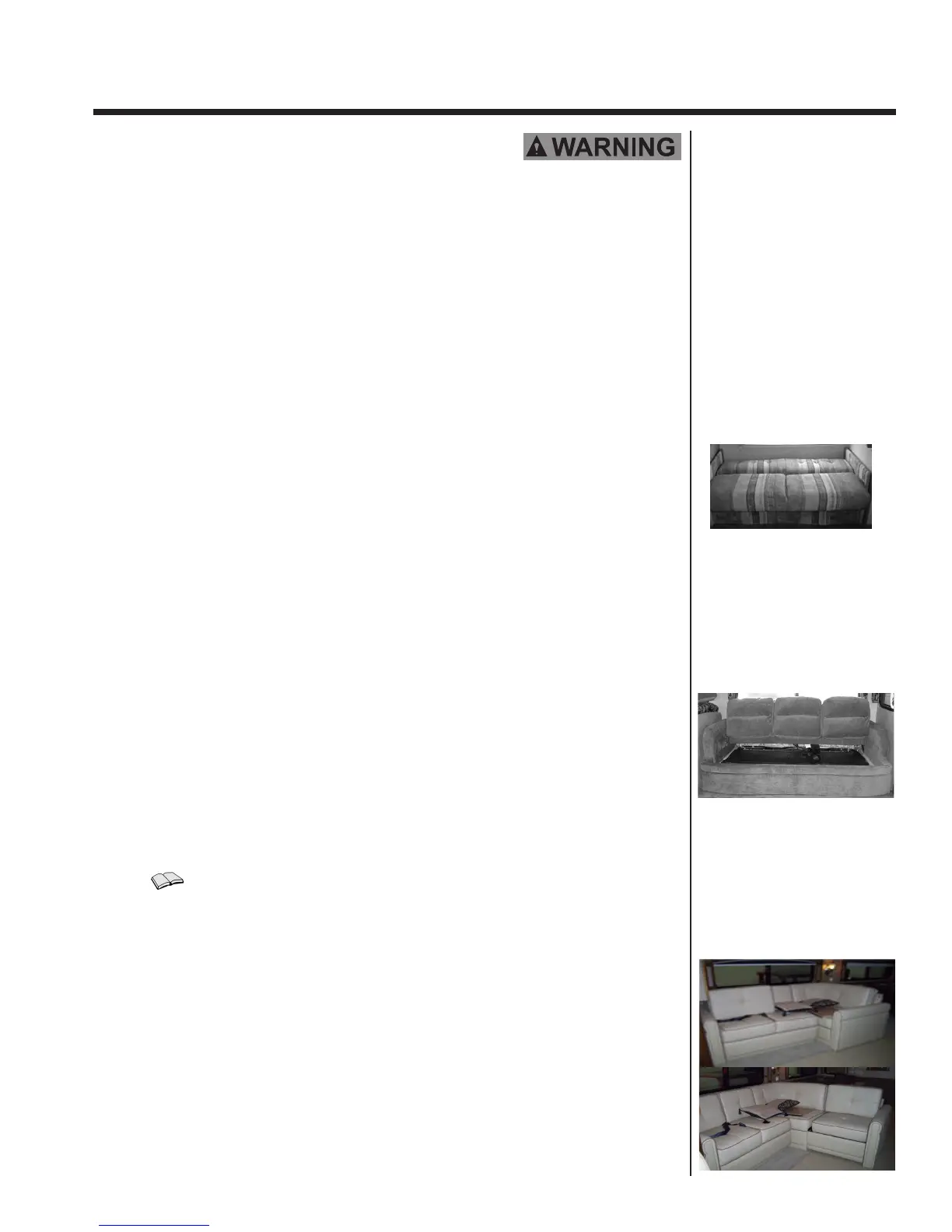

Sofa bed
DO NOT OCCUPY BEDS OR ANY OTHER SEATS THAT
ARE NOT EQUIPPED WITH SAFETY SEAT BELTS WHILE
THE Motorhome IS IN MOTION. DO NOT USE A SEAT
BELT ON MORE THAN ONE PERSON.
The sleeping accommodations in this motorhome are
designed for occupancy only while the motorhome is
parked. All occupants in this motorhome must be seated
at a designated seating position and must wear seat
belts at all times while this motorhome is in motion.
Failure to do so may result in serious injury.
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
SOFAS
Air Hide-A-Bed Sofa
Expandable Lounge
SOFA TO SLEEPER
• Unlatch and remove sofa arms ( if equipped).
• Raise the sofa seat base until the seat base and backrest form a
“V” shape by lifting up from the center of the sofa just below the
seat cushions.
• Pull out and push down on the seat base until the seat base is flat.
• Fold the seat belts out of the way.
SLEEPER TO SOFA
• Lift the seat base up until the seat and back rest from a “V”
shape.
• Push back and down on the seat base.
• Position the seat belts for use.
• Replace the back rest cushions.
SOFA TO SLEEPER
• Remove back rest cushions.
• Pull seat cushion section up and out
• Rotate bottom of seat cushion out and fold legs down.
• Fold back rest down to create platform.
• Unfold air mattress, plug in, fill with air.
SLEEPER TO SOFA
• Deflate and remove air mattress
• Fold the back rest up
• Return the seat to its original position.
• Replace back rest cushions.
Note: Do not fold the air mattress up in the sofa. Damage will
occur.
EXPANDING THE LOUNGE
• Pull up on the switch located on the inside of the sofa arm.
• Pull the end of the sofa out until the expanable section is fully
deployed.
• Remove the seat cushion from the storage area and place it on
the bars making sure that the brackets on the bottom of
the cushions are hooked around the sofa seat bars.
• Put the back cushion in place.
CLOSING THE LOUNGE
• Remove the back cushion
• Remove the seat cushion and return it to the storage area.
• Pull up on the switch located on the in side of the sofa arm.
• Push the end of the sofa back into its original position.
