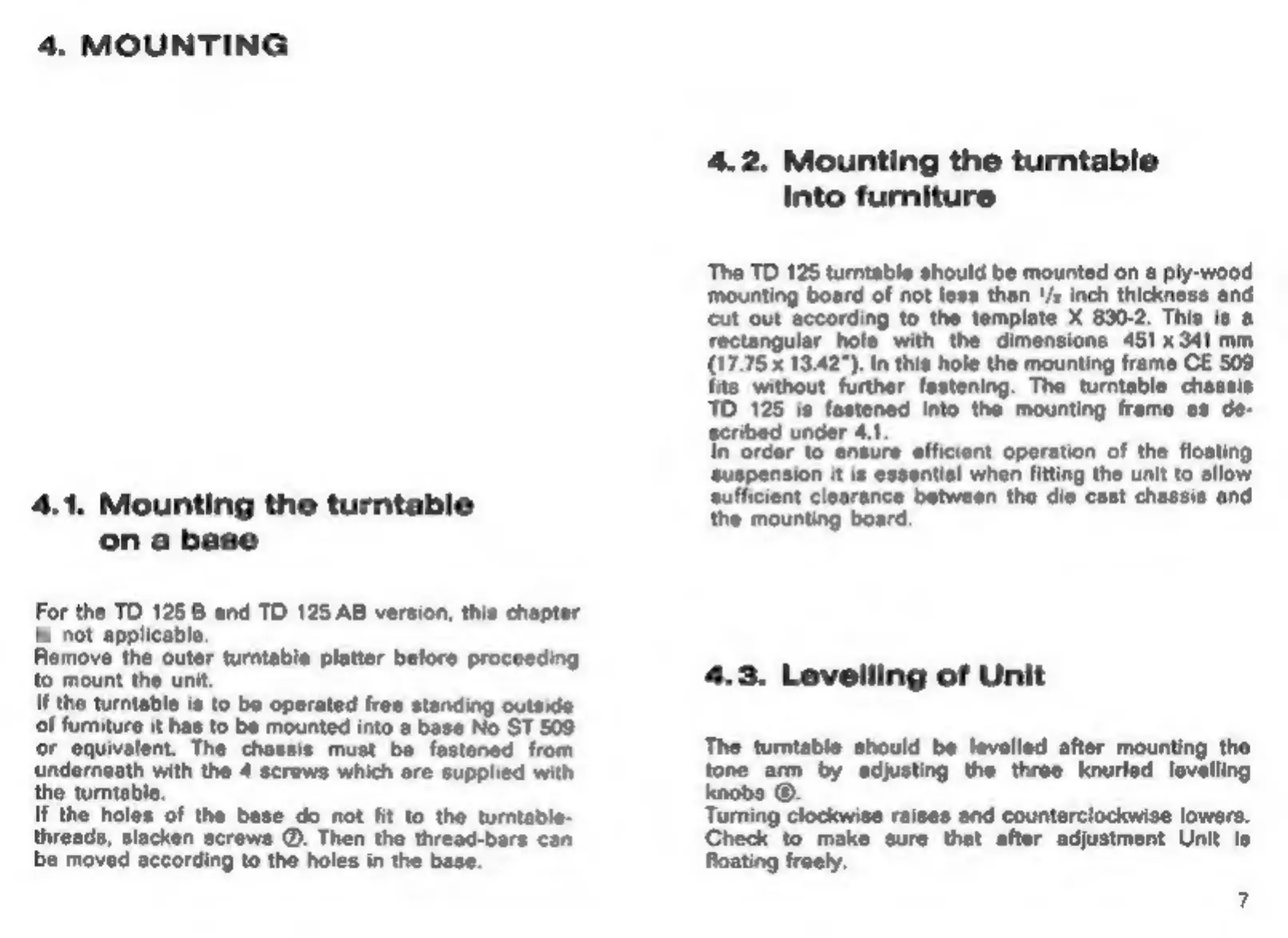

4, MOUNTING
4.1. Mounting the turntable
on a base
For the TD 1258 and TD 125 AB version, this chapter
is not applicable,
Remove the outer turntable platter before proceeding
to mount the unit,
If
the
turntable
is
to
be
operated
free
standing
outside
of
furniture
it
has
to
be
mounted
into
a
base
No
ST
509
or
equivalent.
The
chassis
must
be
fastened
from
underneath
with
the
4
screws
which
ere
supplied
with
the
turntable.
8 of the base do not fit to the turntable-
icken
screws
@.
Then
the
thread-bars
can
be moved according to the holes in the base.
4.2. Mounting the turntable
Into furniture
The TD 125 turntable should be mounted on a ply-wood
mounting board of not less than #/s inch thickne:
‘cut out according to the template X 830-2. This .
rectangular hole with the dimensions 451 x 341 mm
(17.75 x 13.42"). In this hole the mounting frame CE 509
fits without further fastening. The turntable chassis
TD 125 is fastened into the mounting frame as de-
scribed under 4.1
In order to ensure efficient operation of the floating
‘suspension it is essential when fitting the unit to allow
it clearance between the die cast chassis and
inting board.
3. Levelling of Unit
The turntable should be levelled after mounting the
tone arm by adjusting the three knurled levelling
knobs ®.
Turning clockwise raises and counterclockwise lowers.
Check to make sure that after adjustment Unit is
floating freely.
