Compact Scientific Digital Cameras Chapter 3: Setup & Installation
Rev C, August 27, 2021 Page 13
3.4.3. Mounting the Camera
Two 1/4"-20 or M6 tapped holes are provided, one on the bottom and one on the side of the housing. These may
be used with tripods or other optical mounting devices. These tapped holes are compatible with Thorlabs posts.
For more information on Thorlabs posts, please visit www.thorlabs.com.

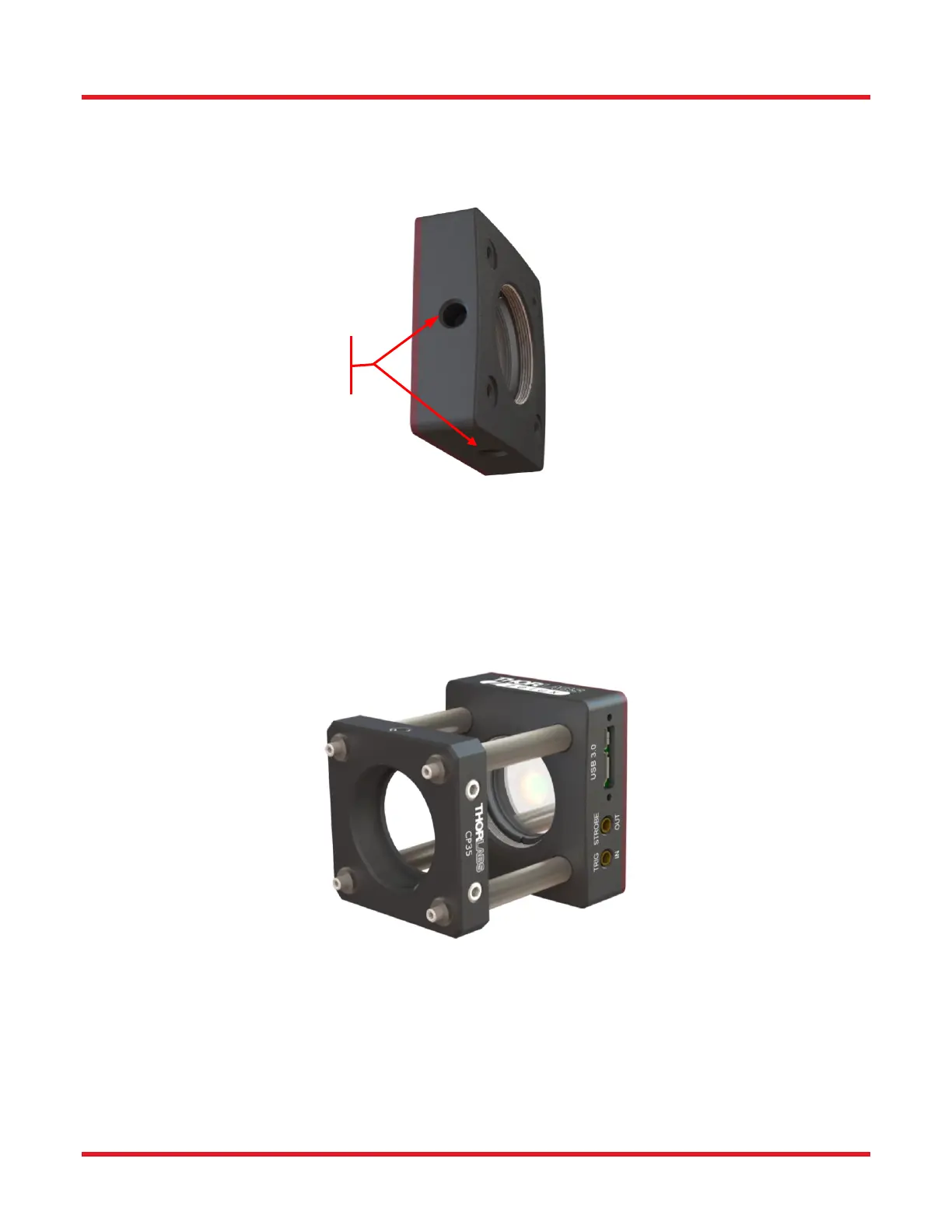

Figure 3 Arrow Indicates One of the Tapped Holes on Camera
3.4.4. Using the Camera with a Cage System
The cameras have 4-40 tapped holes for compatibility with Thorlabs 30 mm Cage systems.
For more information on Thorlabs 30 mm Cage system components, please visit www.thorlabs.com.
Figure 4 Camera Shown as Part of a 30 mm Thorlabs Cage System
Tapped Holes
1/4"-20 or M6
(2 Places Side & Bottom)
