Figure 8 Marker Menu
As long as any movable marker is enabled, the Movable Markers dialog box will
be shown either as a floating window or docked to the main window. The dialog
box shows the position of each enabled line marker, the value of the active trace
at the position of the line marker(s), and the level of each enabled level marker. If
both line markers are enabled, the distance between them and the difference in
value of the active trace at the two positions is shown. If both level markers are
enabled, the difference or quotient between them will be displayed. Which value
to be shown can be changed by clicking the Settings icon displayed above the
marker values.
3.5.3. Analysis Tools
A variety of analytical tools is available under the Analysis menu, such as the Peak
Track and Valley Track (see Figure 9), Curve Fit, Statistics, and more.

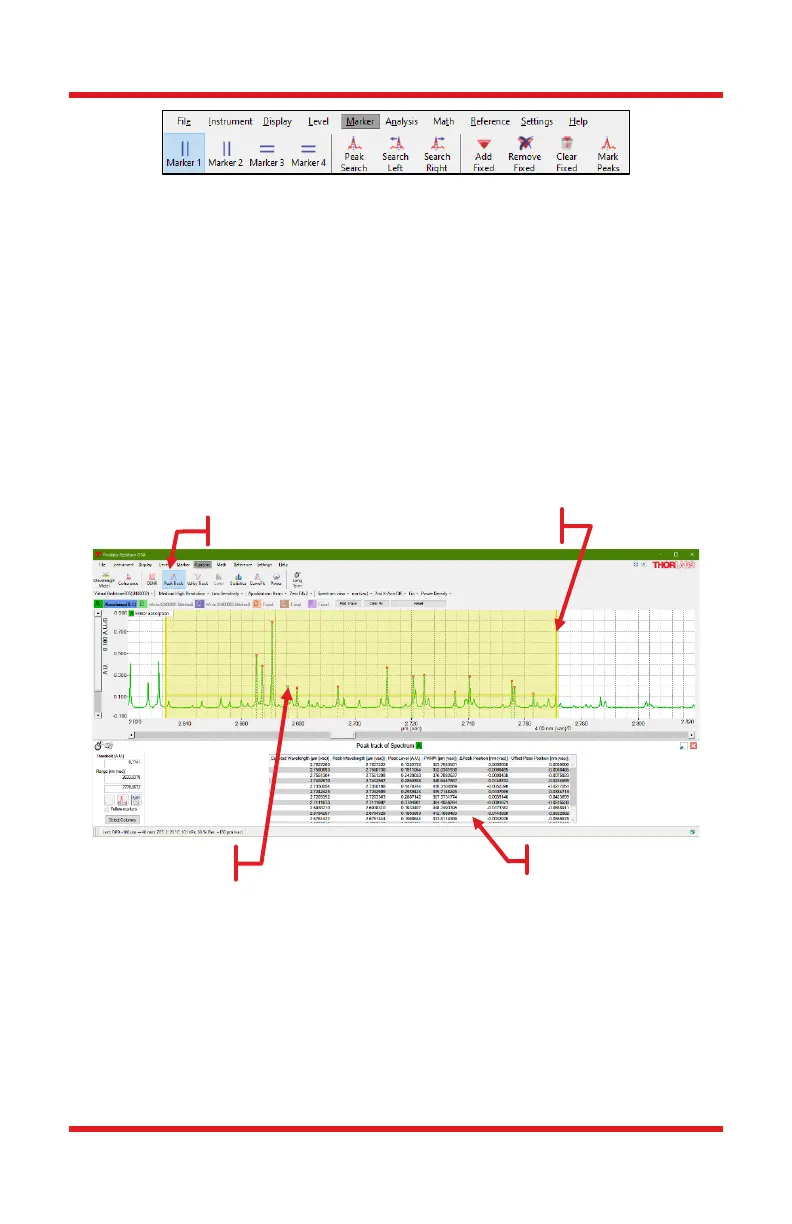

Figure 9 Peak Track Tool, used on water absorption seen in a broadband spectrum
3.5.4. Trace appearance
If the color of the trace needs to be changed, this can be done under the Trace
drop down menu, followed by the “Change color” option. The thickness of the
traces can also be changed, under the “Display” tab in the “Settings” dialog.
The order of the traces can be altered by a simple drag-and-drop procedure.
