The ZTE MC801A is an Indoor 5G Smart Hub Router designed to provide wireless internet access using 5G and 4G cellular networks, and it is also compatible with WAN. This device allows users to connect their various client devices, such as computers, laptops, and smart devices, for data services either wirelessly via Wi-Fi or through wired network cables.

Function Description:

The primary function of the ZTE MC801A is to act as a central hub for internet connectivity within a home or office environment. It receives cellular signals (5G/4G) and converts them into a local Wi-Fi network or provides wired Ethernet connections. The device features indicator lights on its front panel that provide visual feedback on its operational status, including signal strength, network connectivity (3G/4G/5G), Wi-Fi status, and power. Three lights indicate signal strength, with more lights signifying a stronger signal. The network indicator can display red solid (powered on but not registered), blue solid (registered to 3G/4G), or white solid (registered to 5G). The Wi-Fi indicator shows white solid for normal operation, white blinking when WPS is activated, and off when Wi-Fi is disabled. The power indicator is simply on when the device is powered and off when it's not.

For connectivity, the Smart Hub includes LAN ports for wired connections to client devices or to a WAN (public network). It also has a power port for connecting to the AC adapter. A nano-SIM card slot is provided for inserting a valid SIM card, which is essential for accessing the internet through the cellular network. The device also features a WPS button for easy Wi-Fi Protected Setup and a reset hole to restore factory settings. Although external antenna ports are present, external antennas are not included with the device. A PHONE port is also visible but is explicitly stated as disabled and should not be used.

Usage Features:

Setting up the ZTE MC801A involves a few straightforward steps. First, a nano-SIM card must be inserted into the designated slot at the base of the device. Once the SIM is in place, the Smart Hub is powered on by connecting the AC adapter to a wall outlet; the device turns on automatically.

Connecting client devices to the Smart Hub can be done in two ways:

Via Wi-Fi: Users can find the default Wi-Fi name (SSID) and password on a sticker located at the base of the Smart Hub. On their Wi-Fi-enabled devices, they can then turn on Wi-Fi, select the Smart Hub's SSID from the list of available networks, enter the password, and connect.
Via a Network/LAN Cable: A client device can be connected to one of the LAN ports on the Smart Hub using a standard LAN cable.

After connecting, users can access the 5G CPE web page to configure various settings, such as passwords, Wi-Fi SSID/Name, and other advanced options. The default URL for the web page and the password are also found on the sticker at the base of the device. Once logged in, the web interface provides a user-friendly environment for managing the hub.

Optimal placement of the Smart Hub is crucial for the best cellular network connection. It is recommended to place the device in a central location, ideally near a window, and close to a power source. Users should avoid placing it in basements or near concrete walls and metal doors, as these can reduce cellular signals. The web interface includes a "Suggested Position" feature that helps users detect network signal strength in different areas of their home and provides suggestions for optimal placement. This feature allows users to move the device around, detect signal strength, and save the results for future reference.

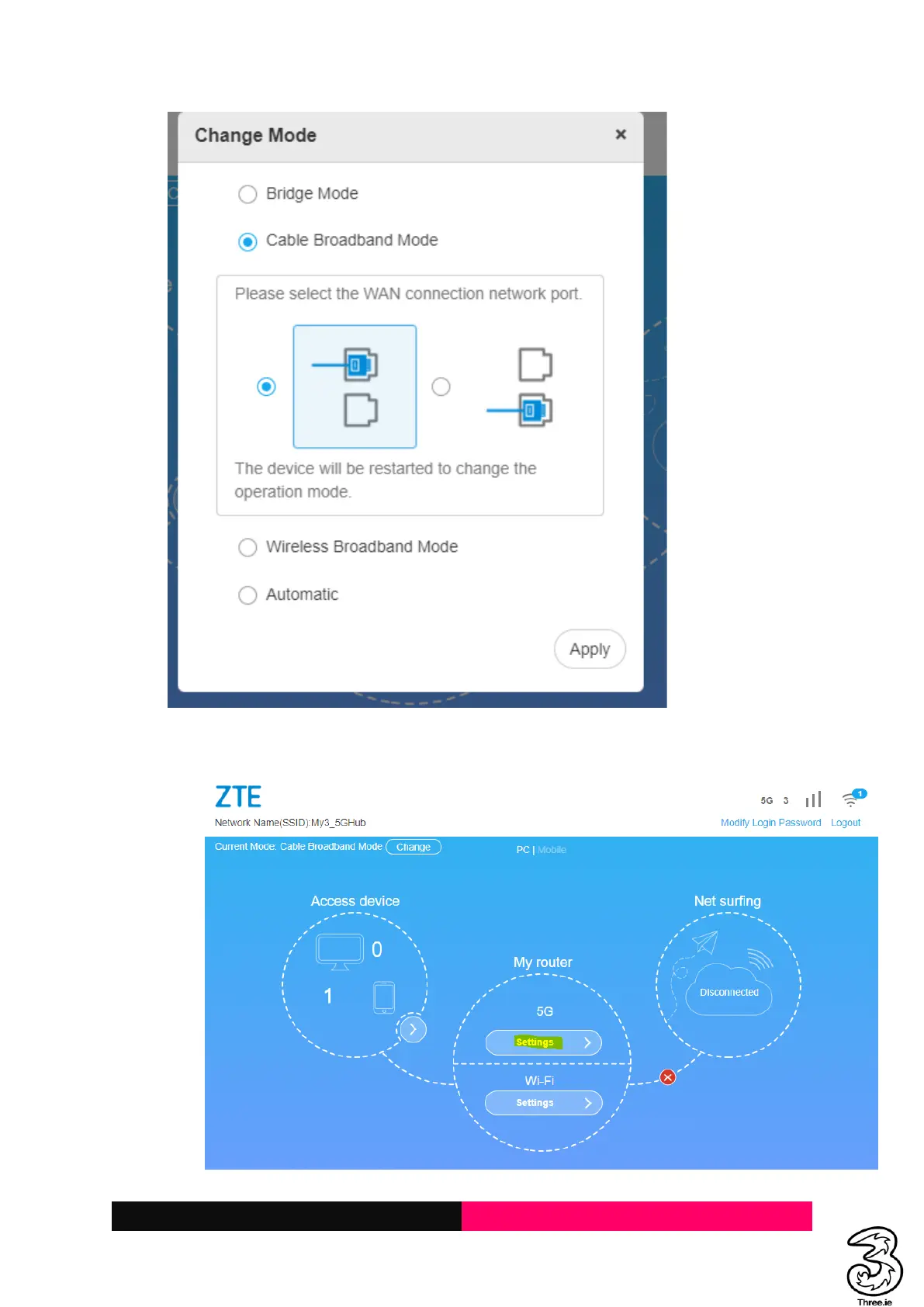

The device also offers the ability to change the operation mode, such as switching between Wireless Broadband Mode and Cable Broadband Mode. This is useful for different network setups, for example, when provisioning or setting up a static IP address.

Maintenance Features:

The ZTE MC801A includes several features for troubleshooting and maintenance, accessible through its web management interface:

Password Recovery/Reset: If a user forgets the admin password for the web page, the device can be reset to factory settings using the reset hole at the bottom of the hub. This process involves pressing and holding the reset button for about 3 seconds with a SIM ejector tool. After the reset, the device restores to its factory settings, and users can log in with the default password printed on the bottom label. It is recommended to change the admin password after a reset.
Wi-Fi SSID/Name and Password Management: Users can change the Wi-Fi SSID (network name) and password through the "WiFi Settings" section of the admin web page. This allows for personalization and enhanced security. It's important to note that changing these settings will disconnect all currently connected devices, which will then need to be manually reconnected to the new network name and password.
Parental Control: The Smart Hub offers parental control features to restrict internet access for specific devices. Users can access "Parental Control Settings" from the home page, add "Kids Devices" by selecting relevant devices, and then manage their access times. This involves setting up restricted access time lists, specifying days of the week, and defining time windows during which internet access is allowed or blocked. These settings can be applied to individual devices, and specific time windows or devices can be removed as needed.
Firmware Updates: The device supports firmware updates to ensure optimal performance and access to the latest features. Users can check for and apply new firmware through the "Advanced Settings" -> "Update" section of the web page. The device will download and install the latest firmware, then restart. The manual explicitly states that updating the firmware will not change any customized settings.
Diagnosis Tool: A built-in diagnosis tool helps users check if the device is working as expected. This tool, found under "Advanced Settings" -> "Others" -> "Diagnosis," performs various checks, including SIM card status, network registration, networking failure, DHCP server status, DNS from WAN, Wi-Fi switch status, 2.4 GHz and 5 GHz Wi-Fi SSID visibility, and UPNP status. Green ticks against each item indicate normal operation, providing a quick overview of the device's health.

For optimal Wi-Fi connection, it is advised to minimize interference by keeping the Smart Hub at least 2-3 meters away from devices like cordless telephone base stations, microwaves, baby monitors, Bluetooth devices, and wireless speaker systems. Avoiding network congestion and ensuring a good Wi-Fi signal on client devices are also important for maintaining high performance.
