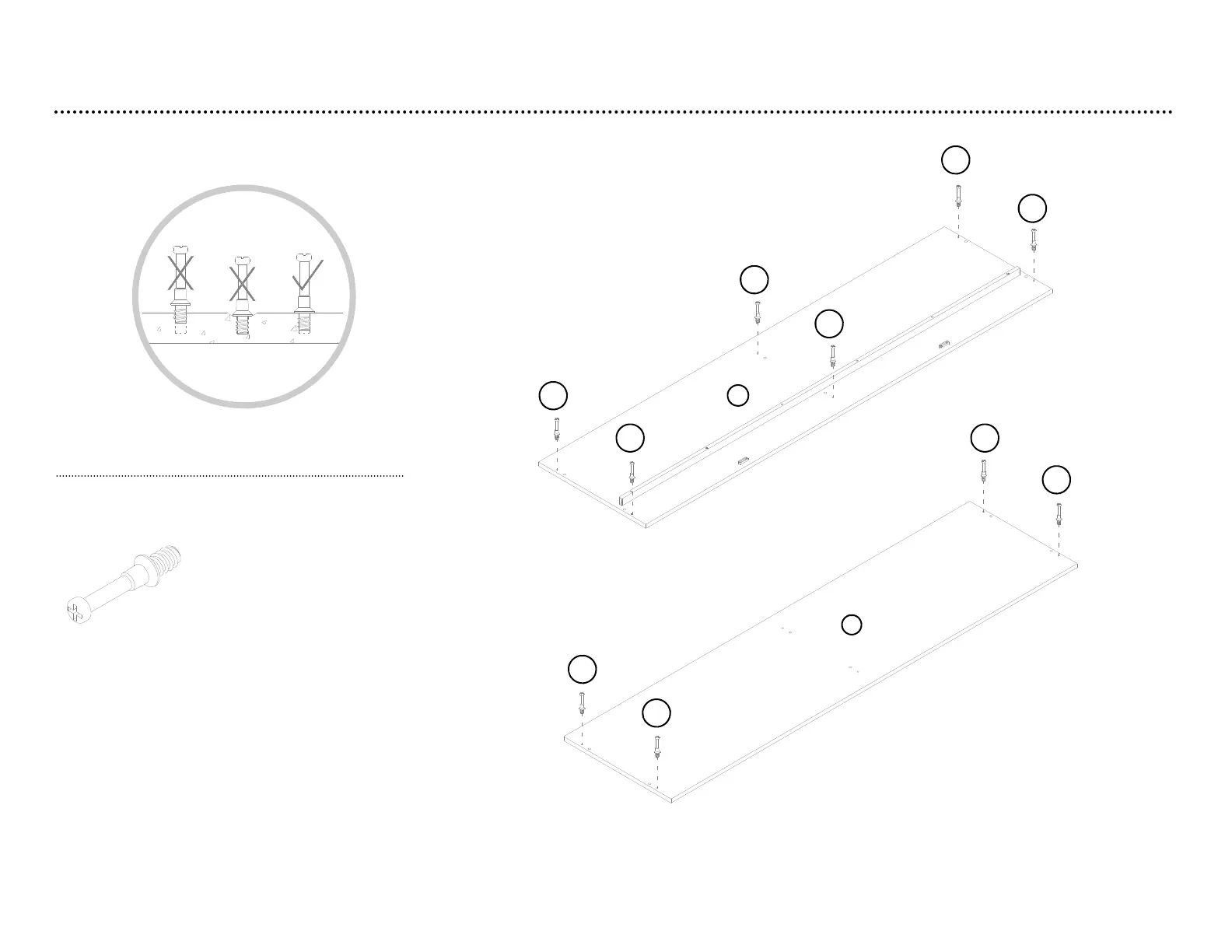

step 5: prepare top and bottom panels assembly
5.1. Securely screw the cam bolts (H2) into the designated small holes on the top and bottom panels (A and B).
(H2) x 10
cam bolt
A
H2
H2
H2
H2
H2
H2
H2
H2
H2
H2
B
