Threshold STUDIO MCGEE Marvale TGAVC68-21 - Page 13

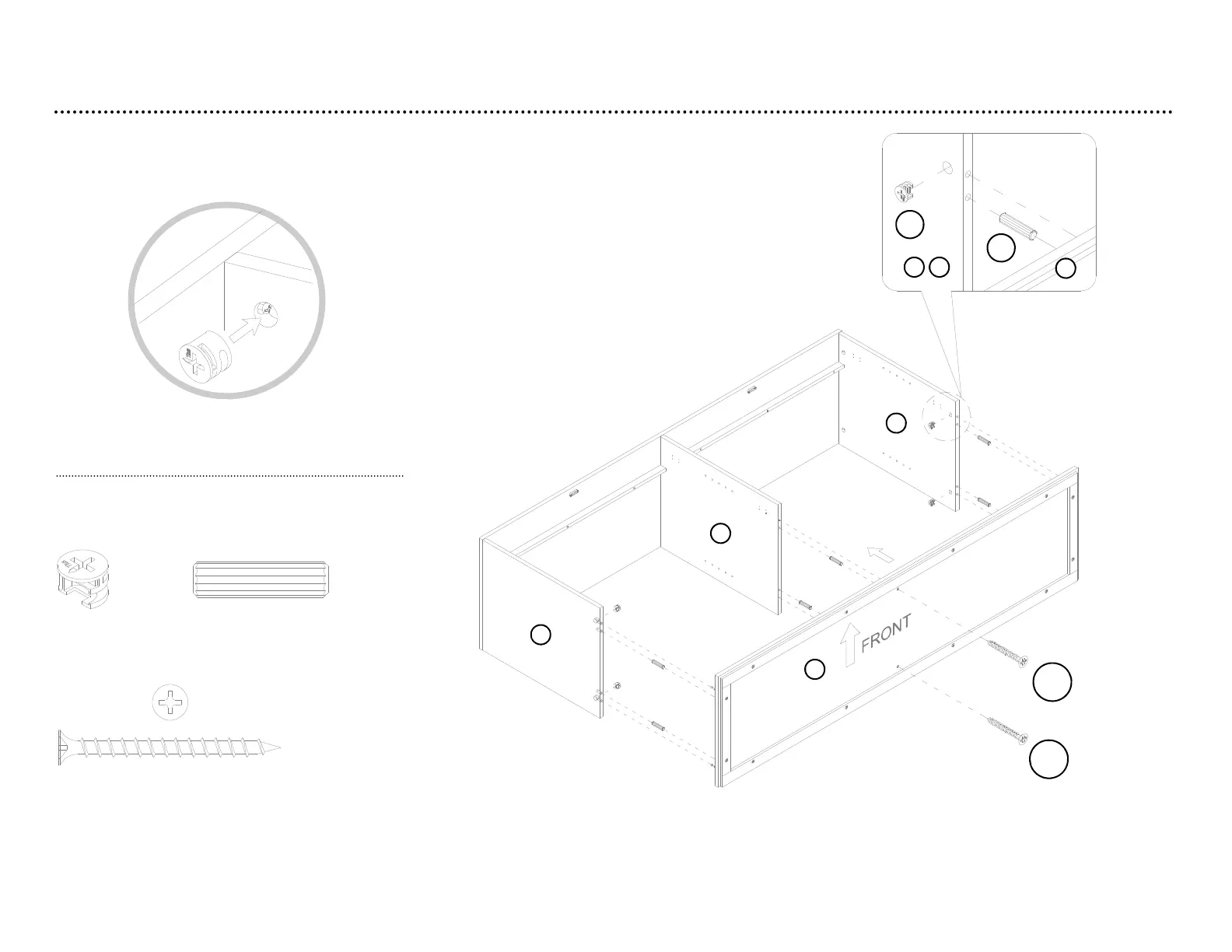

step 7: attach the bottom panel to the vertical panels
(H1) x 4
cam lock
(H3) x 6
M8 x 30 mm wood dowel
7.1. Insert six wood dowels (H3) into the bottom inner holes of both side panels (D) and the partition panel (E).
7.2. Align the inserted wood dowels with the large holes on the bottom panel (B) properly and press them together.
7.3. Insert two 50 mm screws (H17) through the mounting holes on the bottom panel (B) and securely screw into the partition panel (E).
H1
H3
D
D
E
B
B
D E
H17
H17
(H17) x 2
M4 x 50 mm screw
13
