Adjusting the range of TRAVEL and resistance FORCE of the brake pedal (with
no BRAKE MOD installed)
- Install the metal stop (23) at the rear of the brake pedal arm.
- Select your choice of position (Long, Medium or Short range of travel), and then tighten the 4 M3-
type Allen screws (8) using the included 2.5 mm Allen key (20).

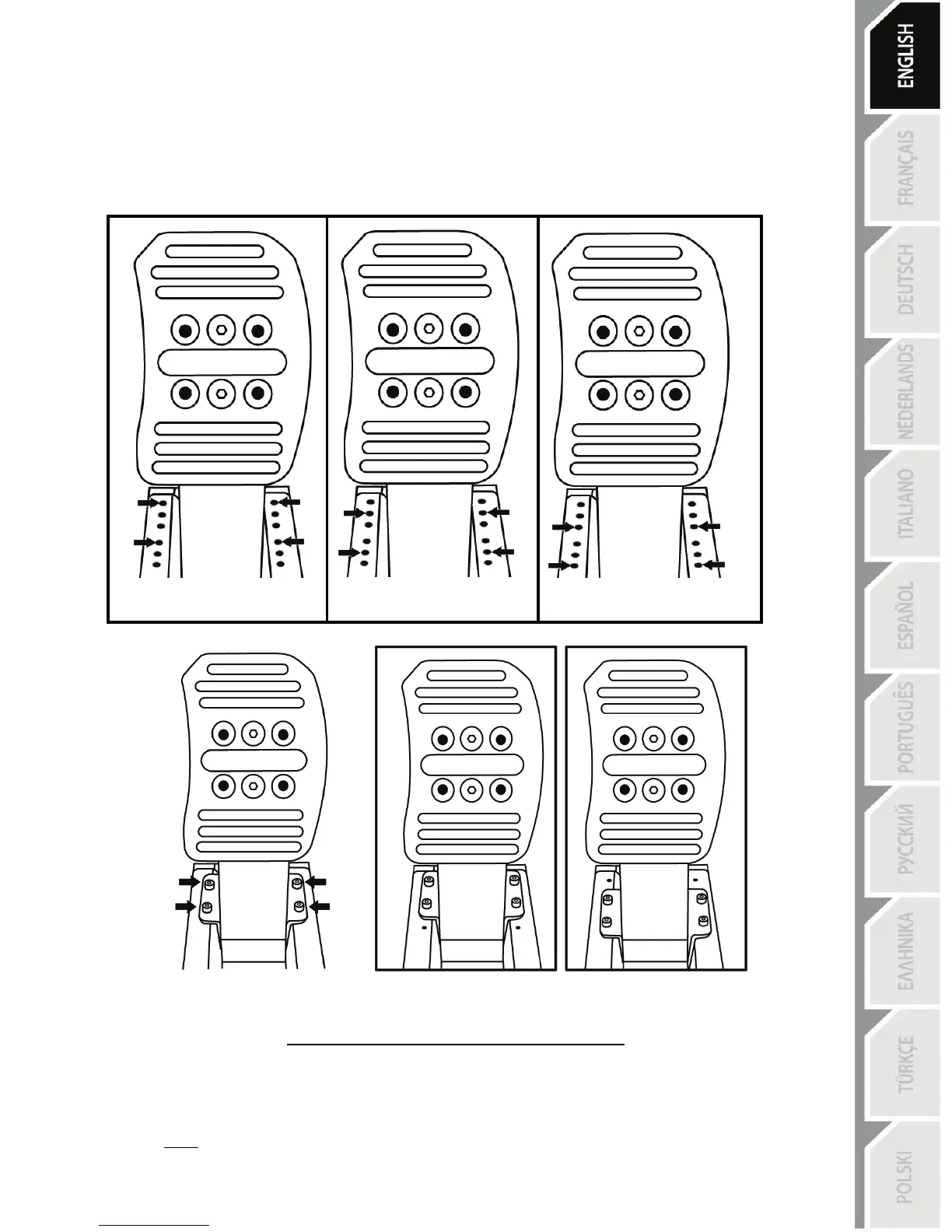

Long travel and strong Medium travel and Short travel and
resistance (default) medium resistance weak resistance
Long travel and strong Short travel and
resistance (default) weak resistance
Number of possible travel or resistance positions:
- Long travel with resistance of approximately 22 lbs / 10 kg
- Medium travel with resistance of approximately 18.7 lbs / 8.5 kg
- Short travel with resistance of approximately 15.4 lbs / 7 kg
Note: the longer the travel, the stronger the pedal’s resistance (and vice versa).
