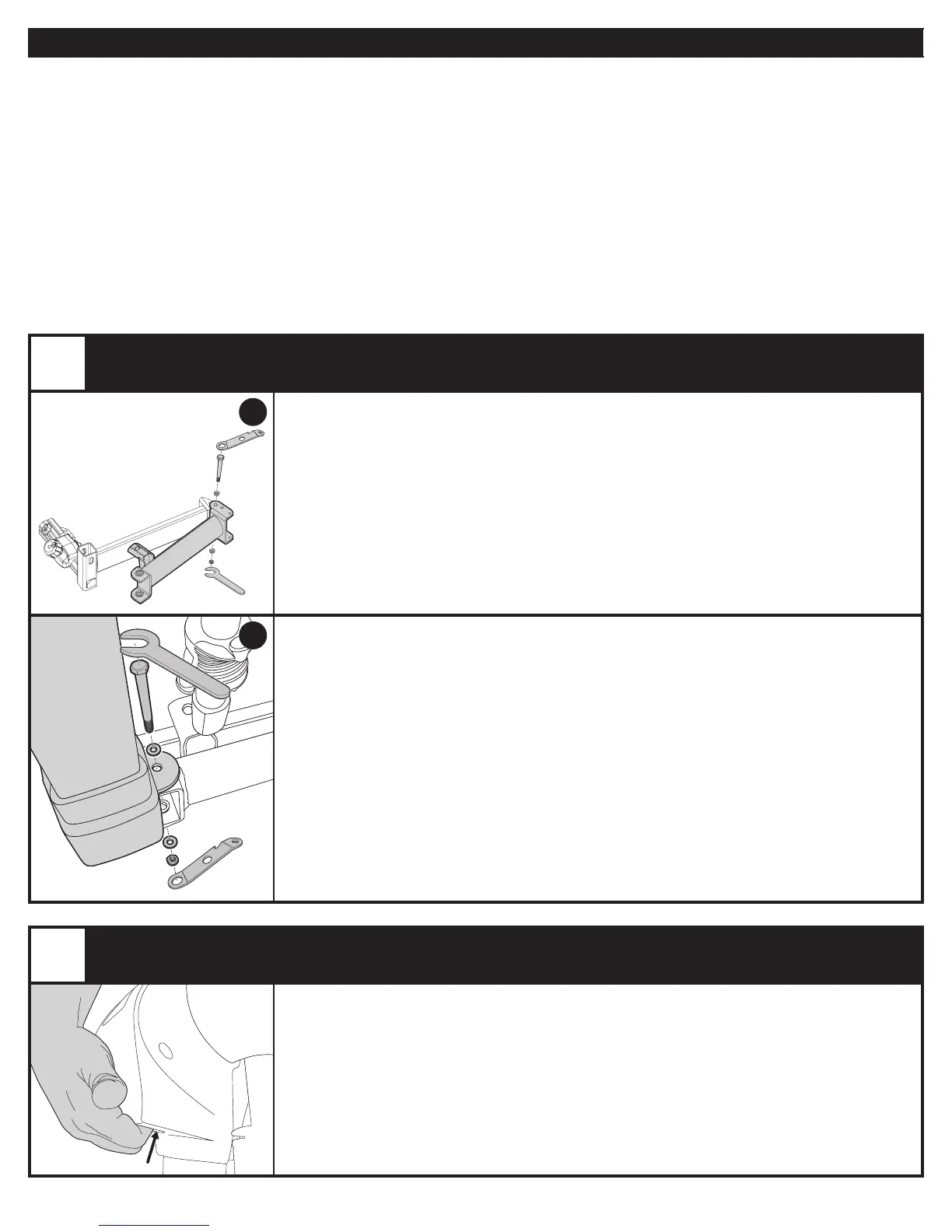

CARRIER ASSEMBLY /
• Position stinger assembly in bracket of swing arm assembly as illustrated.
• Install 1/2 – 13 x 5.5" bolt, flat washer and lock nut as illustrated.
• Tighten firmly using Thule tools provided.
• Position upright assembly in swing arm assembly bracket as illustrated.
• Engage lock-up pin and loosely thread lower locking handle.
• Install 1/2 – 13 x 5.5" bolt, flat washer and lock nut as illustrated.
• Tighten firmly using Thule tools provided.
2
TRANSPORTING CARRIER /
• Carrier can be easily handled / carried using handhold at the back of the carrier.
A
B
WARNINGS / LIMITATIONS •
• Number of bicycles should not exceed designated
carrying capacity for your specific Apex Swing Away.
• 9027 (4 bike) max carrying capacity = 140 lbs.
• Check tightness of all bolts and knobs periodically.
• Check straps for wear and replace if worn.
• Not intended for off-road use.
• Not intended for tandems or recumbents.
• Failure to use strap may result in loss of bicycles.
• Your vehicle must be equipped with a 2" receiver.
To Next Page
