4
BICYCLE TRANSPORTATION /
• Lift Hitch Switch
Lever as illustrated.
• With the other hand lift bike arm
assembly upward until the Hitch
Switch “clicks” into position.
•
Reverse operation to store or when
traveling with no bike attached.
A
B
3

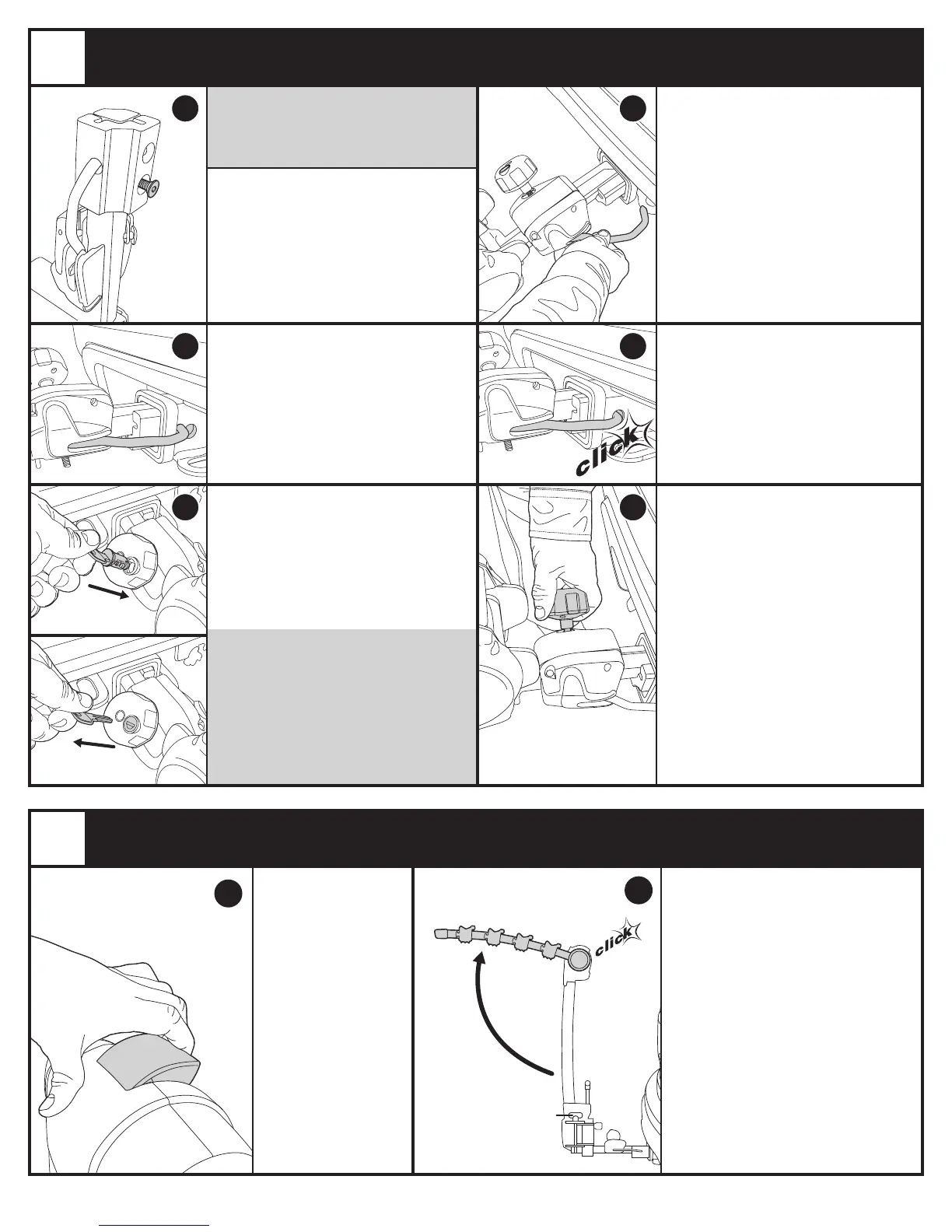

STINGER INSTALLATION /
FOR 2" RECEIVERS ATTACH 2" ADAPTER
• Attach carrier to receiver by pulling back
gently on Auto Pin while sliding stinger
into receiver.
• Using hex key attach adapter sleeve to
stinger with two M8 x 30 flat head screws.
• Once Auto Pin clears receiver lip, release
Auto Pin so that it rests against receiver.
• Push carrier in until Auto Pin engages
with the receiver hole as illustrated.
• Install lock cylinder into lock knob on
stinger assembly with Change Key.
NOTE: Knob will not tighten fully
without lock cylinder inserted.
• Firmly tighten locking knob to secure
carrier in receiver.
A
C
E
B
D
F
