Thunder Heart Performance Corp. 615-672-8811 www.thunder-heart.com
16 EI4250

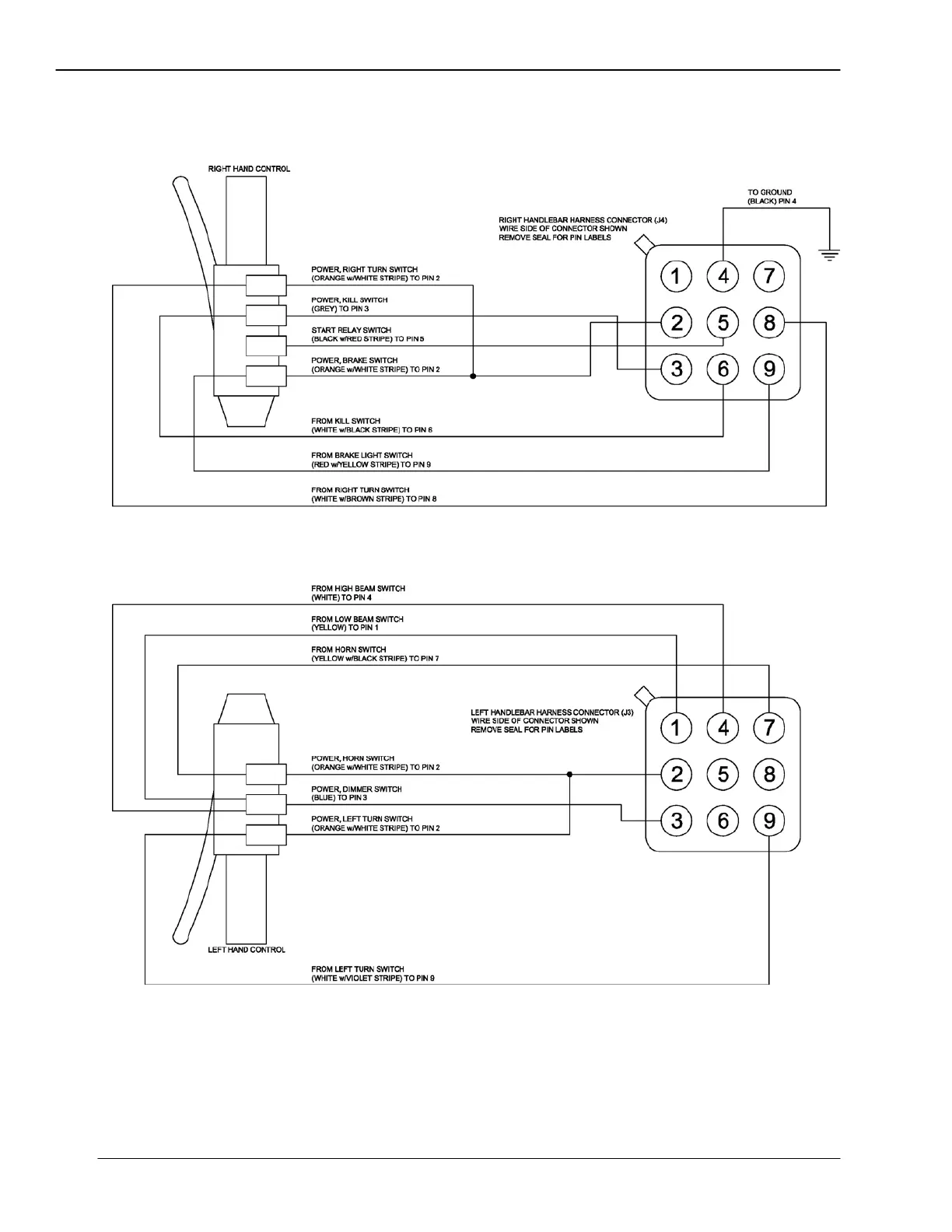

Figure 19—1996-2003 Hand Control Wiring Diagram (Partial Diagnostics)
“Wire Side” of Connector Shown
