7
Assembly

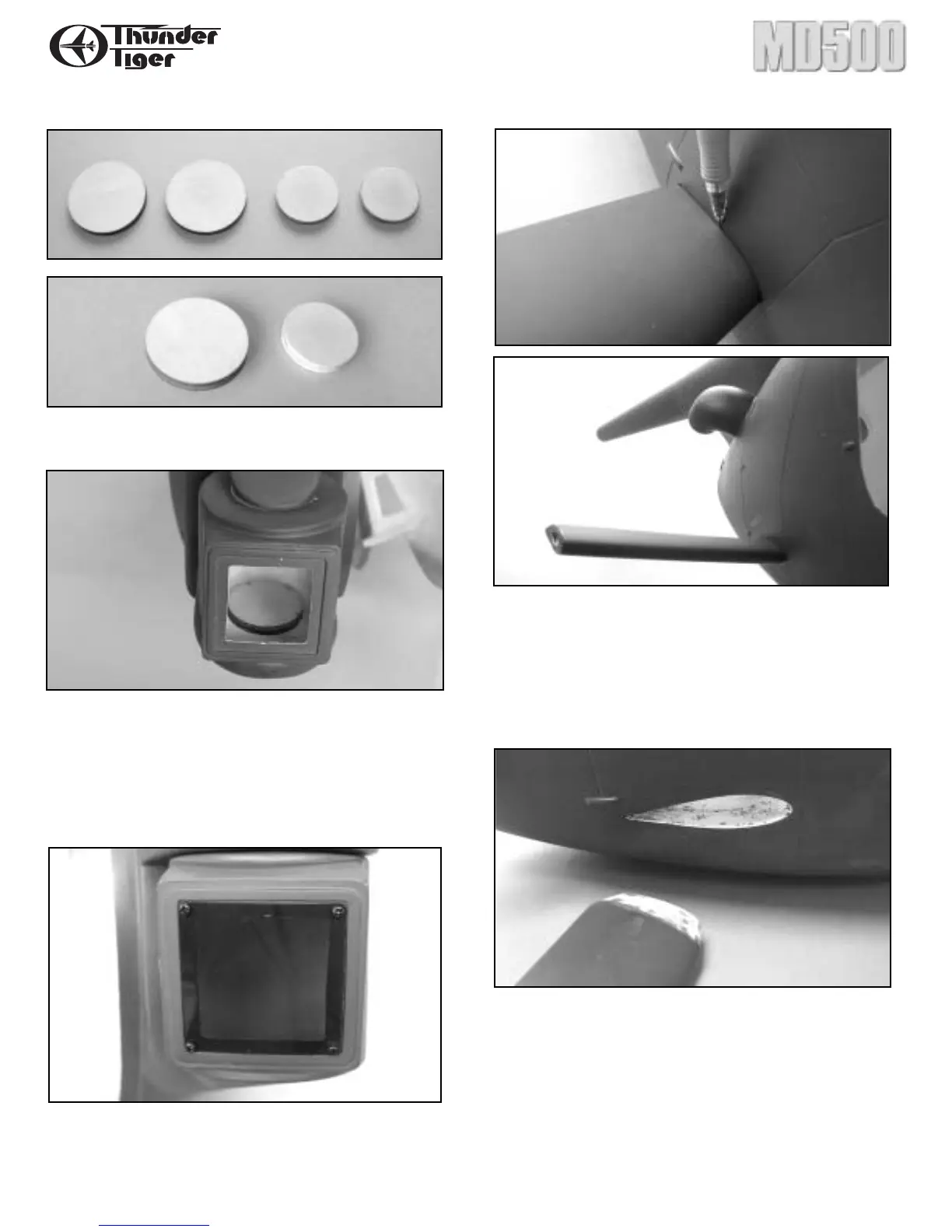

1. Locate four Round Plywood pieces, glue the same sized
pieces together as shown.
2. Position the OMS (Optical Missile Sight) in place then
epoxy the two doubled round plywood inside the OMS.
Glue one side first then the other.Make sure the OMS can
be rotated.You may install a micro camera or servo making
sure that it can really do a mission at your command.If not,
then you can just epoxy the OMS in place firmly.
3. Locate the Sight Lens, position it in place, then drill 1/16"
(1.5mm) holes at the four corners.Secure the lens in place
with four 2x5mm Wood Screws.
4. Note the orientation of the wing tip and trail making sure
it can fit two Wings in the wing mount. Ascertain the two
wings are at same dihedral angles and the trailing/leading
edge of two wings are in line with each other. Adjust it
until you obtain a satisfactory result, then use pencil to
make marks on the wing at both sides as guidelines.
5. Remove the Wing to sand away the paint base on the
guideline you drew, this is the glue area that you could
sand with 150 grid sand paper to enhance the adhesion.
Remove the paint in the wing mount,you may use hobby
knife to scratch the surface in the well.
