THUNDER TIGER Raptor 30 V2 Assembly & Maintenance Guide

PV0063 Pitch Frame/Rotor Hub
Seesaw Bushing
37
PV0353 Main Rotor Grip
PV0002 Flybar Control Arm
PV0354 Main Rotor Hub
PV0004 Mixing Lever PV0005 Flybar Control Rod
PV0372 Thrust Collar
PV0355 Spindle
PV0008 Flybar Rod
PV0381 Flap Damper (70)
PV0357 Swash Plate Assy.
PV0011 Wash Out Set PV0012 Pitch Control Arm PV0013 Elevator Arm
PV0014 Elevator Lever PV0015 Aileron Lever PV0016 Tail Pitch Control Lever PV0017 Tail Pitch Slider
PV0018 Main Shaft Lock Ring PV0019 One Way Clutch
PV0020 One Way Clutch Shaft PV0021 Guide Pulley Assy
PV0022 Engine Mount
PV0358 Clutch Bell PV0359 Clutch PV0360 Starter Shaft PV0361 Starter Coupling
PV0027 Tail Case
PV0148 Tail Rotor Grip
PV0029 Tail Pulley Set PV0030 Tail Rotor Shaft
PV0151 Tail Rotor Hub
PV0480 Main Frame Set
PV0033 Servo Frame
PV0363 Fuel Tank
PV0035 Landing Skid Set PV0036 Flybar Paddle PV0037 Tail Rotor Blade
38 39
PV0041 Ball Link
PV0328 Tail Support
PV0043 Tail Control Rod PV0044 Linkage Rod
PV0364 Body PV0365 Thrust Brg.
PV0048 Pitch Frame/Rotor
Hub Seesaw Brg.
PV0049 Seesaw Brg.
PV0374 Feathering Brg.
PV0051 Lever Brg. PV0052 Tail Slider Brg.
PV0038 Tail Fin
PV0040 Double Link
PV0039 Main Rotor Blades
40
PV0053 Rotor Bolt
PV0366 Decal
PV0056 Frame Spacer(L) PV0057 Frame Spacer(S) PV0058 Linkage Ball
PV0059 Tail Shaft
PV0375 Body Retaining Set
PV0062 Body Mount Rubber
Grommets
PV0486 Flybar Seesaw AK0029 Main Shaft AK0031 Main Spur Gear AK0032 Tail Drive Pulley
PV0367 Pinion Gear (9T)
AK0089 Tail Drive Belt AV0038 Cooling Fan Assy. AV0052 Tail Idel Pulley Assy.AK0060 Tail Boom
HMF2-6N M2X6
HMF2-8N M2X8
HMJ2-10N M2X10
HMJ2-14N M2X14
HMJ2-6B M2X6
HMJ3-22B M3X22
HSE2-10B M2X10
HSE2612N M2.6X12
HSE3-12B M3X12
HSE3-18B M3X18
HSE3-5B M3X5
HMC3-10B M3X10
HMC3-12B M3X12
HMC3-14B M3X14
HMC3-20B M3X20
HMC3-25B M3X0.5L25
HMC3-32B M3X0.5XL32
HMC3-8B M3X8
BK0616 M3x20
HME3-10B M3X10
HME3-18B M3X18
HME3-5B M4X5
PV0064 Lever Bushing
PV0088 Screw Bag (6pcs each)
PV0089 Screw Bag (6pcs each)
NO.9219 Muffler
PV0368 Clutch Liner
(16)
(4)
HNI15
HNI2
HNI25
HNI3
BK0109x2
BK0106x2
HNJ-1x3
(2)
(1)
PV0370 Body OnlyPV0369 Canopy Only
PV0060 Installation Set
PV0093 Main Shaft BrgPV0091 Bearing Upgrade Kit
41
PV0203 Starter Shaft Brg
PV0373 Clutch Bell Brg.
PV0279 TAIL ROD GUIDE
PV0267 Loctite #242 PV0268 Loctite #262
PV0269 Grease (For Plastic Gear) PV0270 Grease (For Bearing)
36

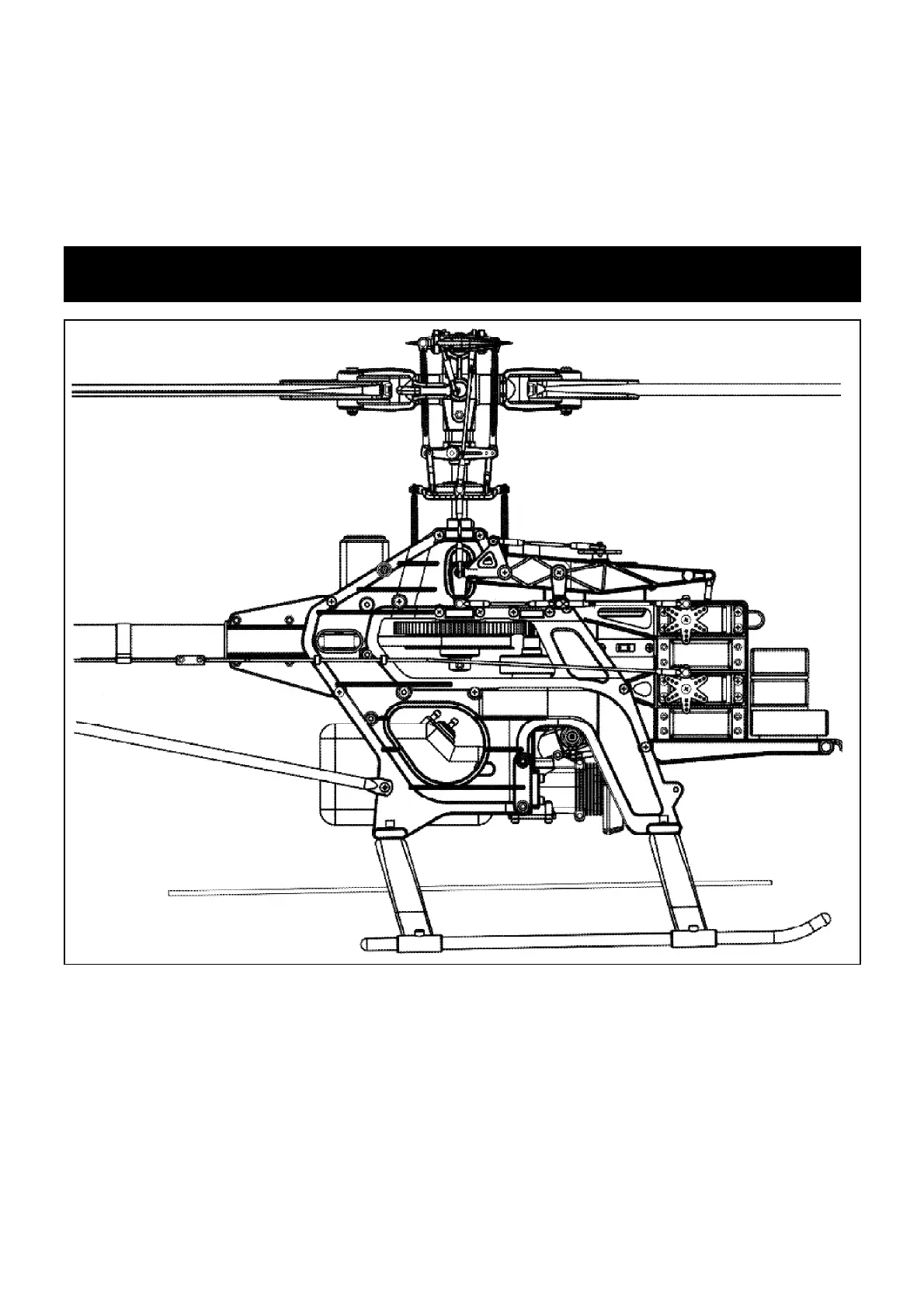

PARTS LIST SECTION
PV0209 Washer Bag
PV0210 Washer Bag PV0223 Screw Bag
PV0376 Main Rotor Pin
PV0454 Skid Pipe End Cap PV0478 Oneway Clutch Grease
PV0639 Tail Rotor Angular Brg
