RADIO
10
COWL
11

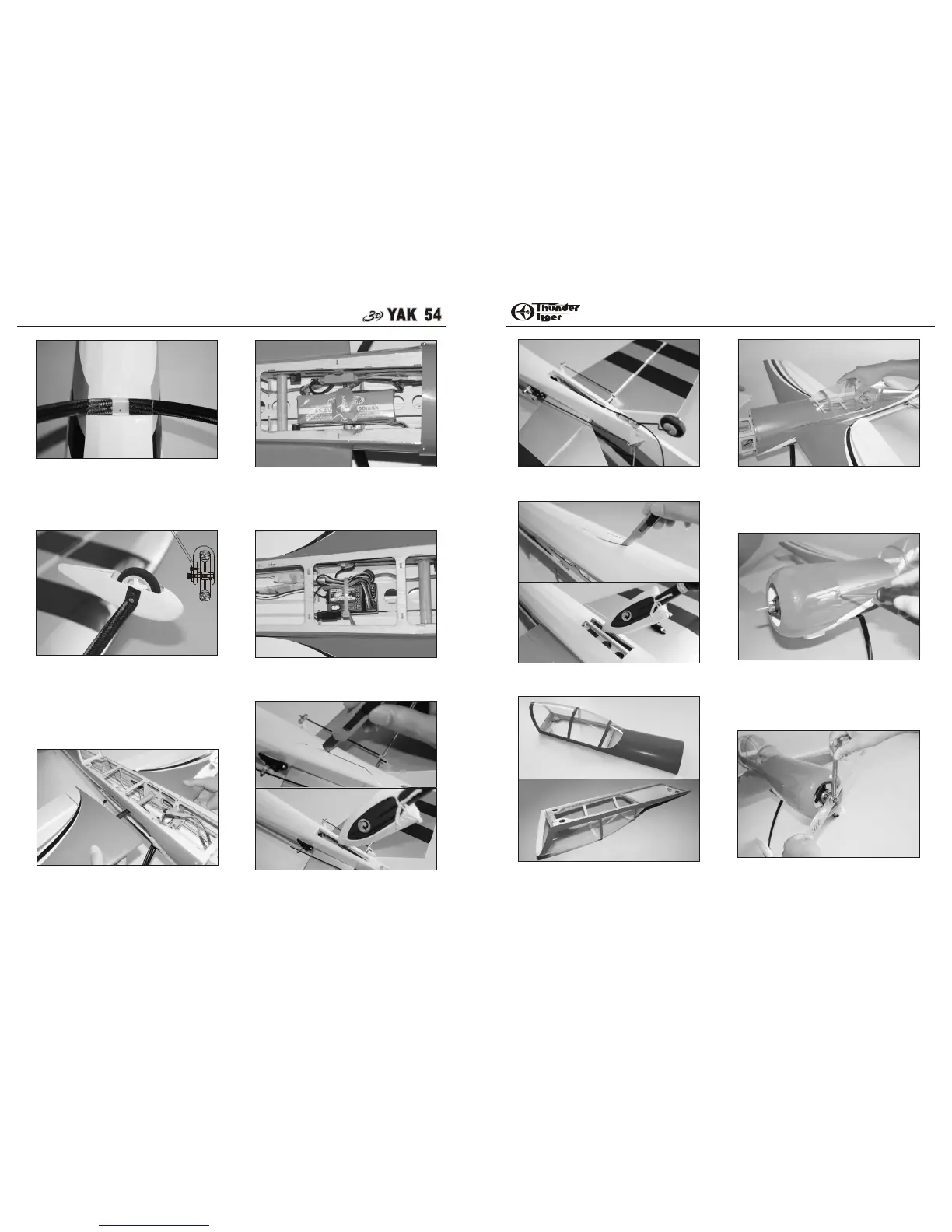

26. Install the carbon landing gear in place with M3x10
socket screws, M3 washers and M3 locknuts.
27. Drill 3mm hole for wheel axle, then install the
wheel pant and wheel with socket screw M3x21mm,
M3 locknut and washer. Adjust the wheel paint then
secure the wheel pant with 2.3x8mm wood screw.
Make sure the wheel rotates freely after installation.
28. Trial fit and main wing in place, then install wing
joiner. Locate the Nylon retaining screw then screw
in the wing in place as photo shown in next step.
30. Correctly connect all servo wires to the receiver
then secure receiver with nylon-tie band in place
as shown.
31. Locate the tail opening at the bottom fuselage.
Cut a line in the middle then tack down the covering.
32. Thread the antenna through the fuselage and exit
at this opening. Tape the antenna properly at the
bottom fuselage.
33. Same way to locate the middle bottom fuselage
where is an opening for air outlet. Tack down the
covering as shown.
34. Locate the canopy & its frame, trial fit the frame
in place. Make sure to leave about 3/32” (2.4mm) at
twp sides. Note the front of frame should even with
the canopy. The rear canopy should contact the
turtle deck smoothly after gluing the frame.
36. Trail fit the cowling in place, make sure the prop
adaptor is out of the cowling. Secure the cowling with
four 2.3x8mm wood screws.
37. Secure the propeller properly with prop nut. Now
you finish the assembly please well adjust the control
throw and CG before you go to fly.
29. Secure the battery with the tie belt as shown in the
fuselage.
35. Install the Canopy assembly in place. It should
be secured perfectly with the super magnet.
