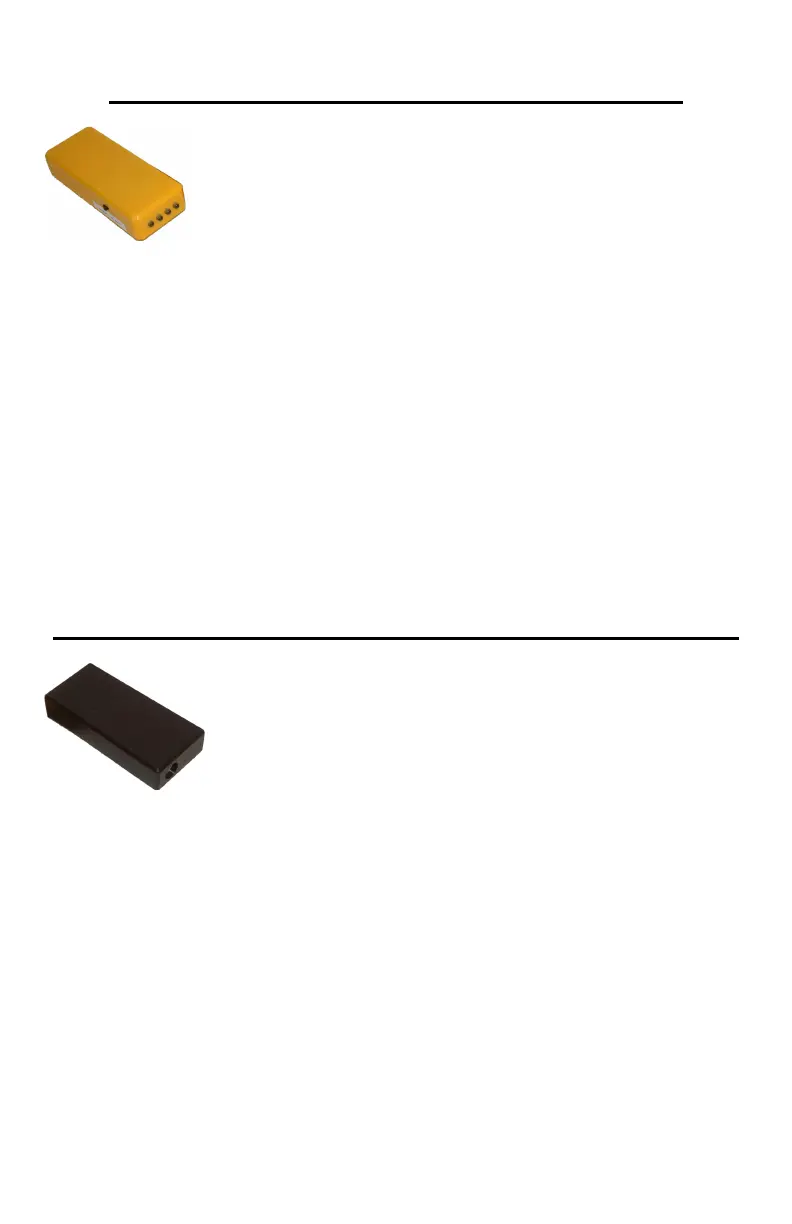

Infrared (IR) Beam Transmitter (yellow box)
• Placed on one side of a timing line
• Standard 9V Alkaline Battery power
• Emits IR (invisible) light signal
• Tripod socket for mounting
Mount the Transmitter on one side of your Timing Line
using a standard camera tripod or another mounting
method. Point the end of the Transmitter with the four
LEDs where you will be locating the Beam Receiver.
Move the switch on the side of the Transmitter to the ON
position. The IR (infrared) light is invisible.
If you are using more than one IR Beam for independent
Start and Finish locations or segment timing, install the
remaining IR Beam Transmitters and Receivers.
IR Beam Receiver (black box) and Beam Alignment
• Placed on other side of a timing
line, opposite a Transmitter
• Standard 9V Alkaline Battery
power
• Red LED indicates proper alignment of
Transmitter and Receiver Beam
• Wirelessly signals Sport Timer when the Beam
is broken
• Tripod socket for mounting
Mount the Receiver opposite the Transmitter(s) on the
other side of Timing Line(s) using a standard camera
tripod or another mounting method. Point the end of the
Receiver with the round window toward the Beam
