29

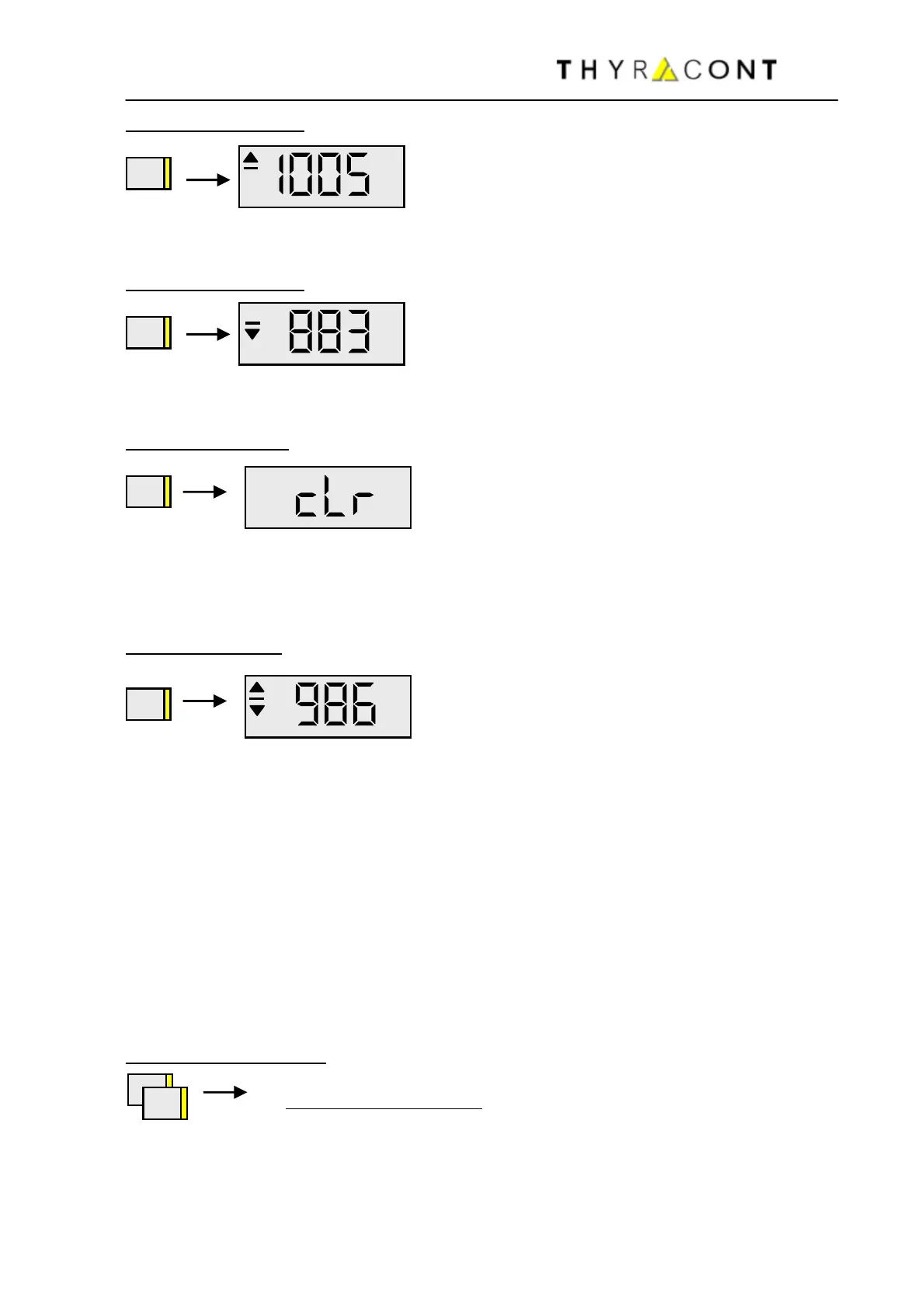

2) Stored Maximum:
Without further keystroke, return to 1) after 4s.
3) Stored Minimum:
Without further keystroke, return to 1) after 4s.
4) Delete Memory:
On further keystroke the stored Min-/Max-values are deleted (when datalogging
is activated simultaneously, the data memory is also deleted).
Without further keystroke, return to 1) after 4s.
5) Memory-Mode:
Actual pressure is displayed.
Stored Min-/Max-values are deleted. The instrument is in the Memory-Mode, i.e.
new extremal values are detected and stored from now on. (Further, when
datalogging is activated simultaneously, measurements are saved according to
the chosen logging rate.)
Model VD81MCIR is equipped with a serial infrared-interface. If this data
interface is activated -as discribed in chapter configuration -, the instrument
transmits one measurement per second when operating in Memory-Mode.
In Memory-Mode the VD81 keeps operating continuously, until it is switched-off
manually or, after the maximum operation time has elapsed, automatically. (For
adjustment of the maximum operation time see chapter configuration.)
To switch-off the VD81
:
Press Mode-Key twice
: return to 1) Auto Off.
MODE
mbar
MODE
MODE
mbar
MODE
mbar
MODE
MODE
