4.2 Operation of the VSP/VCP

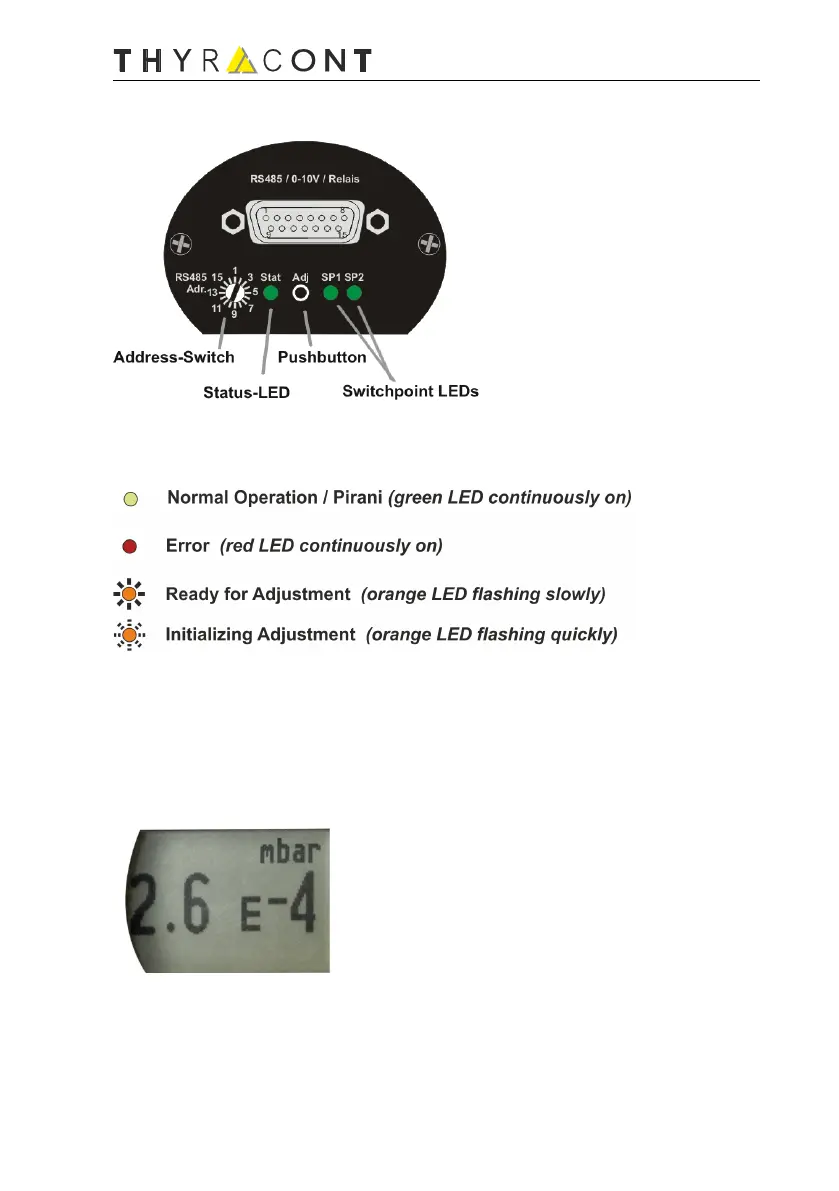

The status LED of the VSP/VCP signalizes the following operational states:
The switchpoint LEDs are on when the related relay is activated.
In addition models VSP63DL, VSP64DL, VCP63DL and VCP64DL have an LCD
with yellow backlight that displays the measured actual pressure.
In case of an operation error or malfunction the display is illuminated by a red back-
ground color.
In order to change the display unit (mbar, Torr, hPa)
hold the »Adj« key pressed while connecting power
supply until the display shows »Unit«. Then select
the desired unit by pressing the »Adj« key. After 5
seconds without further keypress the setting is sa-
ved!
