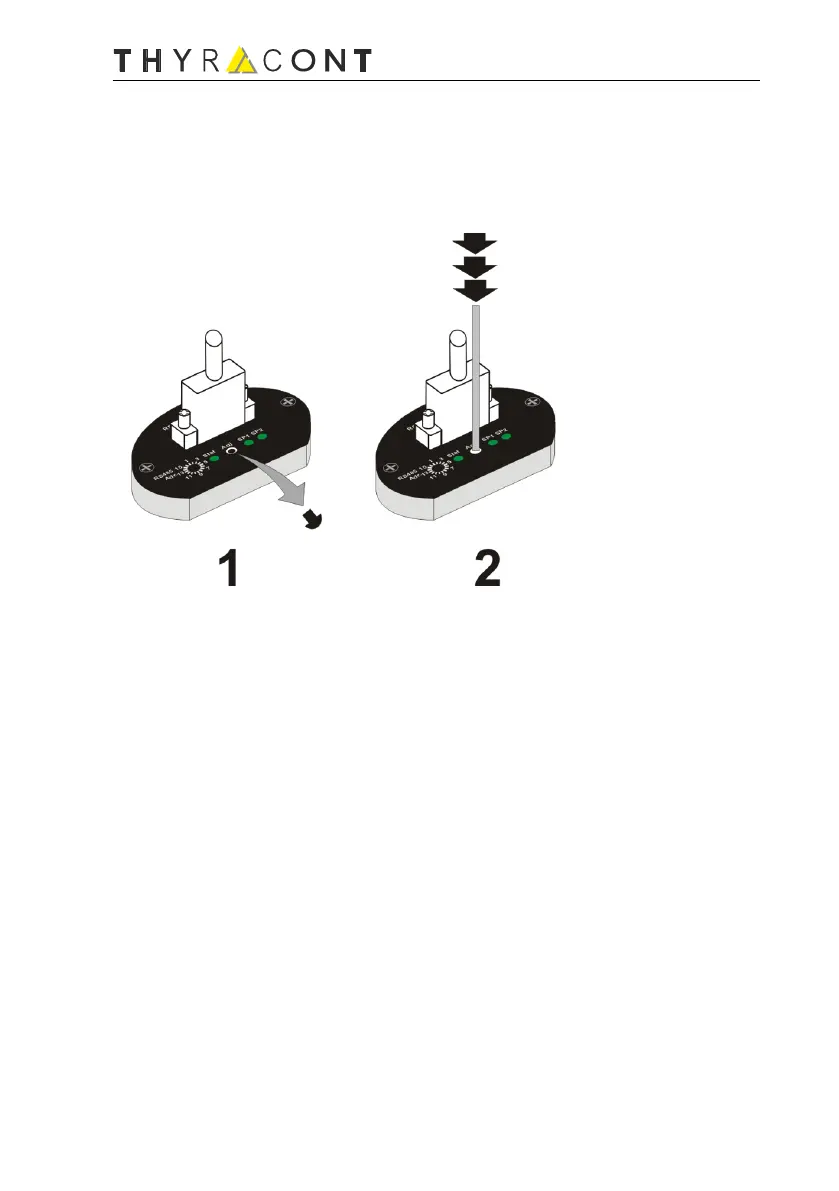

For adjustment first remove the rubber cap above the »Adj« button (1), then press
the pushbutton several times by means of a screwdriver or other suitable tool (2)
until the status LED starts quickly flashing orange. After further 3 s a slowly fla-
shing status LED signalizes that the transducer now can be readjusted by pushing
the button once again. Finally insert the rubber cap again.
VSP/VCP-RS485-200116
