OPERATING MANUAL DAF290 MACHINE SETUP
ThyssenKrupp Aufzugswerke GmbH
5.2 Terminal connecting plans

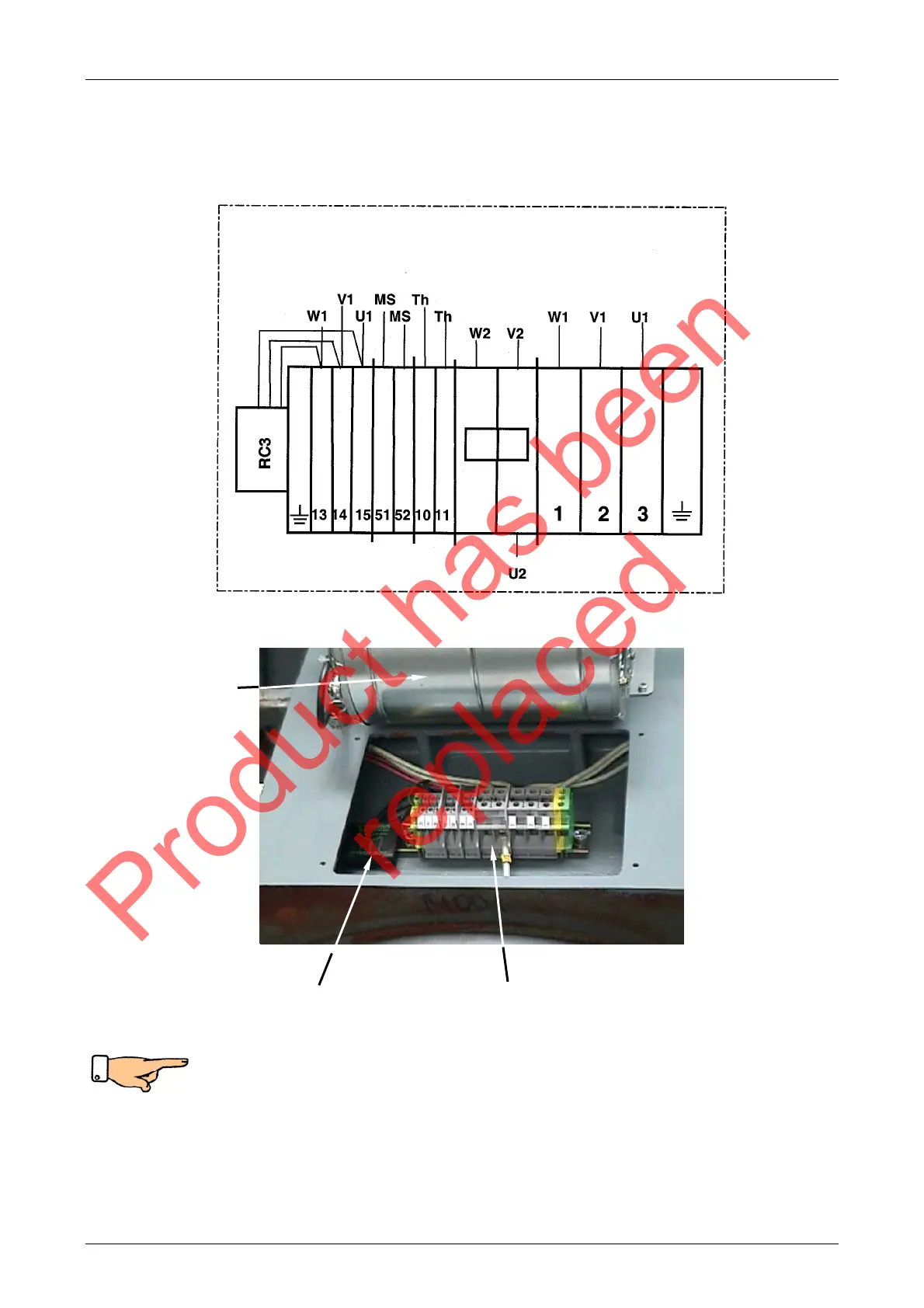

Motor connection terminal plan:
The terminal diagram is also printed on the inside of the cover
Note: Observe direction of rotation.
The fan should be connected in such a way that the air flow is taken
in by the fan and blown by the motor.
See arrow direction on the air inlet side of the fan.
Fig. 5.1
Forced ventilation
Terminals for motor, temperature monitoring
and forced ventilation
Fig. 5.2
Neutral
Product has been
replaced
