OPERATING MANUAL DAF290 APPENDIX
ThyssenKrupp Aufzugswerke GmbH

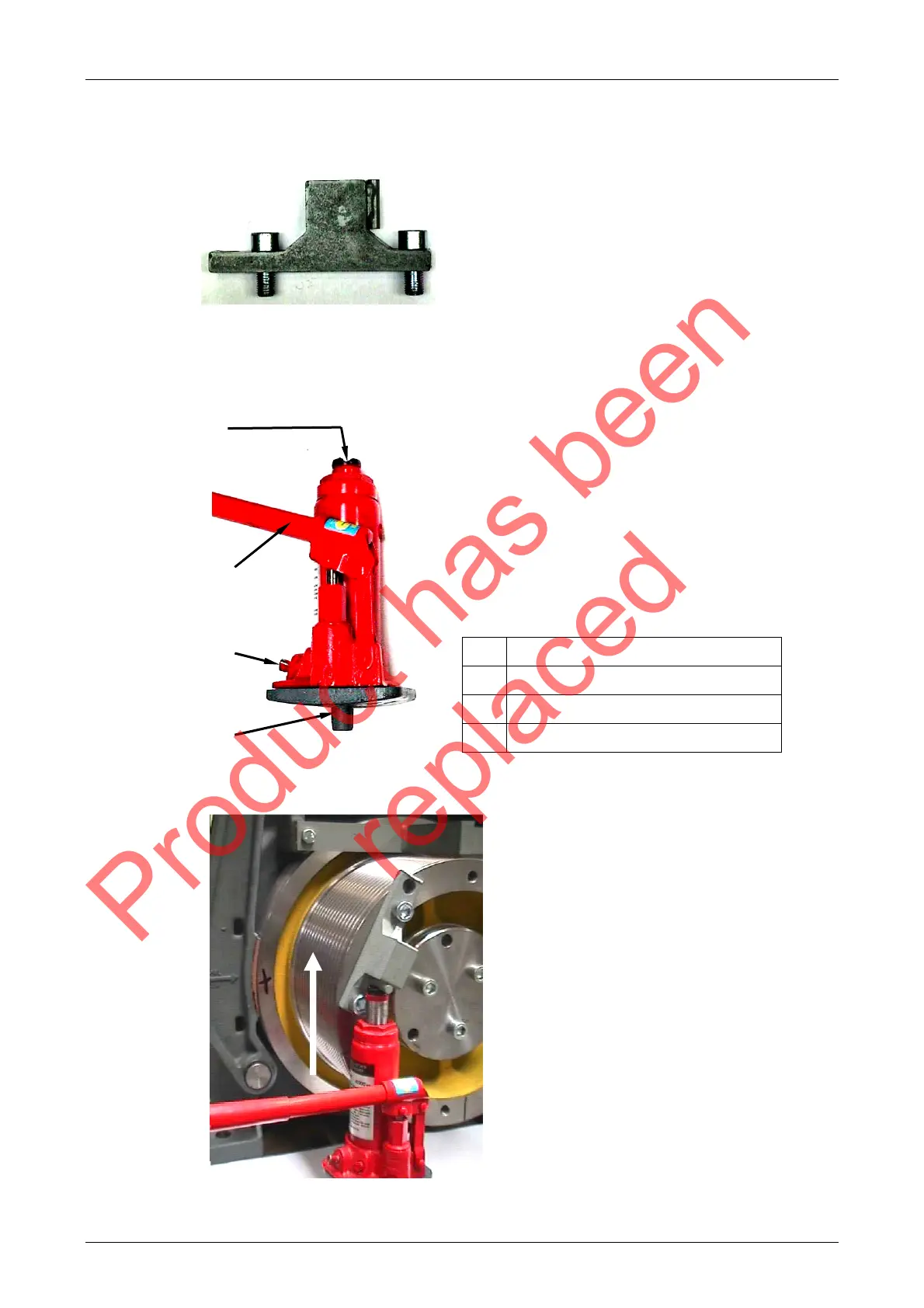

5. Pressure arm (for hydraulic jack)
To mount: Screw on the pressure arm as
closely as possible, with the pin facing
downwards, above the jack on the traction
sheave.
Deployment:
The pressure arm is for power transmission
from the hydraulic jack to the traction sheave
6. Hydraulic jack
To mount: Place the jack with locator in the
bore on the frame, which is located on the
pull side under the traction sheave.
Close the drain plug on the jack.
Pump the lever with pressure cylinder to
move the pressure arm and traction sheave.
Make sure that the pin of the pressure arm is
lying on the cylinder groove to prevent
slipping.
1 admission
2 Drain valve
3 Lever
4 Pressure cylinder with groove
Deployment:
The hydraulic jack serves to lift the car
out of the engaged safety gear
Fitted pressure arm with jack.
Movement in the direction of the arrow.
4
3
2
1
Fig. 9.6
Fig. 9.7
Fig. 9.8
35
10-2012
Product has been
replaced
