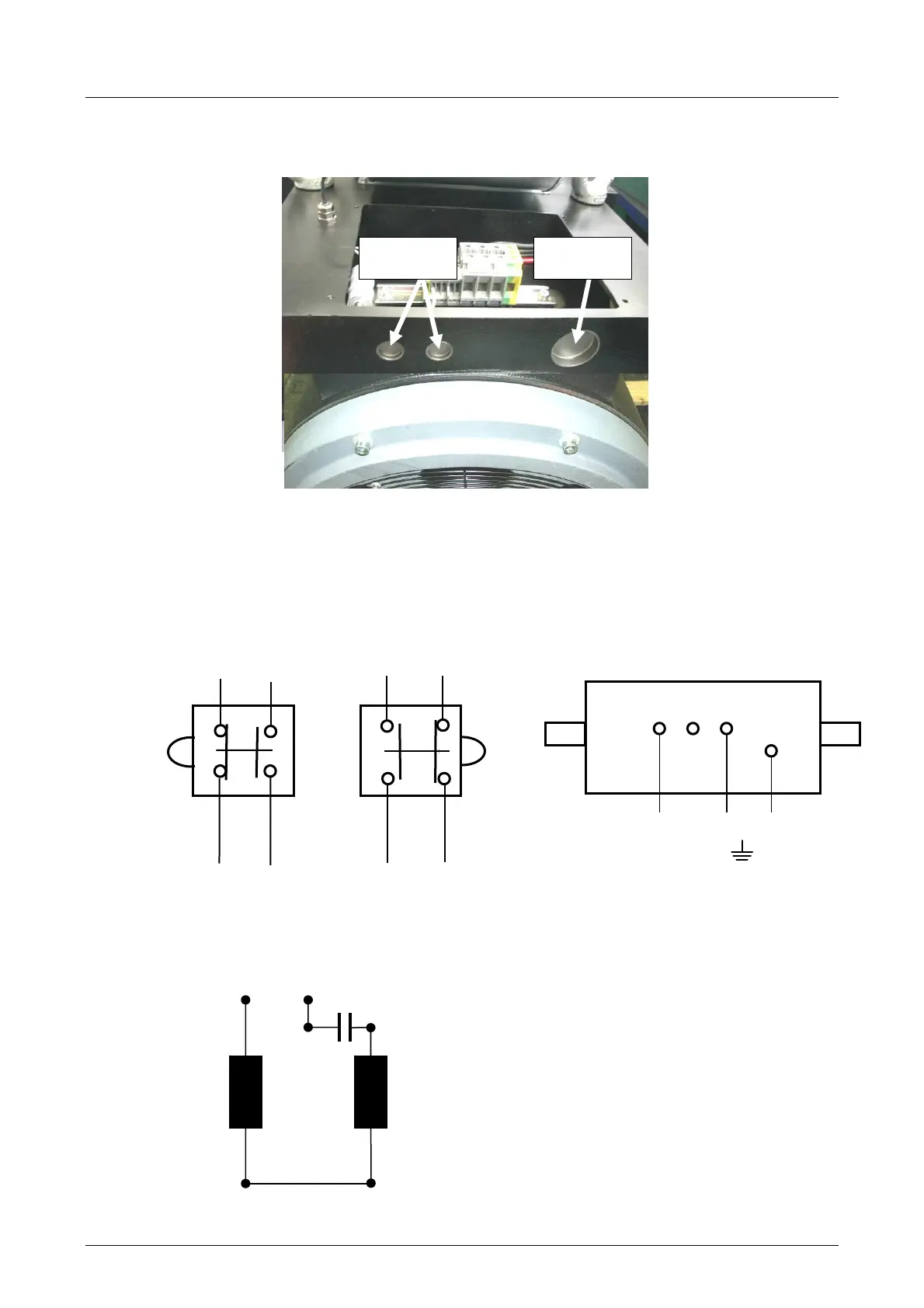

ThyssenKrupp DAF380 - CSA Version Motor Terminal Box; Brake Test Switch Terminals; Double-Vane Magnet Terminals; Blower Motor Terminals

O PERATING M ANUAL DAF380 M OUNTING THE M ACHINE
ThyssenKrupp Aufzugswerke GmbH
Motor terminal box CSA version
Terminal Terminal
brake test switch double-vane magnet
Terminal blower motor.
1 2 PE
+ −
Fig. 5.7
Fig. 5.6
Fig. 5.8
Button 2
12
23
24
11
Button
12
24
23
11
L Z
N
14 15
13
Ø45mm Ø22mm
Fig. 5.5
28
