Thytronic NA11 User Manual

105
NA11 - Manual - 02 - 2009
INSTALLATION

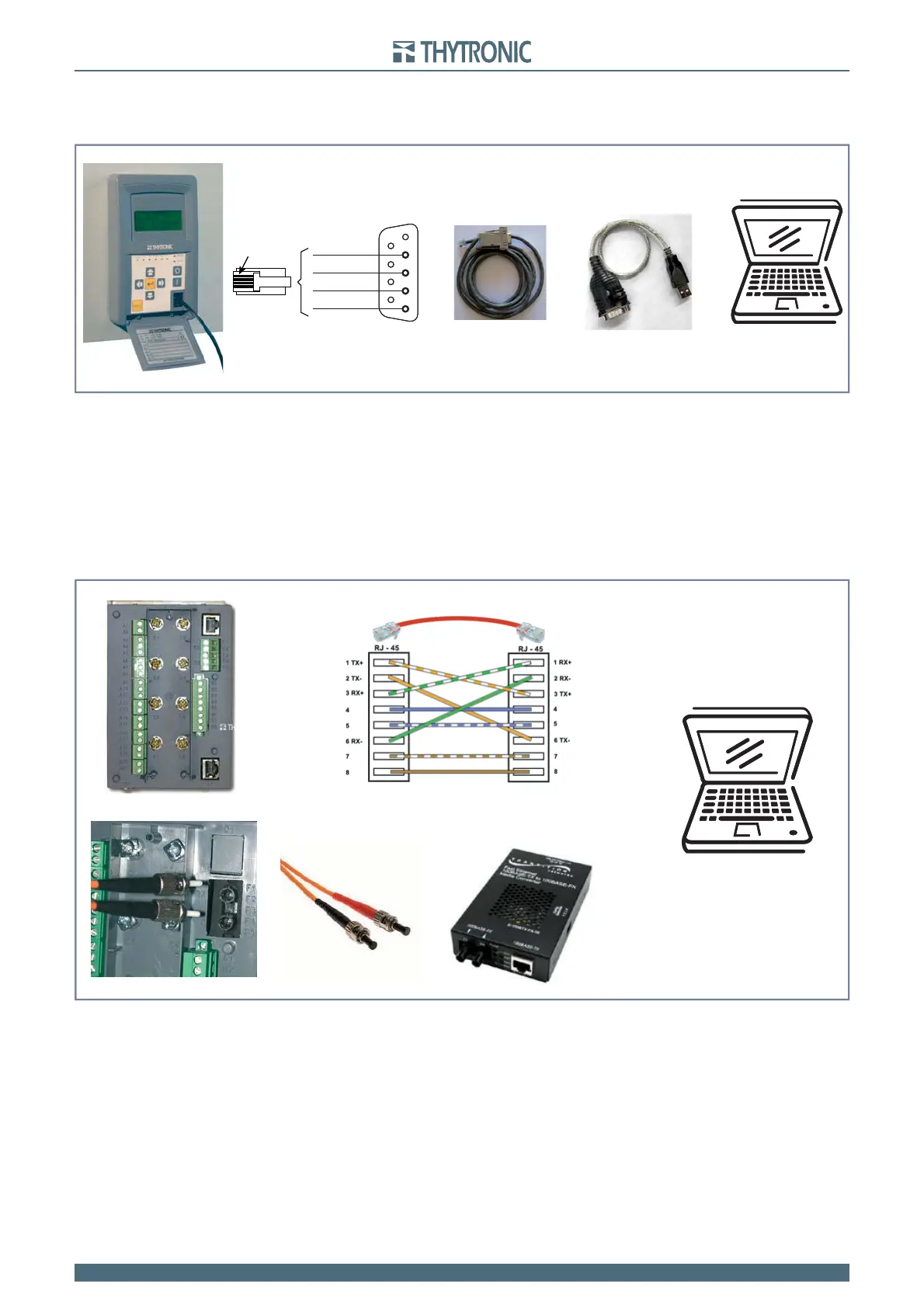

RS232 port
The link from PC and NA11 serial port must be established by means a L10041 cable.
The RS232 port takes priority over other communication links (Ethernet or RS485 port).
When no RS232 port is available on Personal Computer, a suitable USB to RS232 converter must be
employed.
After installation, the same communication port must be selected to defi ne the Thysetter parameters
(typically COM4, COM5,...).
Ethernet port
A RJ45 or FX optics fi ber is provided.
An Ethernet port may be provided with RJ45 or FX optics fi ber interface.
For testing a PC may be directly connect to the NA11 Ethernet port on the rear side.
With TX interface a cross cable must be employed, while an Ethernet-optical fi ber converter, suit-
able for 100 Mb data rate must be employed if an FX port is implemented.
The link must be enabled by means ThySetter sw and RS232 connection:
Set the IP address (Host IP address e IP net mask) in order that the NA11 and PC parameters
are matched; the parameters are inside the Communication \ Ethernet submenu.
Set to OFF the Autonegotiation parameter of NA11 device (Autonegotiation parameter inside
Communication \ Ethernet submenu).
For security reasons, a change of the Ethernet communication parameters become active only after
an hw reset.
•
•
serial1-sch.ai
L10041
Male connector
USB-RS232 converter
(if none RS232 PC port is available)
TXD
RXD
DTR
GND
4
3
1
2
1
2
3
4
6
7
8
9
5
RJ10 Connector
Pin1
serial1-sch.ai
L10041
Male connector
USB-RS232 converter
(if none RS232 PC port is available)
TXD
RXD
DTR
GND
4
3
1
2
1
2
3
4
6
7
8
9
5
RJ10 Connector
Pin1
ethernet-wiring.ai
cross cable
ethernet-wiring.ai
cross cable
