FUNCTION CHARACTERISTICS
31
4 FUNCTION CHARACTERISTICS
4.1 HARDWARE

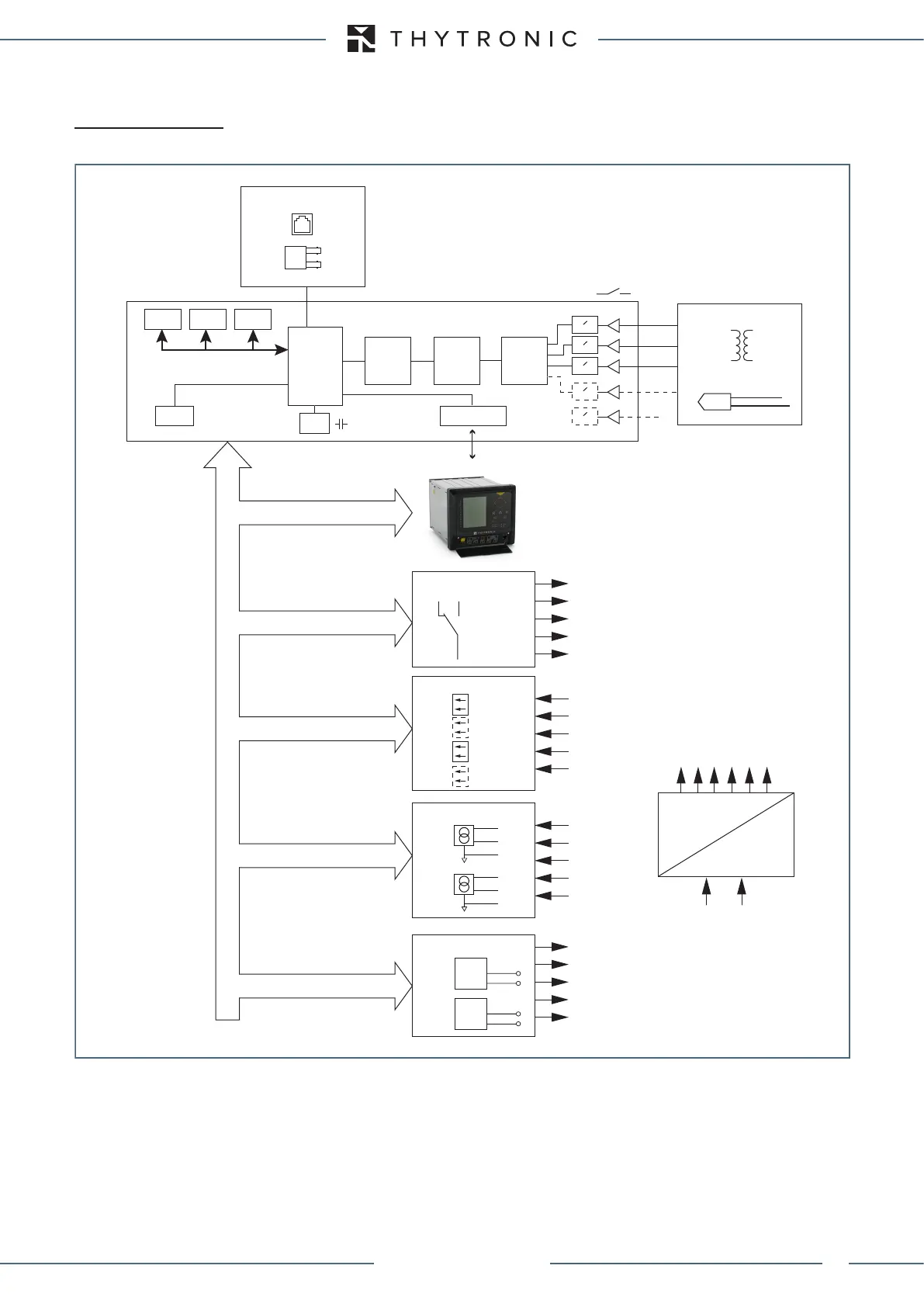

Device layout
Power supply board
All the components necessary for conversion and stabilization functions are present.
Two versions are envisaged suited to the input ranges 24...110 V and 110...230 V.
The circuit provides stabilized voltages required for the analogue measurement,for relays and for
supplying the digital circuits.
CPU module
This circuit board contains all the circuits necessary for performing the analogue and digital proces-
sing of the signals.
hw.ai
RTC
EEprom Flash
RS485
RS232-Ethernet
SRam
CPU
ETHERNET
CPU
INPUT MODULE
CTs - VTs
ThySensor
OUTPUT RELAYS
DSP ADC
1A/5A
Min. 7
Max. 31
Analog outputs
BINARY INPUTS
Uaux
Pt100
POWER SUPPLY
+3ю3 V
+10 V
0 V
+24 V
-10 V
+5 V
FPGA
I
PT1
MPT1
T1
PT8
MPT8
T8
MIS-1
-
+
# / ∩
MIS-4
-
+
# / ∩
Min. 7
Max. 53
XMR-T EQUIPMENT MANUAL
Ed. 2.9 - 02/2021
