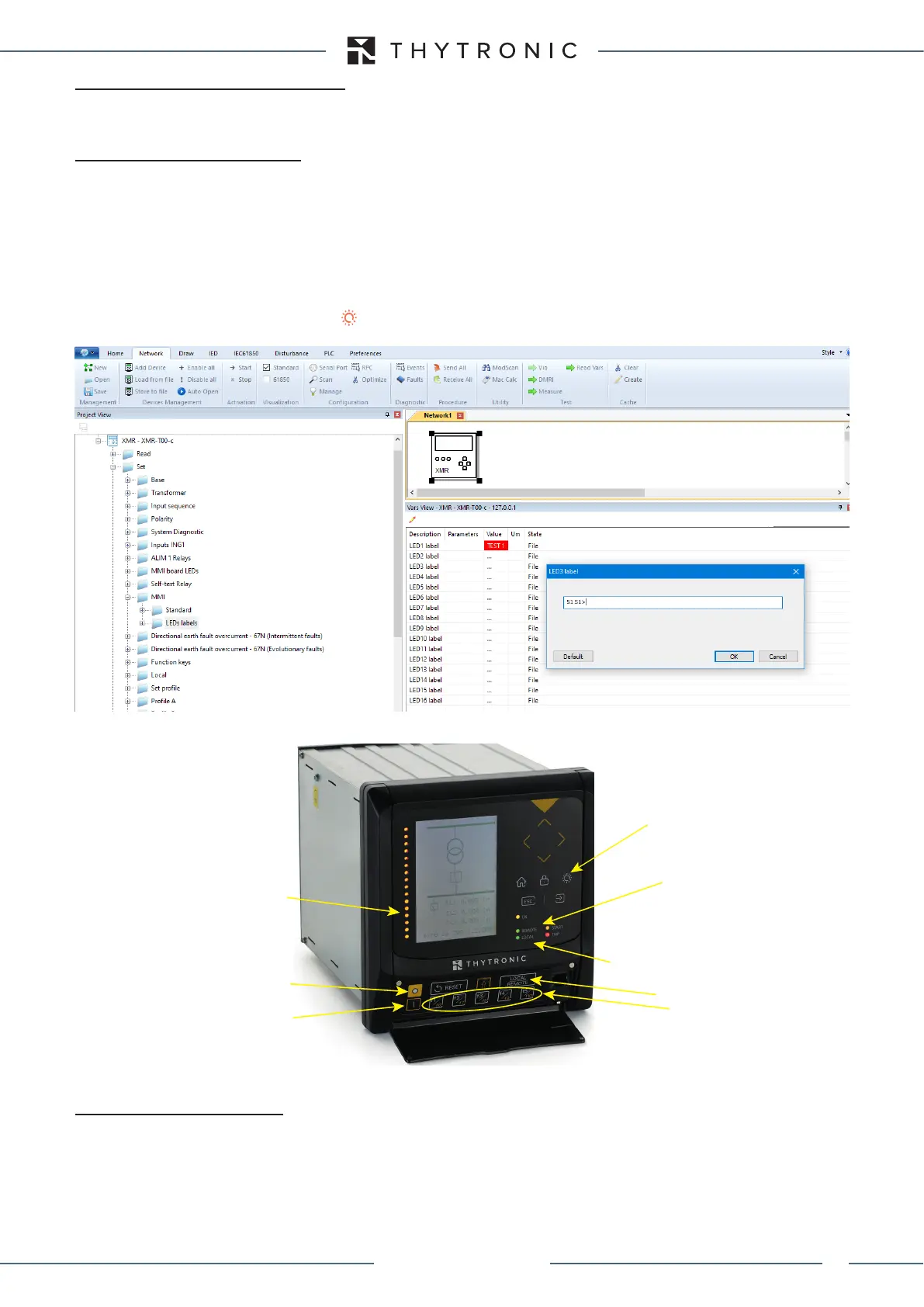

INSTALLATION
185
6.4 RATED In AND Ien SETTINGS
The values of the relay rated current can be set to 1 A or 5 A via ThyVisor sw; parameters are avai-
lable in the Set \ Base menu.
6.5 LED COMMISSIONING
Following indicator LEDs are available on the front panel:
LED ON (green): if no diagnostic anomalies are detected, the green LED is turned ON while any
fault is highlighted by flashing
LED START (yellow) committed for start information of any protective functions
LED TRIP (red) committed for trip information of any protective functions
LED 1...16 (Programmable RED, GREEN, YELLOW) are freely assignable from the user to any
protective and/or control functions.
A relevant description can be associated with each Led via ThyVisor and by Display Led Label
key presents on touch-screen keyboard it is possible recall all Led descriptions.
6.6 FINAL OPERATIONS
Before energizing the electric board, it is advisable to check that:
The auxiliary voltage must be comprise in XMR-x relays operative range
The rated current (1 A or 5 A) of the line CT’s corresponds to XMR-x relays set values
All wirings are correct
All screws are tightly screwed
LED1-1...LED1-16
User Programmable
ON & Diagnostic
Start
Trip
OPEN CB
CLOSED CB
ON & Diagnostic
Start
Trip
LOCAL
REMOTE
f1 ÷ f10
Accelerator keys
Display LED Label
LOCAL
REMOTE
VISUAL INDICATION
XMR-T EQUIPMENT MANUAL
Ed. 2.9 - 02/2021
