Page 10
Burner module.
Unpack the burner
module.
Secure the control knob
assembly to the gas valve, the
screw tail should secure onto
the flat on the gas valve
spindle.
Offer the burner module
into the stove and connect the
thermal switch leads to the
tags mid way along the
thermocouple.

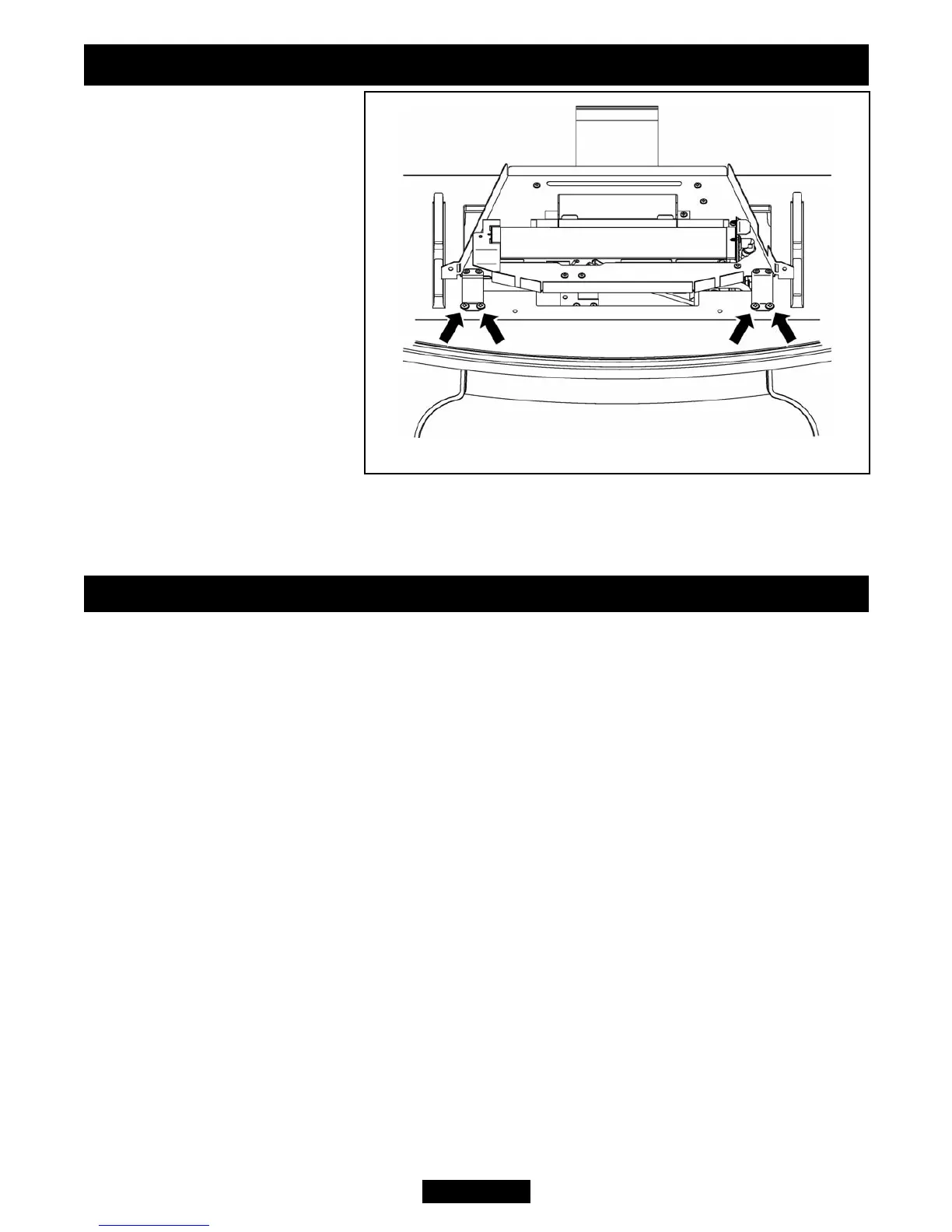

Locate the burner
assembly inside the stove
body as in figure 5 (The outer
body of the stove is not shown for clarity). The rear leg of the burner should sit in the
recess at the rear of the casting and on top of the two lugs that protrude. Secure
using the screws supplied.
5. GENERAL INSTALLATION REQUIREMENTS
Regulations, Standards and Law.
The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with all the relevant
parts of local regulations.
BS 5440 Part 1
BS 5440 Part 2
BS 4543 Part 2
BS 5871 Part 1
BS 6891
BS 8303
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
Figure 5.
