Tiger 944 - Thermal Switch

Thermal switch.
The Thermal Switch should be fitted to the inside of the Diverter Box as in figure 4.
Secure using the nut and bolt supplied. Never modify the fixing bracket and always
ensure that the switch is fitted correctly. NEVER USE THE STOVE IF THE THERMAL
SAFETY SWITCH HAS BEEN REMOVED OR IF IT IS DAMAGED IN ANY WAY.
Page 9
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

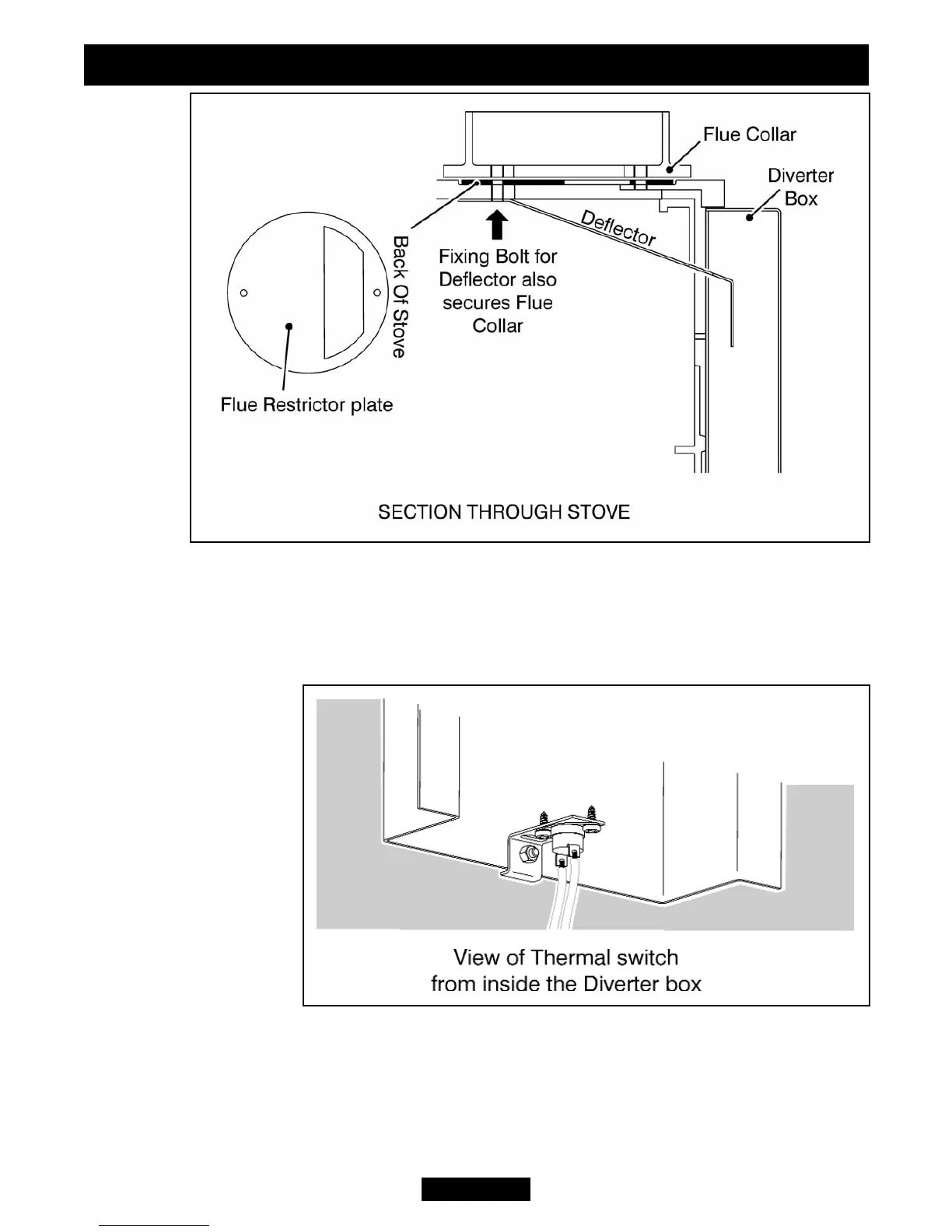

Figure 3.
