4. STOVE SET UP
Standard Legs and front cover (See figure 2).
Locate the four leg securing studs into
the four holes in the base of the body.
Locate the four legs to the underside
of the casting body. There are two feet
with holes in the base. We recommend
that these be placed at the rear of the
stove. Note: If lying the stove on its top it
is advisable to remove the door before
hand as it is not designed to stay in place
when inverted.
Place the front cover plate on top of
the front legs.
Secure the legs and front cover to the
underside of the casting body using the
nuts and washers supplied. The bolts
should have the locking washer added first
followed by the flat washer. The legs are
fitted with height adjustment bolts that are
to be used for levelling purposes only.
Flue Collar, Deflector, Diverter Box and Flue Restrictor Plate.
This appliance is supplied with a flue restrictor for use where the flue draught is
excessive. There may however, be certain circumstances where fitting the restrictor
causes the fire to fail the spillage test. In such cases the restrictor will have to be
removed. After removal conduct the spillage check again.
The Flue Collar, Deflector, Diverter Box and Flue Restrictor Plate should be
assembled to the stove as in figure 3. We recommend that the rear bolt is fitted first
for ease. The front bolt that secures the deflector must be tight and the top of the
deflector MUST be sealed against the top of the stove casting.
Page 8
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE

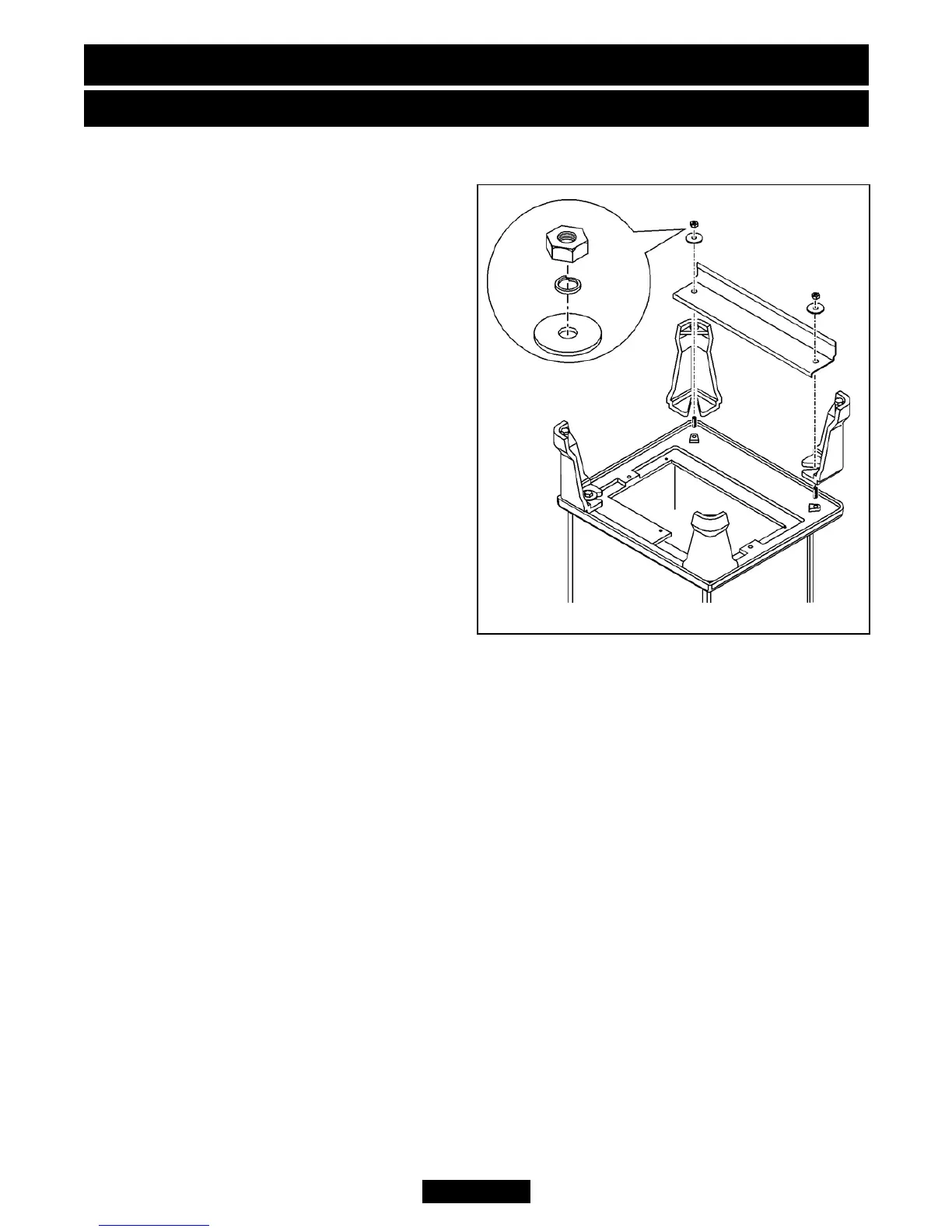

Figure 2.
