ASSEMBLY
Assembly Section 2-16
TEMPERATURE GAUGE MOUNTING (OPTIONAL)
Mount the temperature gauge where it is clearly visible to the operator. Attach the green (-)
wire from the negative post on the gauge to a grounded bolt on the tractor frame. Remove paint

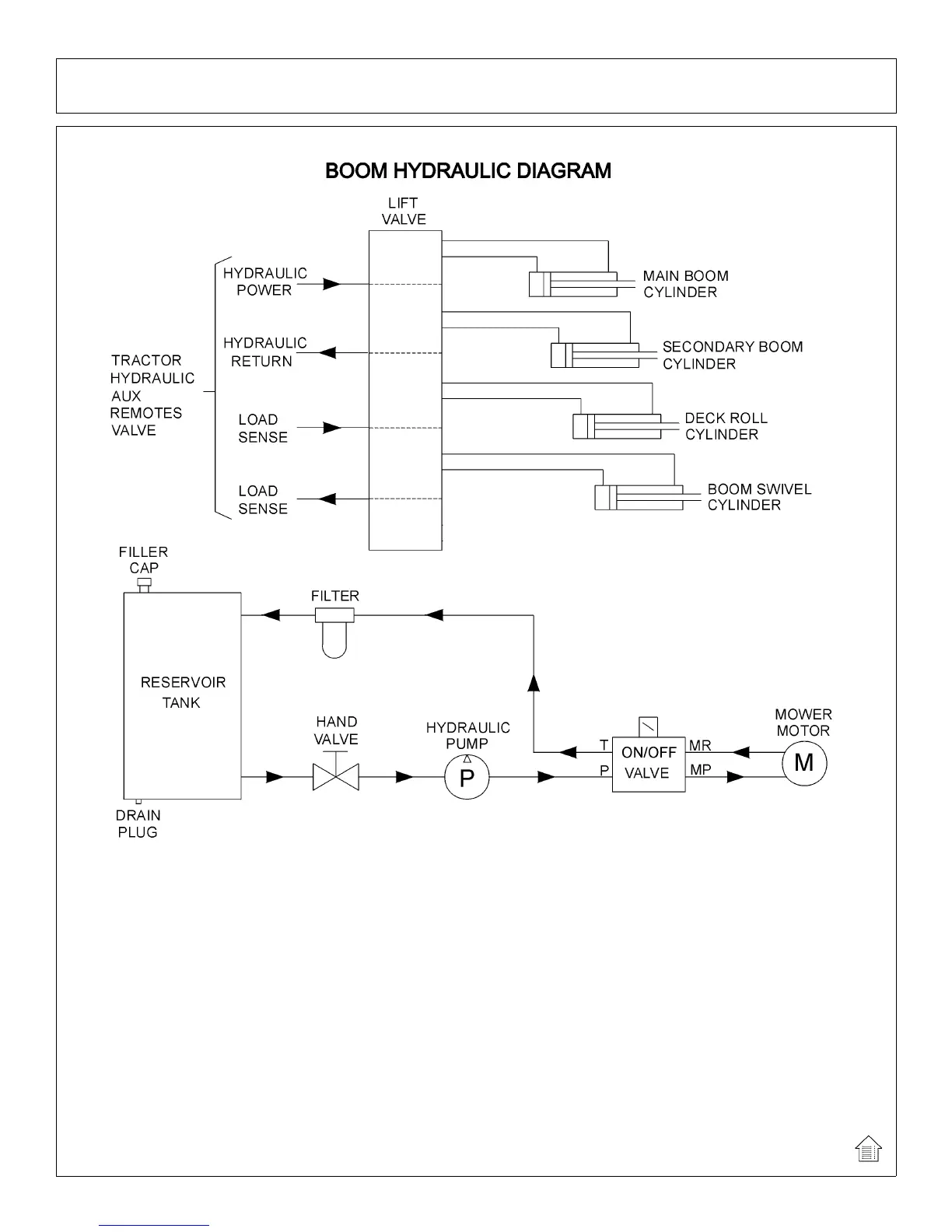

if needed to make a good ground. Remove the pipe plug from the side of the hydraulic reservoir
and install the temperature sensor using thread sealing tape. Run the white wire from the (s)
sensor post of the gauge to the temperature sensor on the hydraulic reservoir tank.
(ASM-C-0051)
