saves battery power. This setting can be used if you want to avoid that a burglar is able to locate the
motion detector in the dark.
4. If both switches are in the “Off” position, as shown in Figure 2, the PIR sensor will respect a 5-
minute interval between 2 different signals, nor will the LED window flash.
Low-voltage Reminder: The indicator light will be continuously on when the voltage of the PIR is
lower than 2.4V unless its light has been switched off by setting the internal switches.

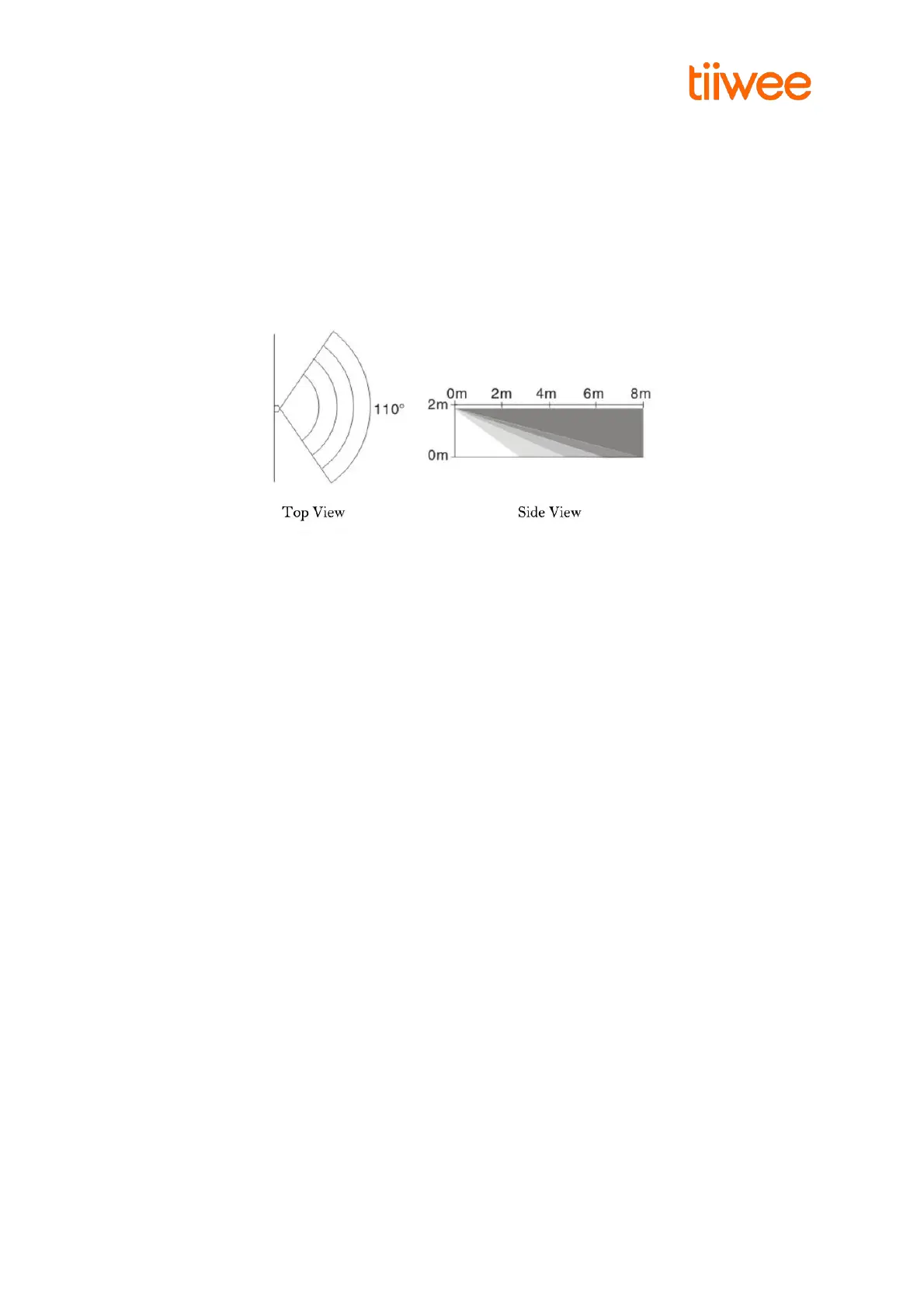

Detection Range Characteristics
Technical Features
Power: The PIR sensor is powered through 3 x AAA 1.5V alkaline batteries or by an external 5V/1A DC
power supply connected through the micro-USB port. The batteries can stay inside the sensor while
the external power supply is connected and in use. They will work as a power backup in case of 220V
power failure. The power adaptor is not included with the product.
Specifications
Trade name: tiiwee PIR sensor 02
FCC ID: 2BAP8TWPIR02
Standby Current: <50uA
Working Current:<20mA
Detecting Range: 4-8 m/110 degrees angle
Wireless Distance: 100m ( Open Area )
Wireless Frequency: 433MHz
Housing Material: ABS
Working Humidity: <80%
Detector Size: 106x67x45mm
FCC compliance statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Warning: changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
