TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TAF-550 Installation & Operating Instructions TiL 96RE187 Rev D
2-5

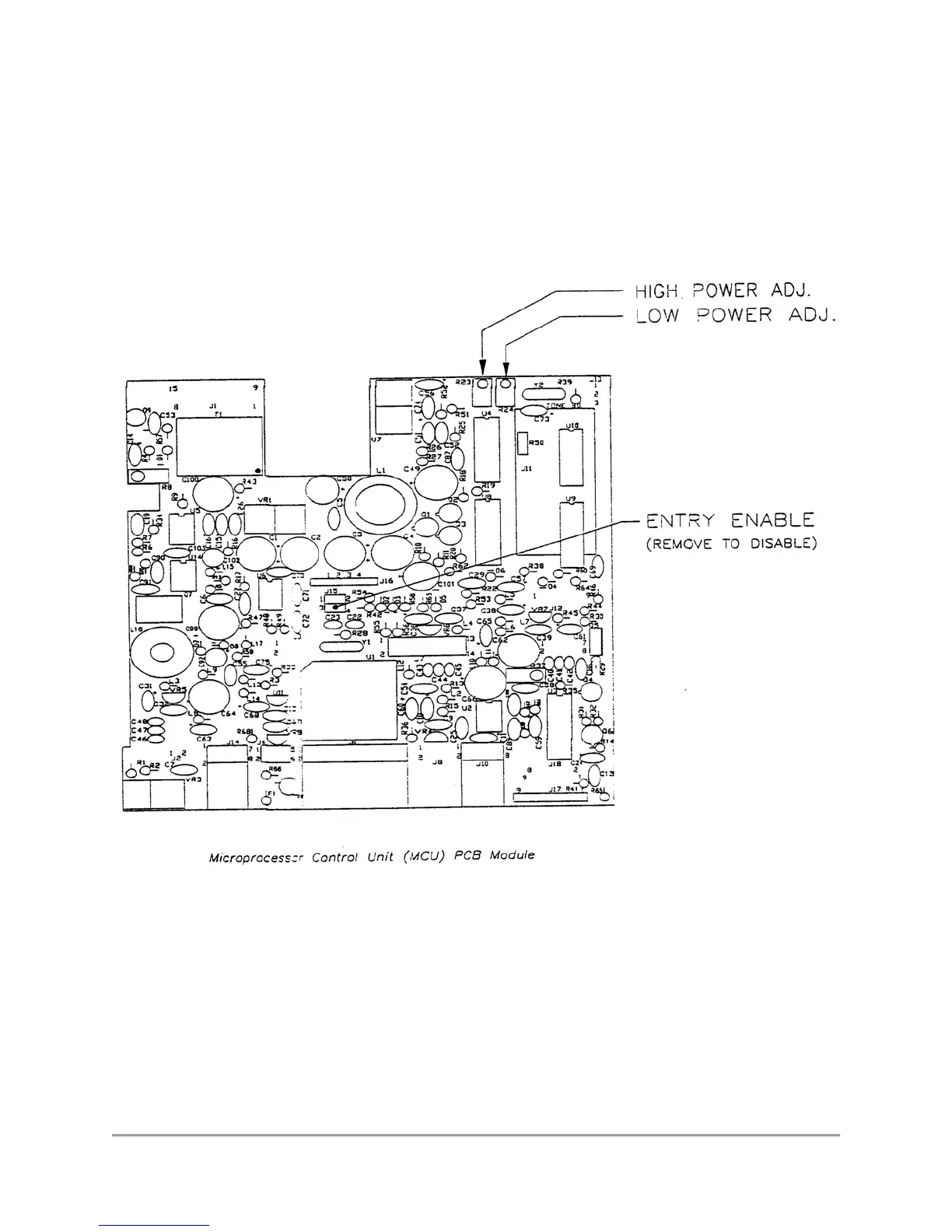

Figure 2.2 Internal Enable/Disable Jumper and Transmit High/Low Power Adjust Locations
