TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TAF-550 Installation & Operating Instructions TiL 96RE187 Rev D
2-8
Notes: R30 is for 5.0 KHz (wideband) Deviation Adjustment
R76 is for 2.5 KHz (narrowband) Deviation Adjustment

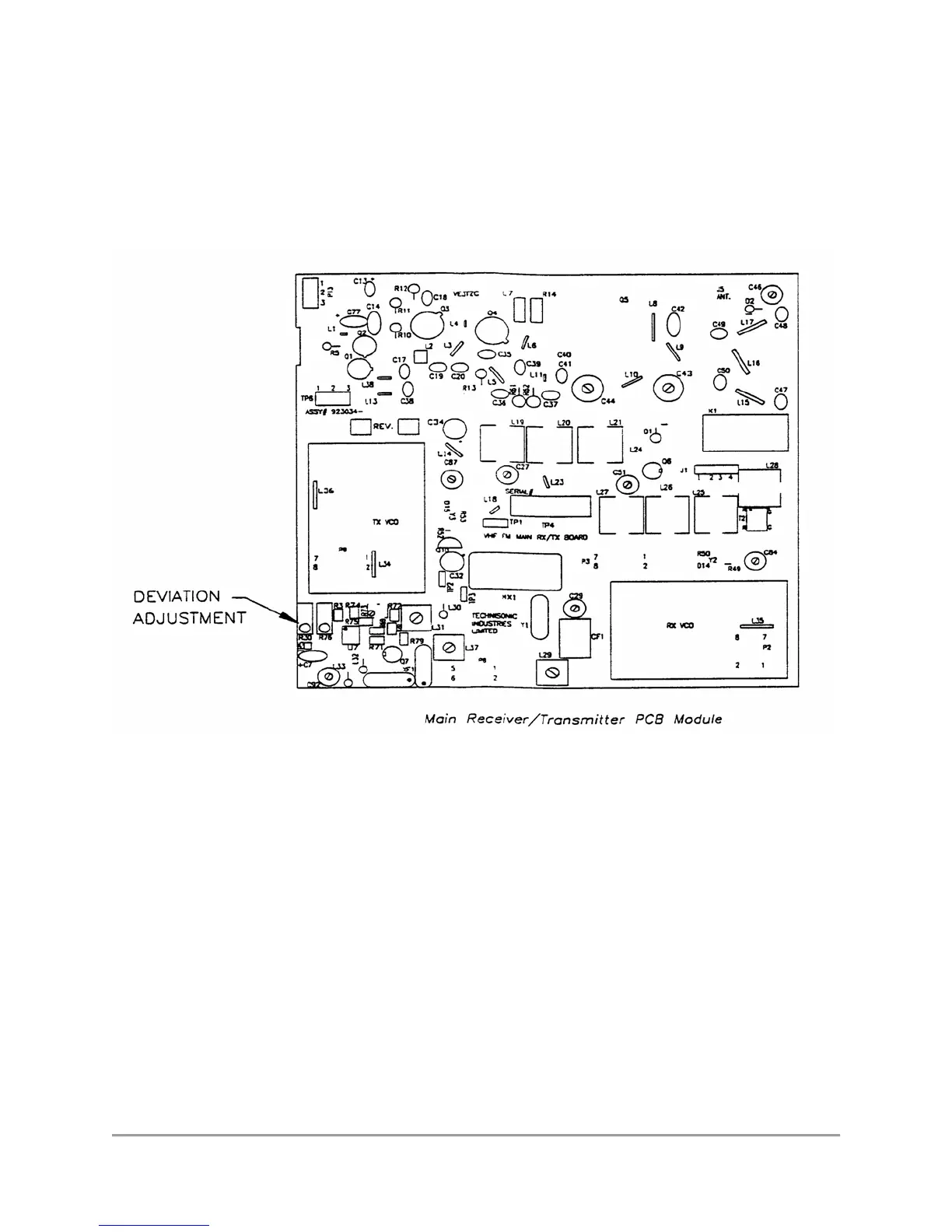

FIGURE 2.4 Deviation Adjustment Potentiometer Location
