Timberk T-PAC07-P09E User Manual

IM2019
8

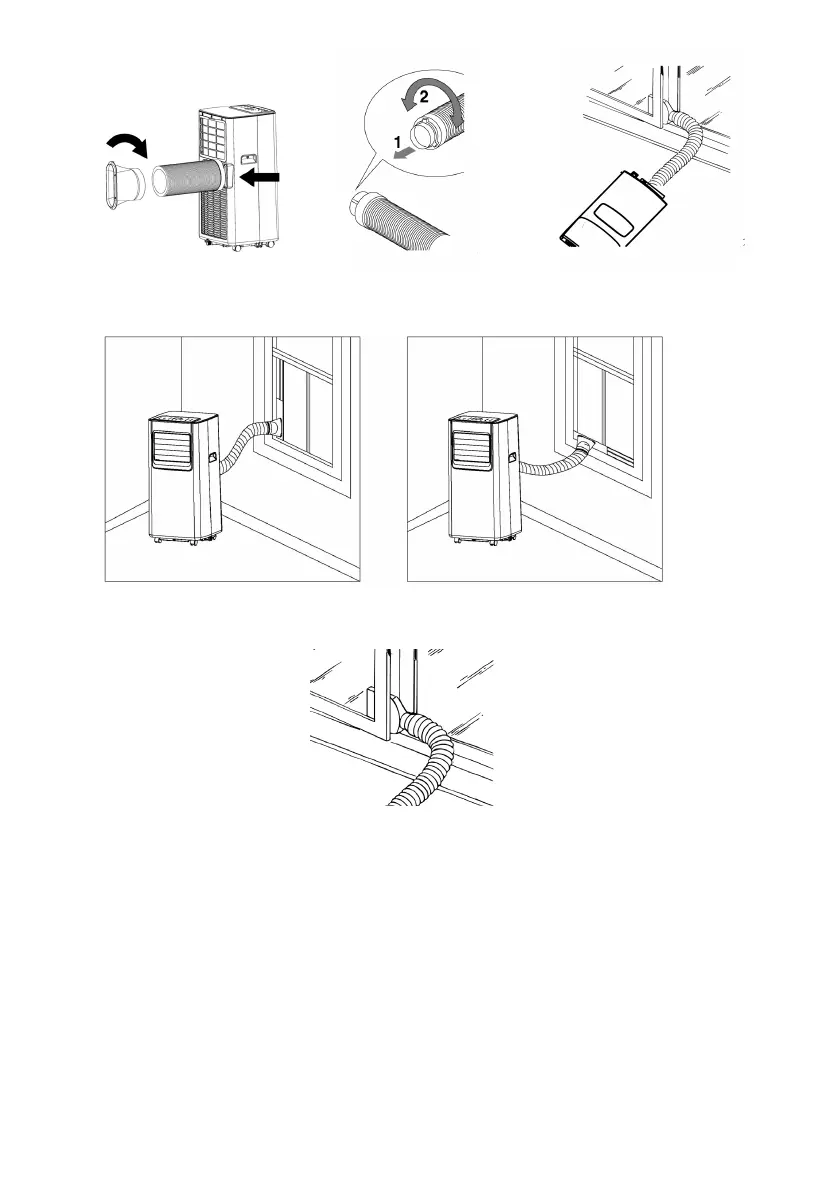

Fig. 6 Fig. 7 Fig. 8
Fig. 9
Fig. 10
If you have a sash (window):
1. Place the bracket on the windowsill
2. Extend the bracket fully within the window frame
3. Fix the bracket by using the pin
4. Lower the window into the bracket
5. Insert the window outlet of the exhaust hose into the slot
6. Connect the hose to the air conditioner (Fig. 9)

Timberk T-PAC07-P09E Specifications

General

Brand	Timberk
Model	T-PAC07-P09E
Category	Air Conditioner
Language	English
