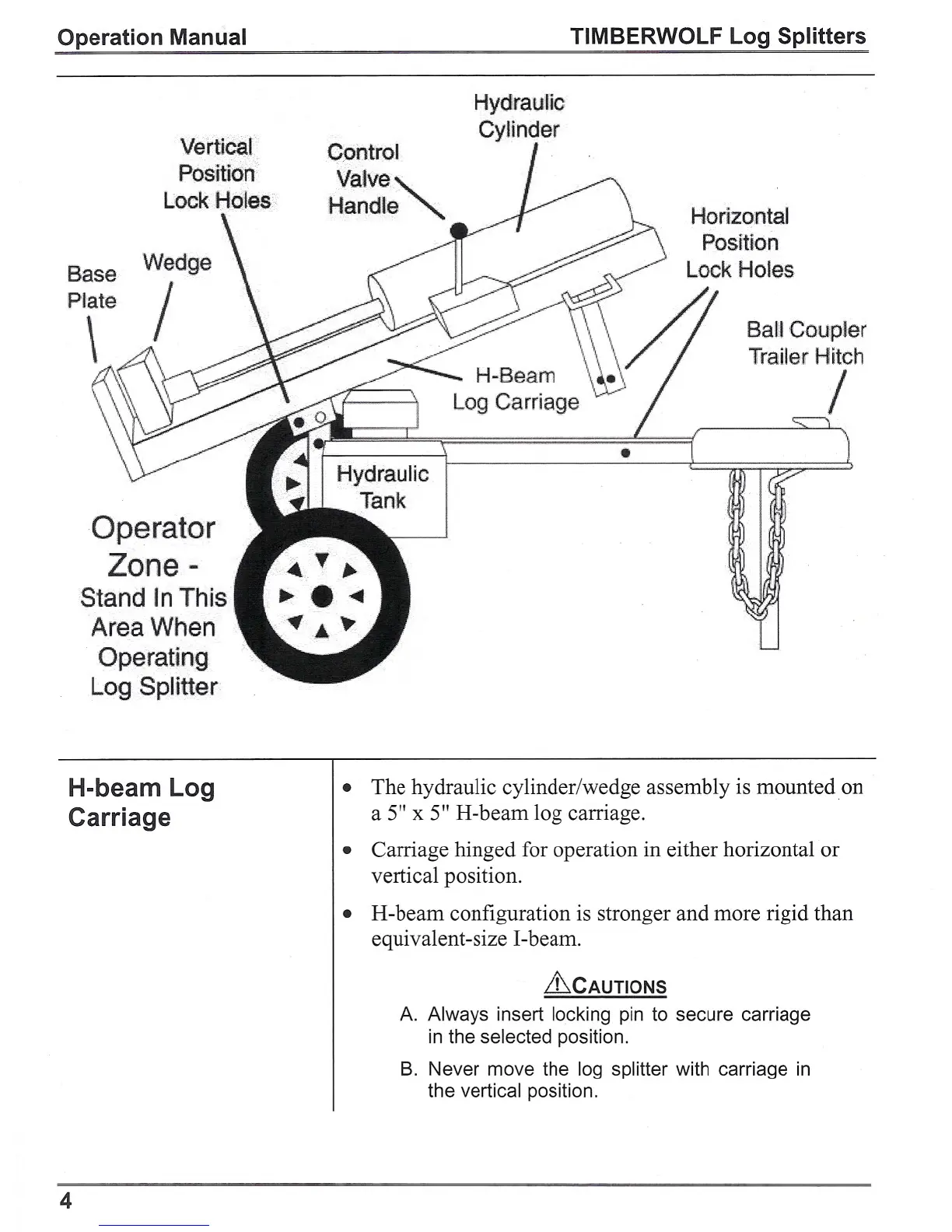

Timberwolf TW-HV2 - H-Beam Log Carriage

Operation Manual
TIMBERWOLF Log Splitters
Vertical
Position
Lock Holes:
Base
Operator
Zone -
Stand In This
Area When
Operating
Log Splitter
Cpntrol
l:~:e'
Hydraulic
Cylinder
Horizontal
H-beam Log
Carriage
4
• The hydraulic cylinder/wedge assembly is mounted.on
a 5" x 5" H-beam log carriage.
• Carriage hinged for operation in either horizontal or
vertical position.
• H-beam configuration is stronger and more rigid than
equivalent-size I-beam.
&CAUTIONS
A. Always insert locking pin to secure carriage
in the selected position.
B. Never move the log splitter with carriage in
the vertical position.
