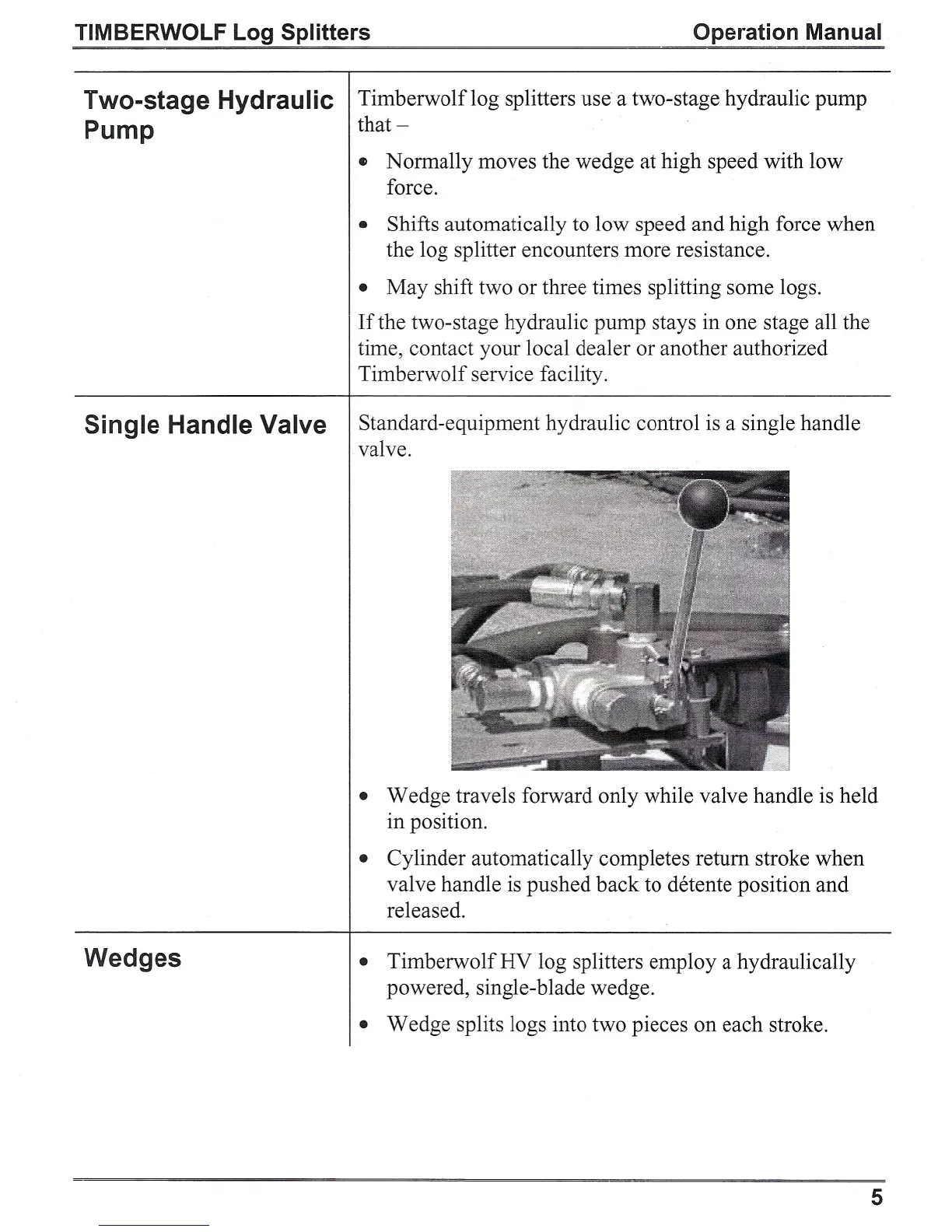

TIMBERWOLF Log Splitters
Operation Manual
Two-stage Hydraulic
Pump
Timberwolf log splitters use a two-stage hydraulic pump
that -
e Normally moves the wedge at high speed with low
force.
• Shifts automatically to low speed and high force when
the log splitter encounters more resistance.
• 1vIayshift two or three times splitting some logs.
If the two-stage hydraulic pump stays in one stage all the
time, contact your local dealer or another authorized
Timberwolf service facility.
Single Handle Valve I Standard-equipment hydraulic control is a single handle
valve.
• Wedge travels forward only while valve handle is held
in position.
• Cylinder automatically completes return stroke when
valve handle is pushed back to detente position and
released.
Wedges
• Timberwolf BV log splitters employ a hydraulically
powered, single-blade wedge.
• Wedge splits logs into two pieces on each stroke.
5
