The TW 190TDHBA chipper has the ability to adjust the towhead height to correspond with the
vehicles towing point.
The preferred towing angle of any chipper is with the
chassis level to the ground. The adjustable head has
the ability to move between 300mm from the ground
to 875mm giving an overall adjustment of 575mm.
The towhead latch and handbrake fundamentally
work the same as a fixed standard towhead, however
the front section of the head is retained in position via
a locking ring and single clamp handle.
To adjust the height the locking handle located on the
side of the head (1) is turned in an anticlockwise
direction to allow for the locking ring to disengage
from its apposing ring. An internal damper is fitter to
support the heads weight allowing both hands free to
adjust the height. Once the desired height has been
achieved the locking handle is turned clockwise until
tight. The latching of the hitch is as normal as is the fitting of the light plug and breakaway cable as
outlined in the ‘Hitching onto the tow ball’ section on page 9.
1
Engine type Kubota 4-cylinder turbo diesel
Maximum power 33kW (45hp)
Cooling method Water cooled
Overall weight 1150kg
Starting method Electric
Roller feed Twin series hydraulic motors
Maximum diameter material 190mm (7½")
Fuel capacity 50 litres
Hydraulic oil capacity 15 litres
Material processing capacity up to 6.5 tonnes/hr
Fuel type Diesel
TIMBERWOLF
TW 190TDHB

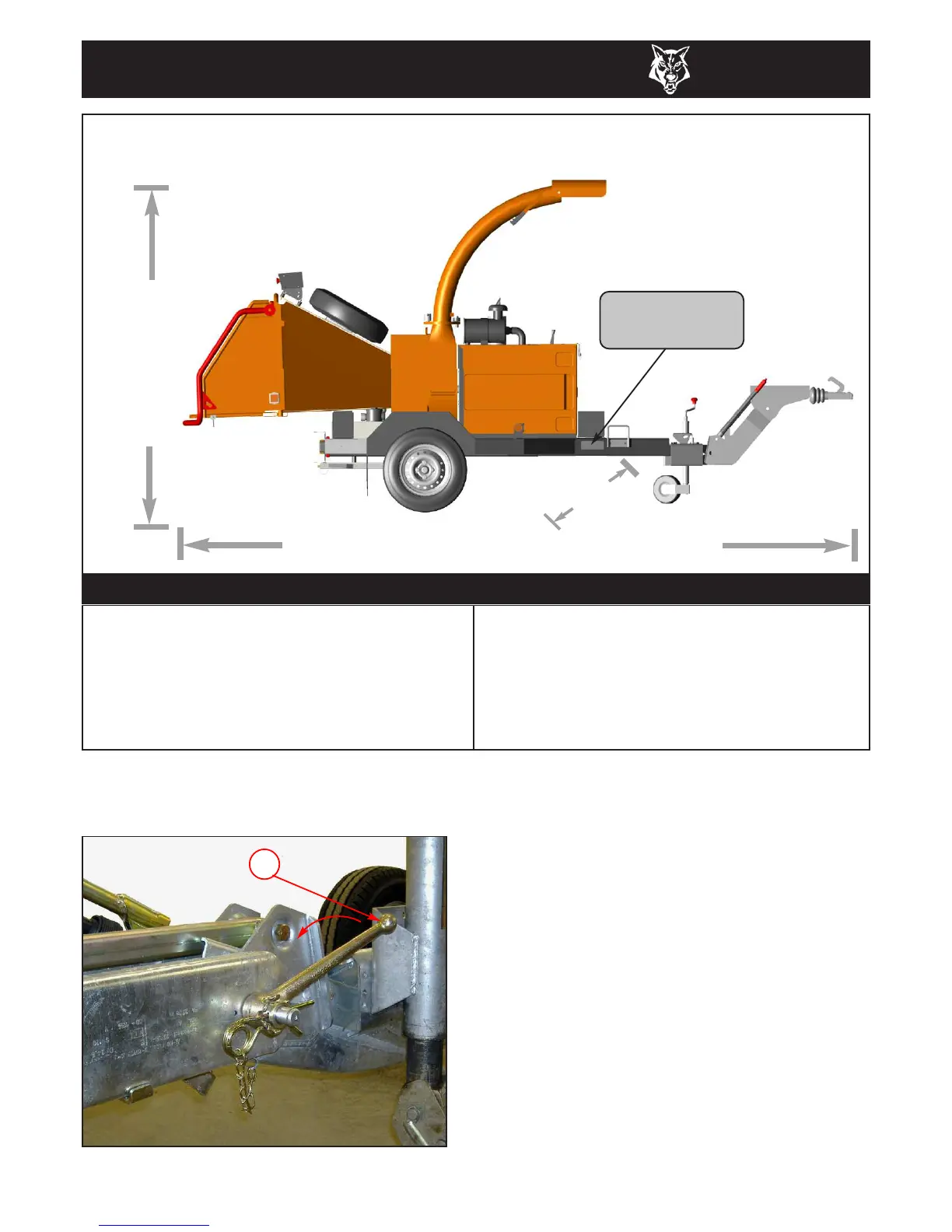

DIMENSIONS - WITH ADJUSTABLE TOWHEAD
TIMBERWOLF TW 190TDHBA (ADJUSTABLE TOWHEAD) SPECIFICATION
Serial No. Location
The serial number can be
found on the identification plate
located on the chassis beam.
ADJUSTING THE TOWHEAD HEIGHT
4900mm with adjustable tow head (4280mm with feed tray folded)
15
1
0m
m
2310 mm, (1300 mm with
discharge removed)
